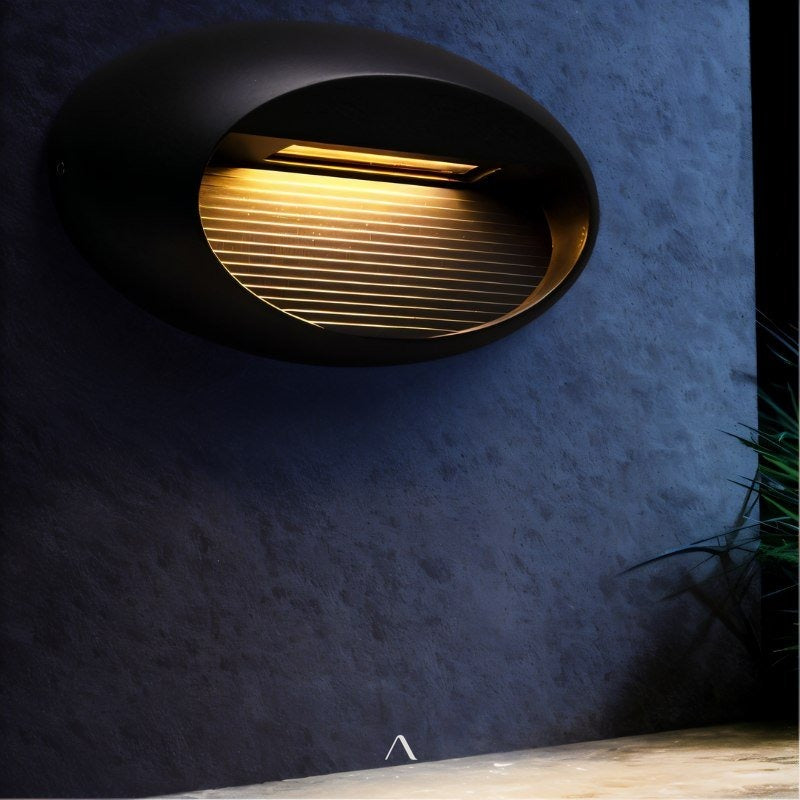

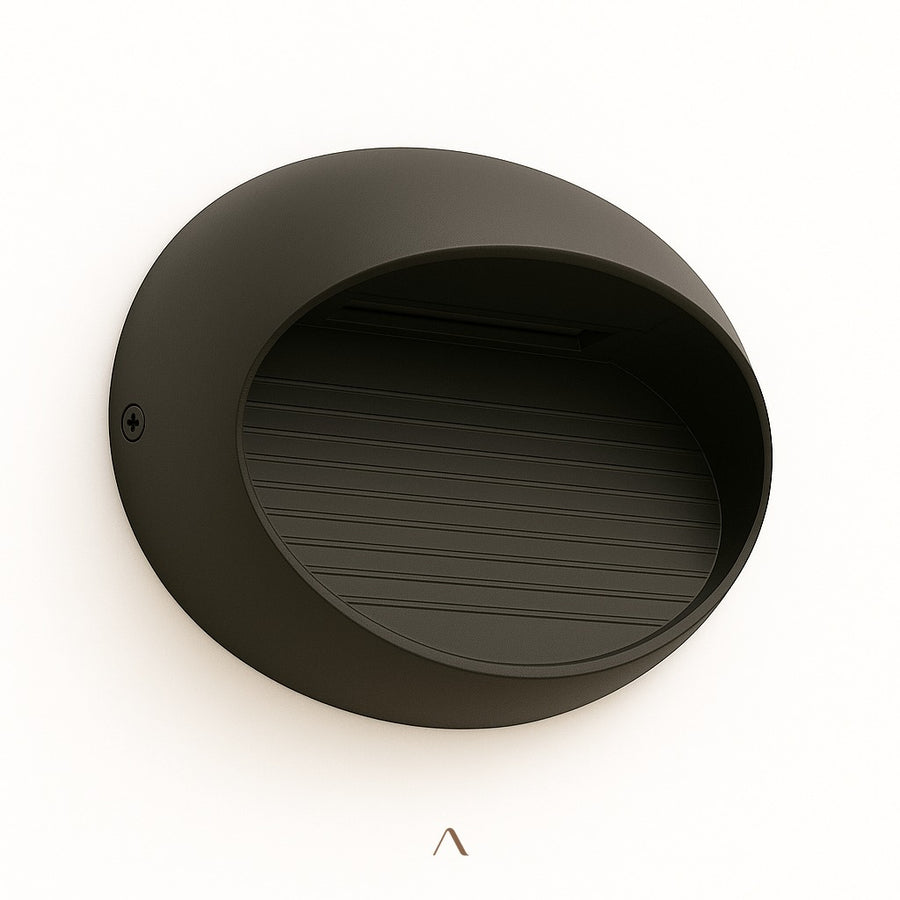

Wittelsheim Step Lamp

• Elevates evening security with sophisticated illumination
• Perfectly complements contemporary architectural aesthetics
• Minimal heat generation ensures safe interaction

Product Dimensions: L10.4"(26.6cm) x H5.1"(13cm)

Wattage (Lumens): 3W (330lm)

Material: Aluminum

Finish: Black

Light Source: Integrated LED

Dimmable: No

Voltage: 90-260VAC

Installation Type: Wall Mount

Adjustable Cord: No

Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE

Overview

• Dimmer Support: Most wall lamps with replaceable bulb sockets support dimming. Built-in LED models do not. Need help choosing a compatible dimmer? Contact Us.
• Power Configuration: Depending on the model, your lamp may require hardwired installation, plug directly into an outlet, or operate on a rechargeable battery. Confirm the power type in your product details before starting.
• Mounting Approach: All wall lamps attach to the wall surface. Every order includes the necessary mounting hardware.
• Indoor & Outdoor Suitability: Many models work in both settings. Always verify that your specific model carries an outdoor rating before exterior placement.
• Dimensions: Need precise measurements not shown on the listing? We are here to help — Contact Us.

What You Will Need

• Screwdriver
• Wire connectors (included with hardwired models)
• Non-contact voltage tester
• Power drill (if mounting in a new location)

Setup Instructions

Step 1: Determine Your Power Type

Check whether your wall lamp is:

• Hardwired — Connects to household electrical wiring
• Plug-In — Connects to a wall outlet with a cord
• Rechargeable — Operates on a built-in battery, charges via included cable

For Hardwired Lamps

Step 2: Shut Off the Power

Open your home's main electrical panel and flip the appropriate breaker to the off position. Use a voltage tester to verify that no current is flowing to the work area.

Step 3: Remove the Previous Fixture (if applicable)

Detach the existing wall lamp by removing its mounting screws. Disconnect the wiring by unscrewing the wire connectors.

Step 4: Install the New Bracket

Position the included mounting plate over the junction box or your marked wall location. Drive the provided screws to anchor it firmly.

Step 5: Join the Wires

Connect the matching conductors — black (hot) to black, white (neutral) to white, and green or bare copper (ground) to ground. Twist each pair together and cap with the provided wire connectors. Fold the wires neatly into the junction box.

Step 6: Attach the Lamp Body

Slide the fixture onto the bracket and tighten the fastening screws until the lamp is secure against the wall.

Step 7: Install the Bulb (if applicable)

Place the recommended bulb type and wattage into the socket.

Step 8: Power On and Confirm

Re-energize the circuit at the breaker panel. Test the lamp to ensure it operates correctly.

For Plug-In Lamps

• Anchor the bracket to the wall using screws and wall anchors.
• Seat the fixture on the bracket and plug the cord into a nearby outlet.
• Organize the cord along the wall and secure it if desired.

For Rechargeable Lamps

• Fix the bracket to the wall using screws and anchors.
• Fully charge the lamp with the included cable before first use.
• Mount the lamp onto the bracket and power it on.

Helpful Reminders

• Comply with all local electrical codes during hardwired installations.
• If you are uncertain about any wiring step, consult a licensed electrician.
• Dust and clean your fixture periodically to maintain its appearance and performance.
