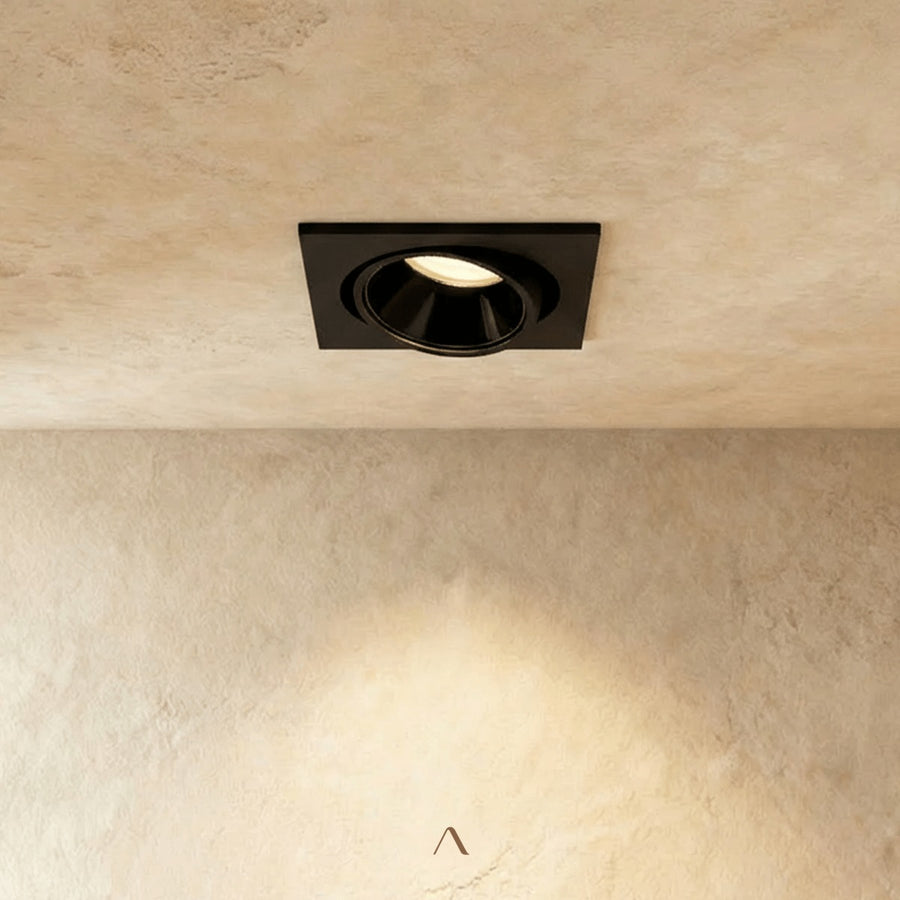

Downlight

Gram Downlight Aim it 45 degrees, single or double

$60
Standard price
$51 Member price · Save 15% Join now →
✦ Free worldwide shipping on all orders
A compact aluminium ceiling downlight with 45-degree tilt adjustment — precise task or accent light in black or white.
Size
Single Head: L3.3"(8.5cm) x H2.6"(6.5cm) / Non Dimmable / 7W
Single Head: L3.3"(8.5cm) x H2.6"(6.5cm) / Dimmable / 7W
Single Head: L3.3"(8.5cm) x H2.6"(6.5cm) / Non Dimmable / 10W
Single Head: L3.3"(8.5cm) x H2.6"(6.5cm) / Dimmable / 10W
Single Head: L3.3"(8.5cm) x H2.6"(6.5cm) / Non Dimmable / 12W
Single Head: L3.3"(8.5cm) x H2.6"(6.5cm) / Dimmable / 12W
Single Head: L3.3"(8.5cm) x H2.6"(6.5cm) / Non Dimmable / 15W
Single Head: L3.3"(8.5cm) x H2.6"(6.5cm) / Dimmable / 15W
Two Heads: L6.6"(16.8cm) x H2.6"(6.5cm) / Non Dimmable / 14W
Two Heads: L6.6"(16.8cm) x H2.6"(6.5cm) / Dimmable / 14W
Two Heads: L6.6"(16.8cm) x H2.6"(6.5cm) / Non Dimmable / 20W
Two Heads: L6.6"(16.8cm) x H2.6"(6.5cm) / Dimmable / 20W
Two Heads: L6.6"(16.8cm) x H2.6"(6.5cm) / Non Dimmable / 24W
Two Heads: L6.6"(16.8cm) x H2.6"(6.5cm) / Dimmable / 24W
Two Heads: L6.6"(16.8cm) x H2.6"(6.5cm) / Non Dimmable / 30W
Two Heads: L6.6"(16.8cm) x H2.6"(6.5cm) / Dimmable / 30W
Emitting Color
Warm White (3000K)
Neutral White (4000K)
Cool White (6000K)
Color
Black
White
Protection plan
1-Year Included
Standard coverage
2-Year +$9
Extended coverage
3-Year +$19
Premium coverage
5-Year +$29
Ultimate coverage
1
Estimated arrival by Aug 10, 2026
Free shipping1-year warranty 14-day returns Order tracking
View spec sheet (PDF)
Specifications
Material
Aluminium
Finish
Black, White
Light source
Integrated LED (included)
Single head sizes
7W / 10W / 12W / 15W (770–1650 lm), L8.5 x W8.5 x H6.5 cm
Double head sizes
14W / 20W / 24W / 30W (1540–3300 lm), L16.8 x W8.5 x H6.5 cm
Voltage
90–260V
Installation
Ceiling mount, hardwired
Adjustment
45-degree tilt
Dimmable
On request
Certifications
UL, CE, FCC, ROHS, SAA, VDE and others
The Object

Tiltedaimed exactly where needed

The Gram Downlight mounts flush to the ceiling and pivots 45 degrees, so you can direct its beam at artwork, a worktop, or a reading chair rather than lighting the room uniformly from above. Aluminium housing, integrated LED, single or double head — the double spans 16.8 cm and doubles the output without doubling the ceiling footprint.
Why you'll love it
  • 45-degree tilt adjustment — direct the beam precisely
  • Single or double head — one fixture, two output options
  • Aluminium housing, black or white — flush to any ceiling
  • Integrated LED — dimmable on request
  • Compact footprint: 8.5 x 8.5 cm per head
Details

The install depends on your mount type — trimless, recessed, semi-recessed, surface, or track — so confirm which one you have before you start.

Before you begin

  • Mounting — trimless, recessed, semi-recessed, surface-mounted, or track-mounted; confirm the type in your product listing
  • Ceilings — most models suit drywall; some also work with concrete or drop ceilings, check the technical documentation
  • Dimming — many designs dim when paired with compatible drivers and wall dimmers
  • Power — hardwired, connects directly to a ceiling electrical junction
  • Trimless — may need professional finishing or flush-mount drywall work
  • Track — installs onto a compatible rail system; check your product's specification for track type

What you'll need

  • Drill, keyhole or drywall saw (for recessed or trimless)
  • Screwdriver, voltage tester, wire stripper
  • Wire nuts (included with most fixtures), screws and wall anchors (for surface mounting)
  • Level, measuring tape or pencil

Step by step

  1. Turn off the power — at the breaker panel, and confirm with a voltage tester.
  2. Prepare the ceiling opening (recessed and trimless only) — mark your opening with the provided template and cut carefully with a drywall saw or hole cutter. Trimless models need deeper space and extra setup for a seamless finish.
  3. Install the mounting hardware or fixture housing — recessed and trimless designs insert into the ceiling cavity and secure with spring clips or fasteners (trimless may need joist framing); semi-recessed fixtures partially install per the included instructions; surface-mounted downlights attach directly with screws and wall anchors; track fixtures need a compatible track system first, then lock into place.
  4. Connect the wiring — black to black, white to white, green or bare to ground. Secure each with a wire nut and tuck neatly back into the housing or box.
  5. Final assembly — trimless fixtures get mudded and feathered into the ceiling plane before painting; recessed, semi-recessed, and surface fixtures finish by twisting or snapping the trim or body into place; track lights get positioned and rotated along the rail after locking in.
  6. Restore power and test — use the wall switch or dimmer to verify proper operation.

Good to know

  • Professional installation is recommended for trimless or recessed downlights, especially with mudding or insulation involved.
  • Follow local electrical codes and regulations.
  • Use only compatible drivers and dimmers for your fixture.
  • Keep safe spacing from insulation in ceiling cavities to prevent overheating.

Still need help? Email hey@navadecor.co.

Every order is eligible for customization. Frequently requested:

  • Adjusted hanging or suspension length
  • Custom material finish or paint color
  • Modified light emission color or temperature
  • Dimmer integration
  • Scaled dimensions — larger or smaller
  • Complete fixture redesign to your specifications
Standard shipping

Complimentary worldwide shipping to 120+ countries. Delivery within 21 business days from your order date.

Priority processing

Need it sooner? Add Priority Processing at checkout to fast-track manufacturing — approximately 10–20 business days to delivery.

Returns

14 days from receipt to initiate a return. A 20% restocking fee applies to returns or exchanges not due to defect or damage. To start a return, email .

A standard 1-year manufacturer warranty is included. Extend to 2, 3, or 5 years total coverage at checkout.

Protection coverage
  • Manufacturing defects — faults in materials or workmanship
  • Electrical issues — electrical component failures under normal use
  • Finish defects — premature flaking, pitting or discoloration
  • Not covered — accidental or physical damage, moisture and corrosion, normal wear and tear, and light bulbs
Simple claims process
  1. Contact our support team via email.
  2. Provide your order details and a description of the issue.
  3. Receive a decision within 48 hours. If approved, we ship a replacement at no cost to you.
How it works

45-degree arclight follows the angle

The tilt mechanism sits inside the housing so the pivot point is at the ceiling rather than projecting downward. This keeps the fixture flush against the ceiling regardless of angle, making it effective in rooms where a track light would feel too industrial. The aluminium body is cool to the touch during operation.

Innovative engineering · intelligent design
Three engineering features behind the flush, directional form.
Precise aim

45-degree tilt directs each head to artwork, a work surface, or a seating area.

Single or double

One or two heads from a single ceiling mount — choose based on the area to light.

Flush form

Aluminium housing sits close to the ceiling — clean in rooms where track would read heavy.

In a few words
45-degree tiltSingle or doubleBlack or whiteFlush mountDimmable optionIntegrated LED
Frequently asked

The housing is aluminium — lightweight, durable, and cool to the touch during operation. Aluminium also dissipates heat from the integrated LED effectively, which contributes to the LED's long service life.

Yes — black and white. Both are consistent across the housing and ceiling plate. Black suits contemporary and industrial interiors; white blends into lighter ceilings for a less visible fixture when the light is off.

Yes — each head pivots up to 45 degrees from vertical. This lets you direct the beam at a specific surface, object, or area rather than lighting from directly overhead. The adjustment is simple — reposition by hand.

Yes, on request — configure it at checkout and the fixture ships dimmer-compatible. It works with a standard wall dimmer switch. Dimming down also extends the integrated LED's lifespan under daily use.

The integrated LED is set at a fixed colour temperature from the factory. If you require a specific colour temperature — warm white (2700–3000K), neutral (4000K), or daylight (5000–6500K) — contact us before ordering and we'll advise on available options.

Living rooms, kitchens, hallways, offices, and commercial spaces. The directional capability makes it particularly effective for accent lighting over artwork or architectural features, and for task lighting over kitchen worktops or desks.

90–260V — compatible with residential and commercial electrical systems worldwide. No transformer or adaptor is needed for standard ceiling installation in North America, Europe, Australia, or most other regions.

An integrated LED — built into the aluminium housing. No separate bulb is needed and none is user-replaceable. The integrated design keeps the fixture compact and ensures a clean flush appearance at the ceiling.

Integrated LEDs are among the most energy-efficient light sources available. The single-head version delivers 1650 lm at 15W — equivalent task light to older 100W incandescents at around 15% of the energy draw.

If you want precise directional light in a flush, minimal housing — without the visual weight of a track system — the Gram is the right choice. The 45-degree tilt covers most accent and task lighting angles from a single ceiling mount.
