Escherndorf Pendant Light

• Graceful curved framework delivers architectural elegance
• Translucent shade eliminates harsh shadows beautifully
• Perfectly suited for contemporary and transitional aesthetics

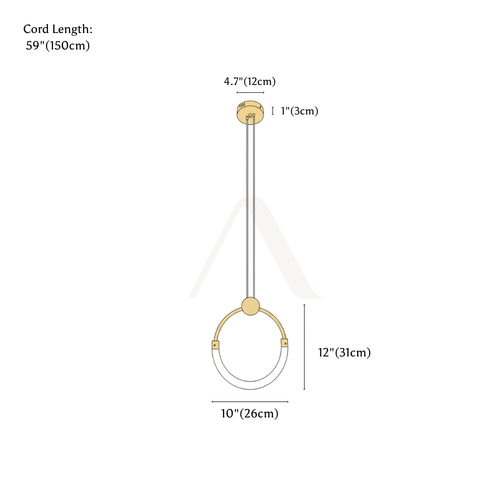

Product Dimensions: D10.2"(26cm) x H12.2"(31cm)

Wattage (Lumens): 12W (1320lm)

Material: Acrylic, Metal

Finish: Gold

Light Source: Integrated LED

Dimmable: Upon Request

Voltage: 90-260VAC

Installation Type: Hardwired

Chain/Cord Length: Up to 4.9ft (1.5 meter)

Sloped Ceiling Compatible?: Yes

Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE

Overview

• Fixture Mounting: Every fixture in this collection mounts to the ceiling via a standard electrical junction box. Each unit ships with the required mounting bracket and hardware.
• Dimmer Compatibility: Fixtures that accept standard screw-in bulbs work with most wall dimmers. Models with built-in LEDs do not support dimming. Questions about dimmer pairing? Contact Us.
• Suspension Length: The standard cord, chain, or rod measures 47" (1.2m). If you need a different drop length, we are happy to accommodate — Contact Us.
• Ceiling Compatibility: All models install on flat ceilings. Most also accommodate sloped or angled ceilings — confirm in the product specifications.
• Electrical Supply: These fixtures require a hardwired connection to your household electrical system.
• Measurements: For any dimensions not listed on the product page, reach out to our team — Contact Us.

What You Will Need

• Screwdriver
• Non-contact voltage tester
• Wire stripper
• Wire connectors (included)
• Step ladder
• Drill (only if installing a new junction box or working with a non-standard ceiling)

Setup Instructions

Step 1: Disconnect the Power

Locate your home's electrical panel and turn off the breaker that controls the installation area. Confirm the circuit is dead using a non-contact voltage tester before handling any wiring.

Step 2: Secure the Mounting Bracket

Fasten the included ceiling bracket to the junction box with the provided screws. Verify that the bracket is firmly attached and perfectly level.

Step 3: Set Your Preferred Drop Height

Before making any electrical connections, adjust the cord, chain, or rod to your desired hanging length. Lock the height in place through the canopy adjustment mechanism.

Step 4: Complete the Wiring

Pair the fixture leads with the corresponding ceiling wires:

• Black (hot) to black
• White (neutral) to white
• Green or bare copper (ground) to the ground wire or grounding screw

Fasten each pair with a wire connector and carefully tuck the completed connections into the junction box.

Step 5: Mount the Fixture Body

Position the canopy or ceiling plate against the bracket. Attach it using the supplied screws or locking caps, confirming that the fixture rests evenly and securely against the ceiling.

Step 6: Insert the Bulbs

Install bulbs that match the type and wattage specified for your fixture. When using dimmable bulbs, verify they are compatible with your dimmer switch.

Step 7: Restore Power and Verify

Return to the breaker panel and re-energize the circuit. Operate the wall switch to confirm the fixture illuminates correctly.

Helpful Reminders

• Observe all applicable local electrical codes throughout the installation process.
• For elevated ceilings, angled mounting surfaces, or complex setups, engage a licensed electrician.
• Wipe the fixture periodically with a soft, dry cloth to preserve its finish.
• Take care not to over-torque screws, particularly on decorative elements.

Questions?

Our team is available to help with technical inquiries or custom requests.
Email: hey@navadecor.co

Every order is eligible for customization by our skilled in-house team.

Frequently Requested Modifications

• Adjusted hanging or suspension length
• Custom material finish or paint color
• Modified light emission color or temperature
• Dimmer integration
• Scaled dimensions (larger or smaller)
• Complete fixture redesign based on your specifications
