Brouay Downlight

$70.00

Protect your investment

See All Benefits

1 Year Extended Warranty

Estimated arrival: , Order within

Why you'll love it
  • Elegant profile enhances sophisticated interiors.
  • Effortless installation maximizes convenience.
  • Dependable operation in challenging environments.

Product Specifications

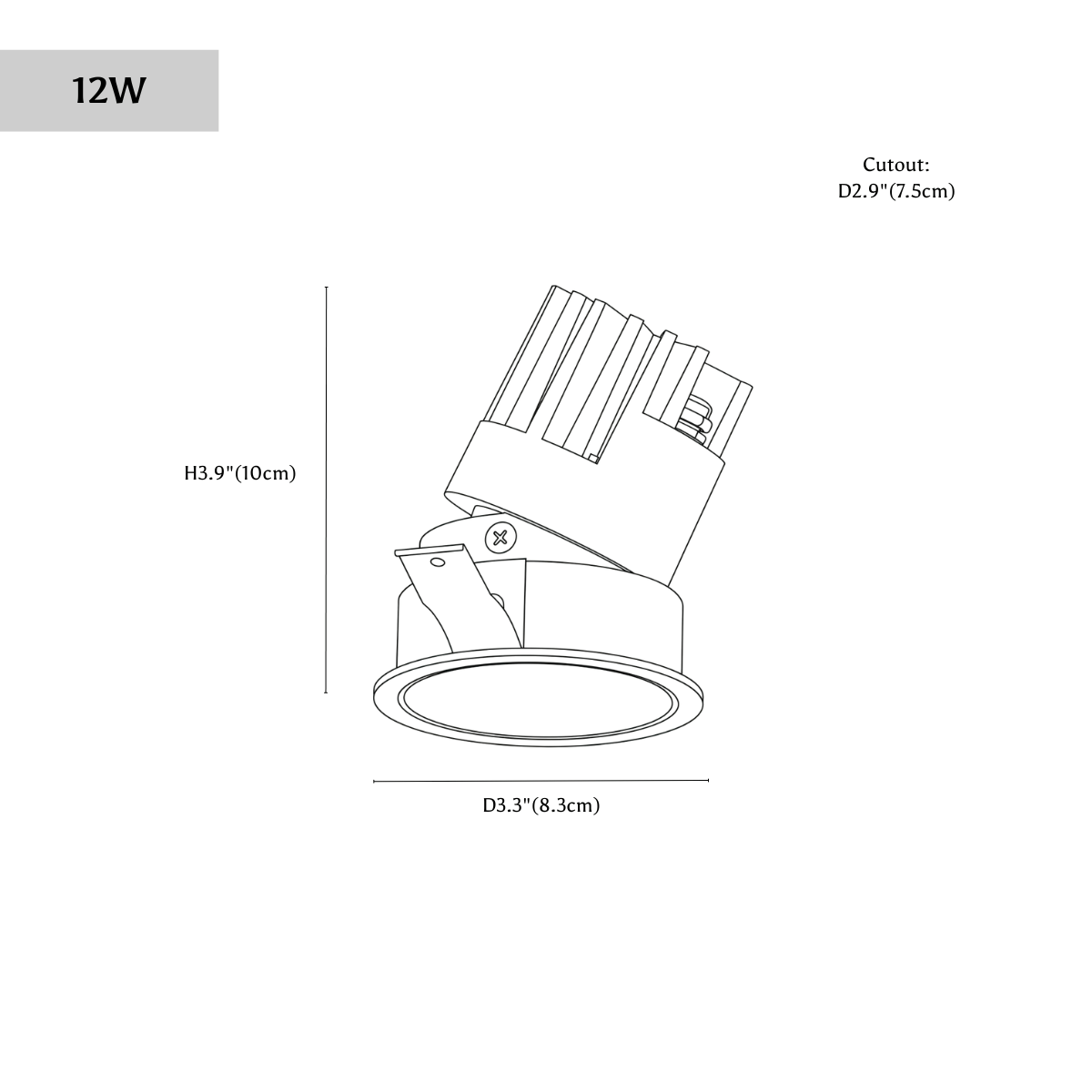

Product Dimensions: D3.3"(8.3cm) x H3.9"(10cm) | Cutout: D2.9"(7.5cm)

Wattage (Lumens): 12W (1320lm)

Weight: 0.7lbs

Material: Aluminum Trim, Plastic Reflector

Finish: Black, White, Grey

Light Source: Bridgelux COB

Dimmable: Yes (Optional)

Voltage: AC120-277V

Power Factor: >0.9

CRI: >90Ra

IP Rating: IP65

Beam Angle: 15°/ 24°/ 36°/ 50°

Lifespan: 50,000Hrs

Warranty: 3 Years

Installation Type: Hardwired

Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE

Installation Guide
Overview
  • Available Mounting Formats: Downlights come in trimless, recessed, semi-recessed, surface-mounted, and track-mounted configurations. Confirm your model's mounting type on the product listing before you begin.
  • Ceiling Compatibility: Most models are designed for drywall ceilings. Certain models also work with concrete or drop-tile ceilings — refer to the technical documentation for guidance.
  • Dimmer Support: Many downlights are dimmable when paired with a compatible driver and wall dimmer.
  • Electrical Connection: All models are hardwired and connect directly to a ceiling electrical junction.
  • Trimless Finishing: Trimless downlights may call for professional-grade drywall finishing or flush-mount plastering techniques.
  • Track System Compatibility: Track-mounted options install onto a compatible rail system. Check your product specifications for the correct track type.
What You Will Need
  • Drill
  • Keyhole or drywall saw (for recessed and trimless installations)
  • Screwdriver
  • Non-contact voltage tester
  • Wire stripper
  • Wire connectors (included with most fixtures)
  • Screws and wall anchors (for surface-mounted units)
  • Level
  • Measuring tape and pencil
Setup Instructions

Step 1: Disconnect the Power

At the breaker panel, switch off the circuit that serves the installation location. Verify with a voltage tester that no current is present before starting work.

Step 2: Prepare the Ceiling Opening (Recessed & Trimless Only)

If the fixture requires a ceiling cutout, use the included template to mark the opening. Cut precisely with a drywall saw or hole cutter. Trimless models may need additional depth in the ceiling cavity and extra preparation for a seamless finish.

Step 3: Install the Housing or Mounting Hardware

  • Recessed and trimless models: Insert the housing into the ceiling cavity and lock it in place with spring clips or fasteners. Trimless versions may require joist bracing for secure support.
  • Semi-recessed models: Partially set the fixture into the ceiling and fasten according to the included instructions.
  • Surface-mounted models: Attach the fixture directly to the ceiling surface or an existing junction box using screws and wall anchors.
  • Track-mounted models: Install a compatible track rail first. Then snap or lock the fixture into position on the track.

Step 4: Complete the Wiring

Pair the fixture leads with the ceiling wires:

  • Black to black (hot)
  • White to white (neutral)
  • Green or bare copper to the ground wire

Fasten each connection with a wire connector and tuck the wires neatly into the housing or junction box.

Step 5: Finish the Assembly

  • Trimless models: Apply joint compound around the perimeter and feather it smooth. Sand and paint for a seamless ceiling finish.
  • Recessed, semi-recessed, and surface models: Snap or twist the trim ring or fixture body into its final position.
  • Track-mounted models: Position and rotate each fixture head along the rail to your preferred angle after locking it onto the track.

Step 6: Restore Power and Verify

Return to the breaker panel and re-energize the circuit. Operate the wall switch or dimmer to confirm the downlight is functioning properly.

Helpful Reminders
  • Hiring an electrician is recommended for trimless and recessed downlights, especially when drywall finishing or insulation work is involved.
  • Observe all local electrical codes and regulations during the installation.
  • Use only the drivers and dimmers specified for your fixture to ensure safe, reliable dimming.
  • Maintain adequate clearance from insulation material in the ceiling cavity to prevent heat buildup.
Questions?

Our team is available to assist with custom configurations or technical inquiries.
Email: hey@navadecor.co

Make it your own

Every order is eligible for customization by our skilled in-house team.

Frequently Requested Modifications
  • Adjusted hanging or suspension length
  • Custom material finish or paint color
  • Modified light emission color or temperature
  • Dimmer integration
  • Scaled dimensions (larger or smaller)
  • Complete fixture redesign based on your specifications

Shipping Time & Returns

We are thrilled to offer shipping worldwide to over 120 countries, ensuring that wherever you are, we can deliver to your doorstep.

Standard Shipping:
Enjoy complimentary standard shipping on all orders! Expect delivery within 15-21 business days from the date of your order.

Priority Processing:
Need your items sooner? Opt for our Priority Processing option at checkout. With Priority Processing, we'll fast-track the manufacturing process of your lighting fixture. Your order will skip the line, resulting in shipping times of approximately 10-20 business days from the date of your order to delivery at your doorstep.

Return Policy:

We want you to love your purchase, which is why we offer a hassle-free return policy. If for any reason you're not completely satisfied with your order, you have 14 days from the date of receipt to initiate a return.

  • Please note that a 20% restocking fee will be applied to any merchandise returned or exchanged that is not due to manufacturer defects or damage.
  • To request a refund or initiate a return, simply email our returns team at hey@navadecor.co. For more details, please review our complete Return Policy.
Brouay - Premium IP65 Directional Downlight With Customizable Beam Settings

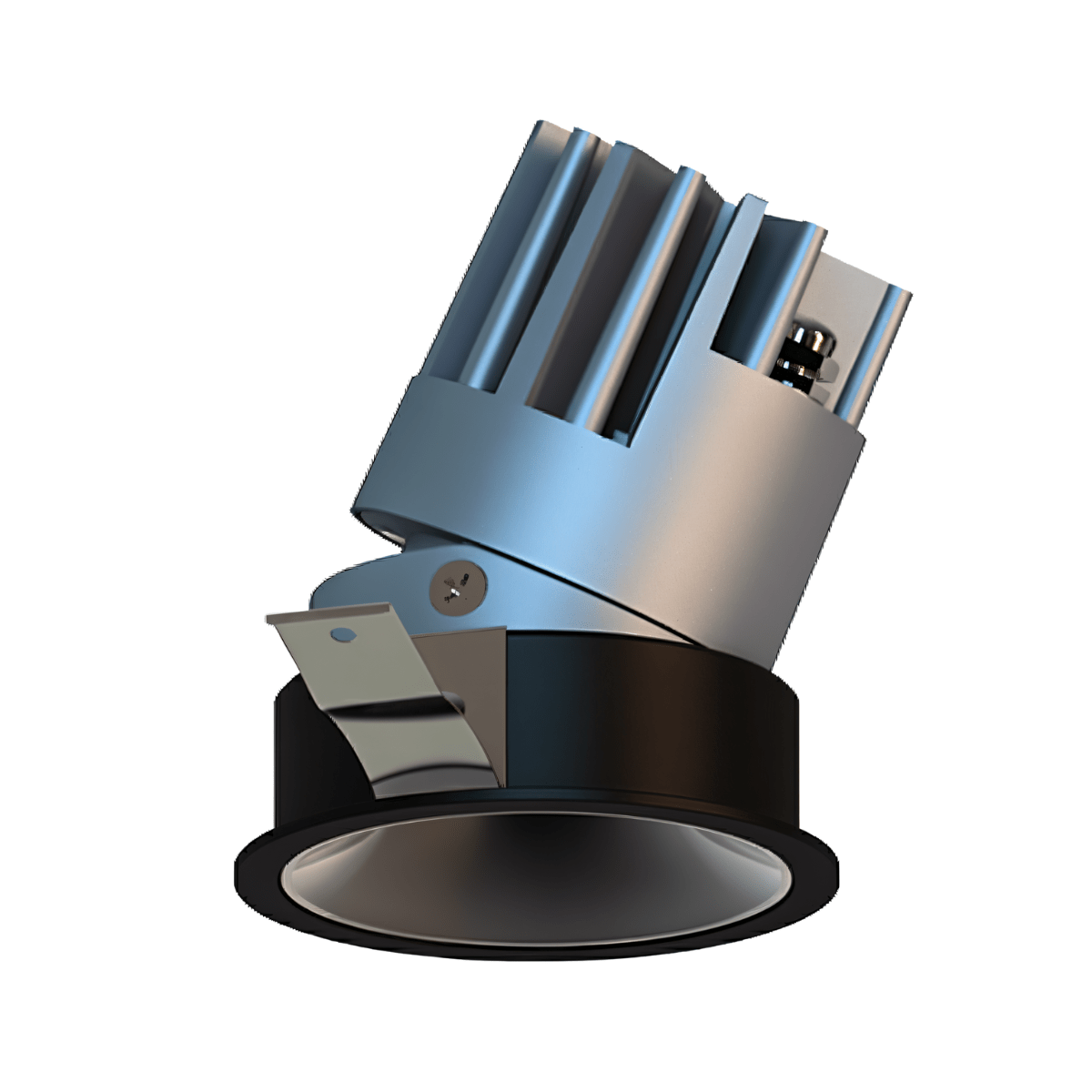

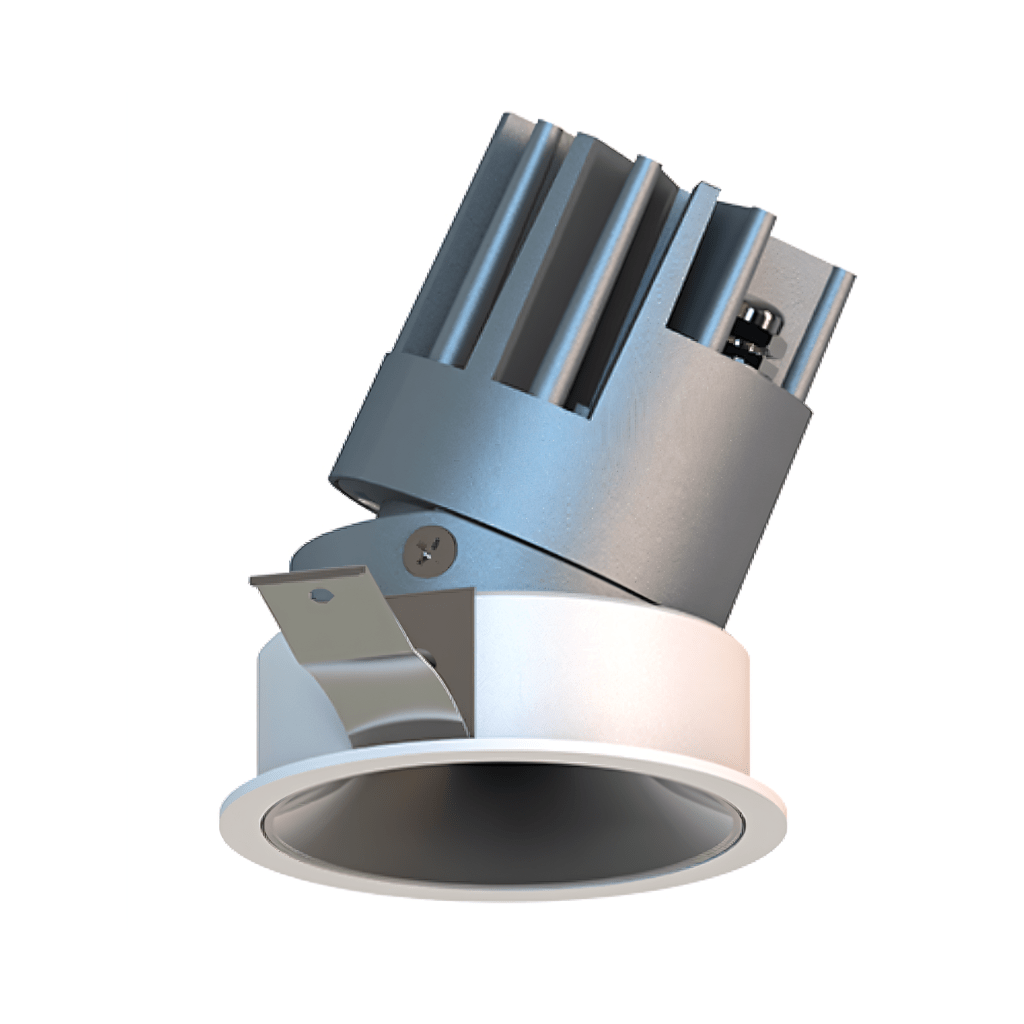

The Brouay Downlight represents exceptional engineering excellence with its IP65-certified construction featuring premium aluminium and advanced polymer materials with integrated thermal management fins. The recessed reflector system eliminates harsh glare while the pivoting directional mechanism enables precise beam positioning, perfect for angled installations and sloped surfaces. Offering selectable beam configurations, this fixture creates sophisticated, adaptable lighting solutions for discerning residential and commercial environments.

DISCOVER THE EXCELLENCE:

  • Pivoting directional control positions illumination with surgical precision.
  • IP65 certification delivers superior defense against environmental elements.
  • Selectable beam configurations offer tailored lighting for diverse environments.
  • Premium aluminium and polymer construction ensures enduring reliability.
  • Recessed reflector technology eliminates glare for refined, targeted illumination.

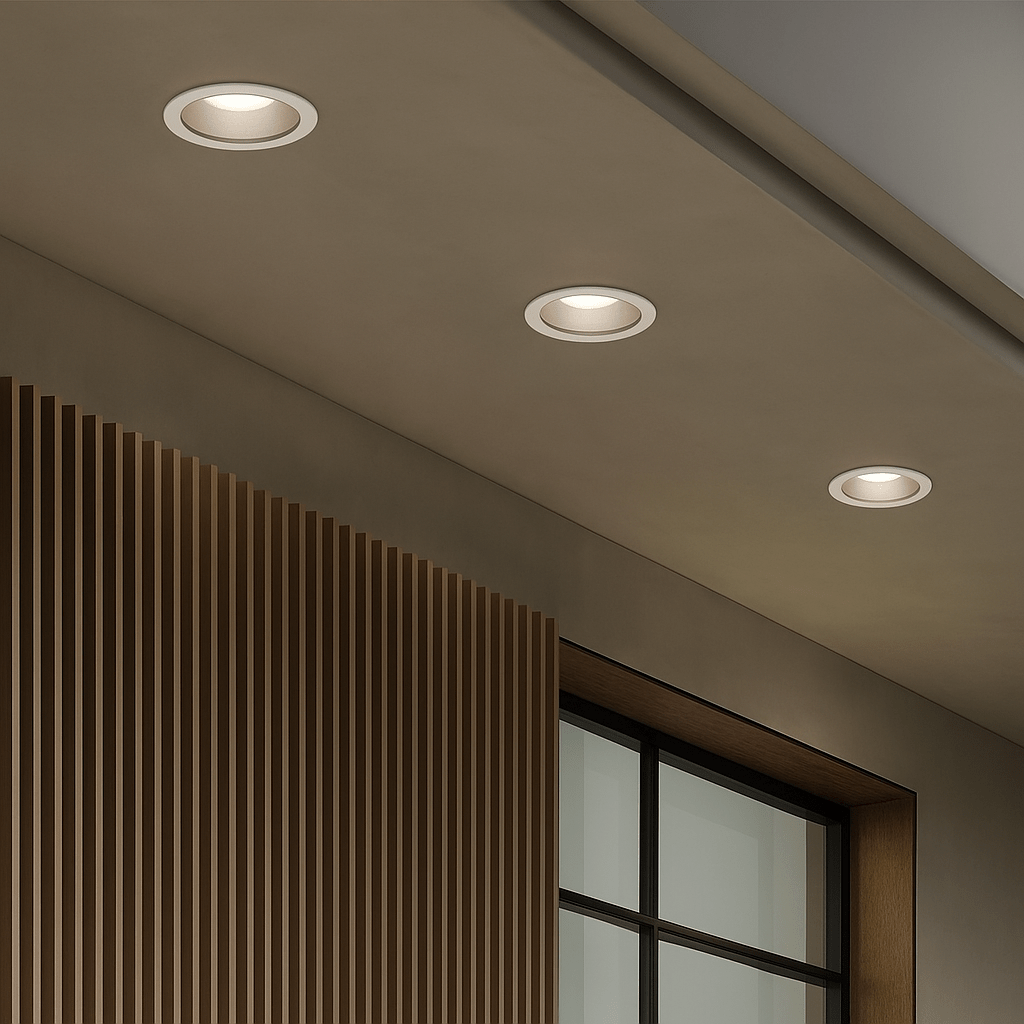

image_text: velar-adjustable-downlight-9097767

Frequently Asked Questions

What construction materials are used in the Brouay downlight?

Crafted from premium-grade aluminium and advanced polymer materials engineered for superior durability and optimal thermal performance.

What is the power consumption of the Brouay downlight?

The Brouay downlight utilizes 12 watts of power to deliver exceptional luminosity with superior energy efficiency.

Does the Brouay downlight include an integrated light source?

Absolutely, it features a factory-integrated LED module that's ready for immediate use upon installation.

What electrical voltage compatibility does the Brouay offer?

Designed for versatility, it operates seamlessly across 120–277 VAC for both residential and commercial applications.

What protection level does the IP rating provide?

The Brouay features IP65 certification, delivering comprehensive protection against dust infiltration and pressurized water exposure.

Is the Brouay downlight suitable for wet locations and exterior use?

Absolutely, the IP65 rating makes it ideal for bathrooms, kitchen areas, and covered outdoor installations like soffits.

Which beam angle configurations are available?

Select from 15°, 24°, 36°, or 50° beam angles to achieve your desired lighting distribution and ambiance.

Can the Brouay downlight's direction be adjusted?

Yes, it incorporates a sophisticated gimbal mechanism allowing precise directional adjustment for optimal light placement.

Do I need an electrician to install the Brouay?

The innovative spring-retention system enables straightforward installation, though professional installation remains an option.

What illumination technology powers the Brouay?

Features state-of-the-art integrated LED technology delivering exceptional longevity and consistent, high-quality light output.
