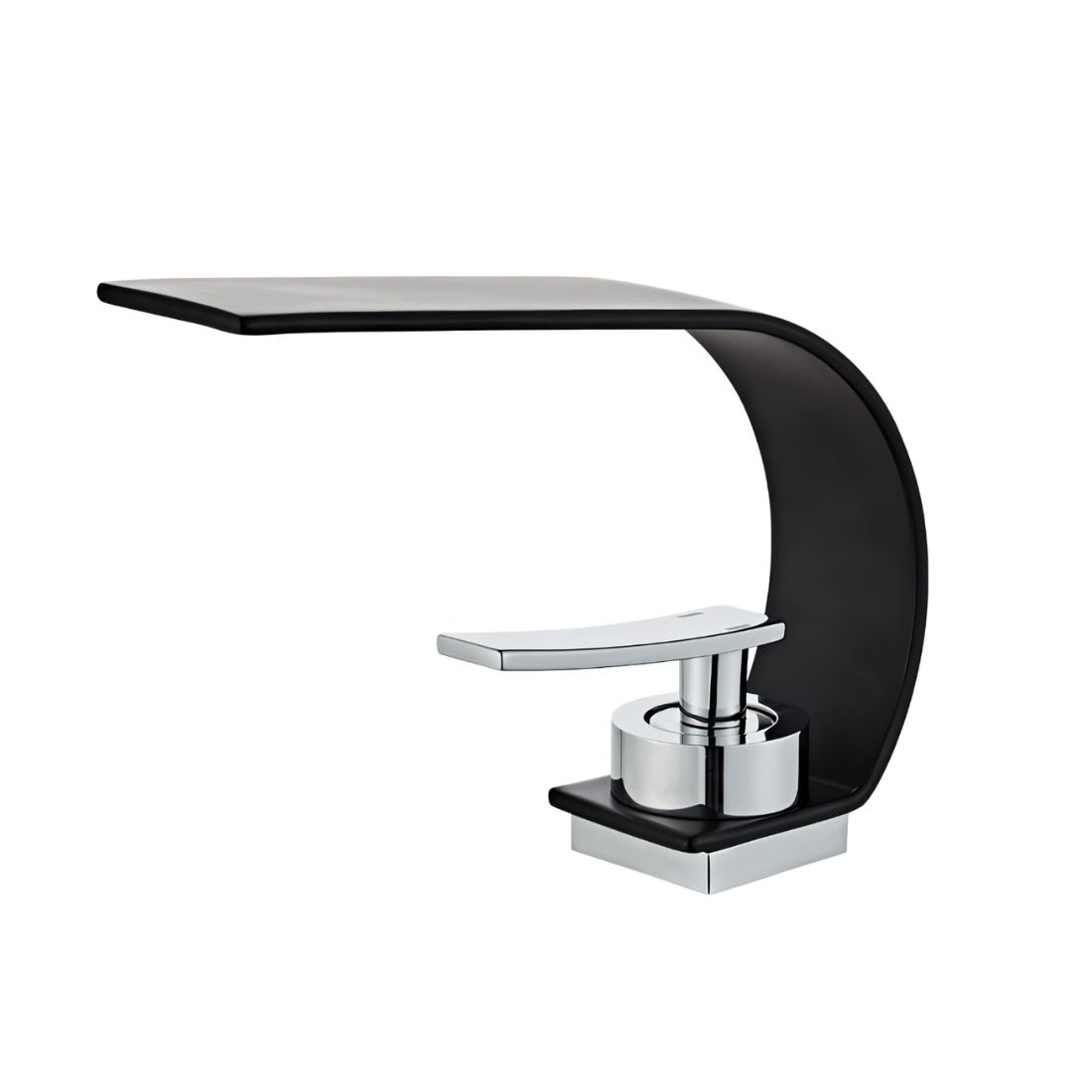

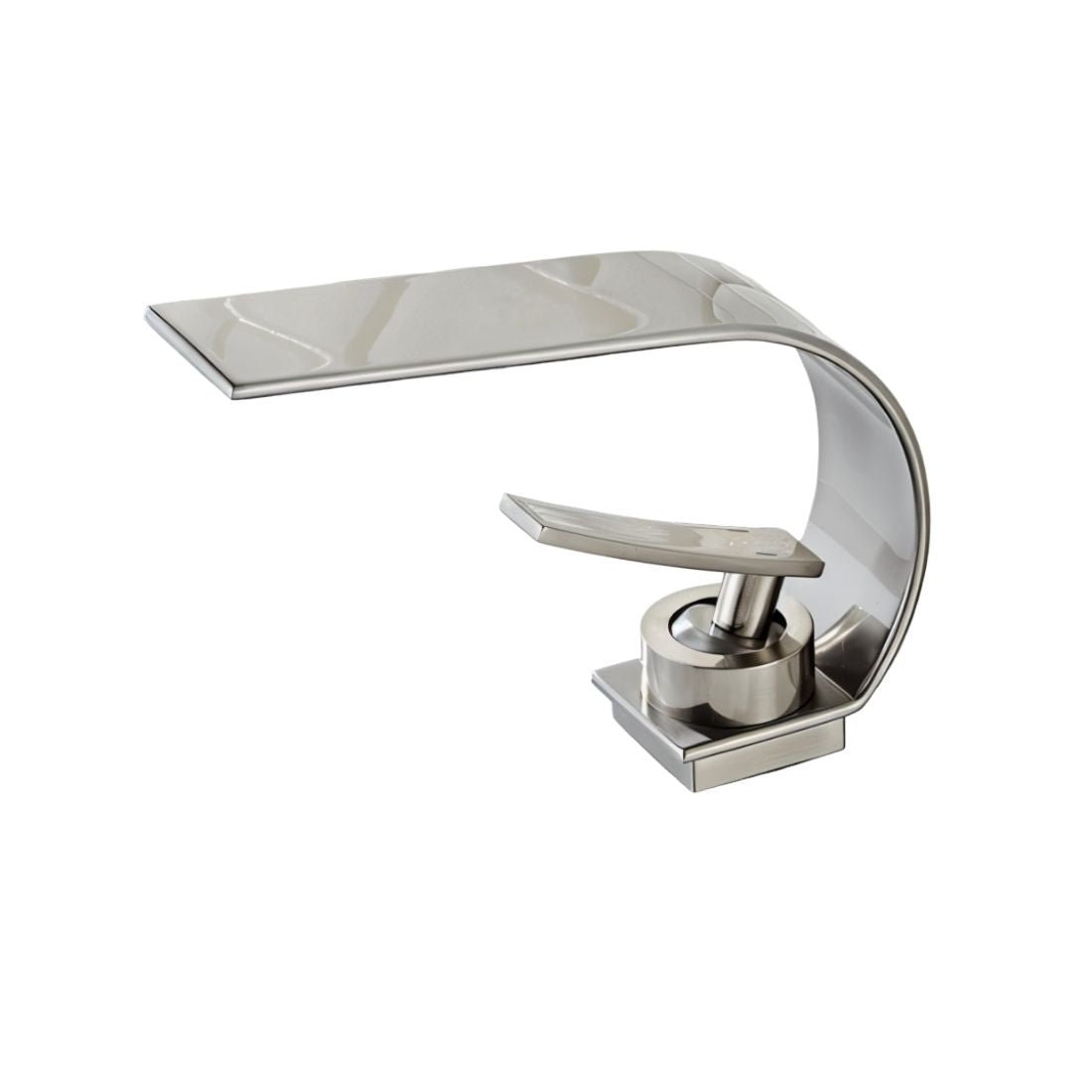

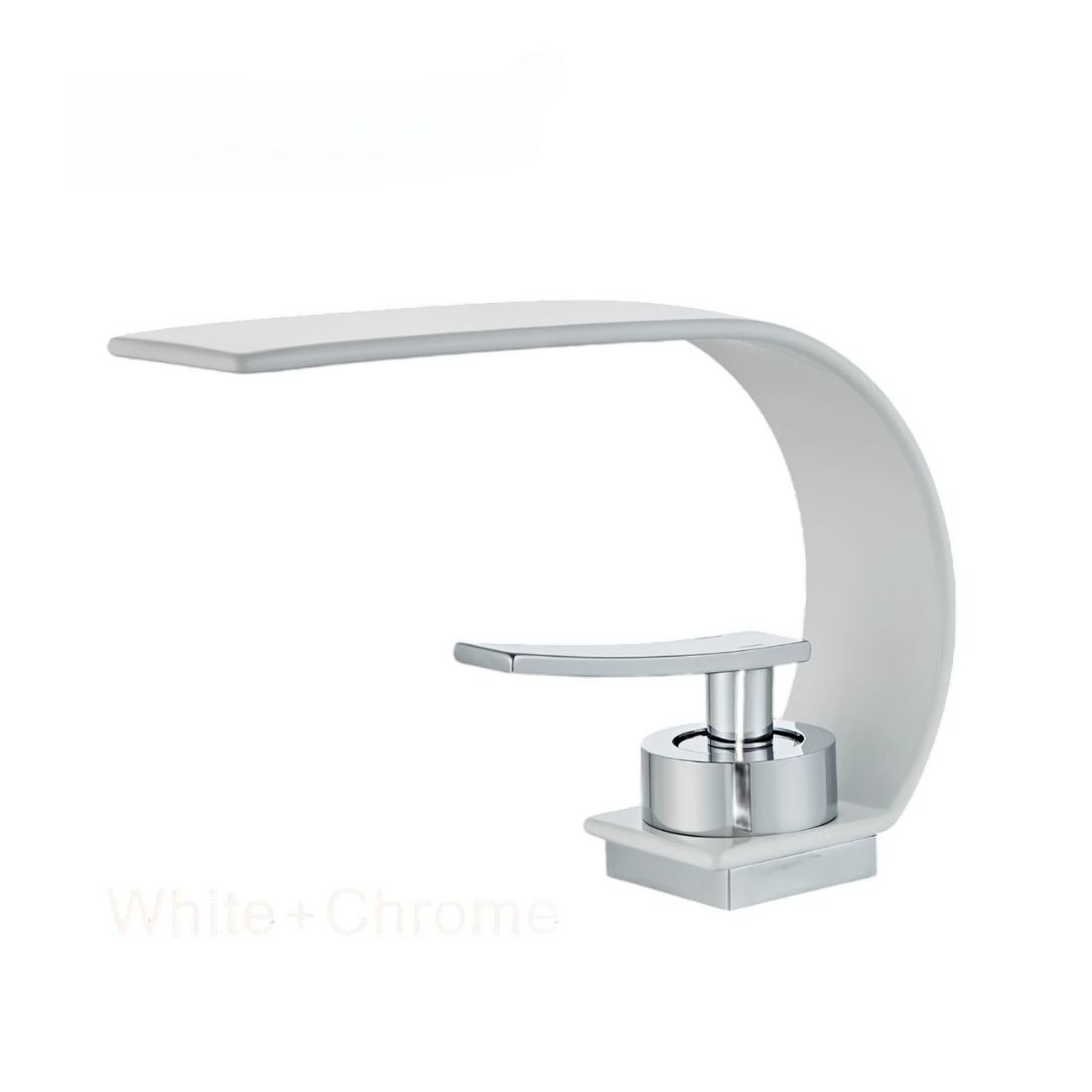

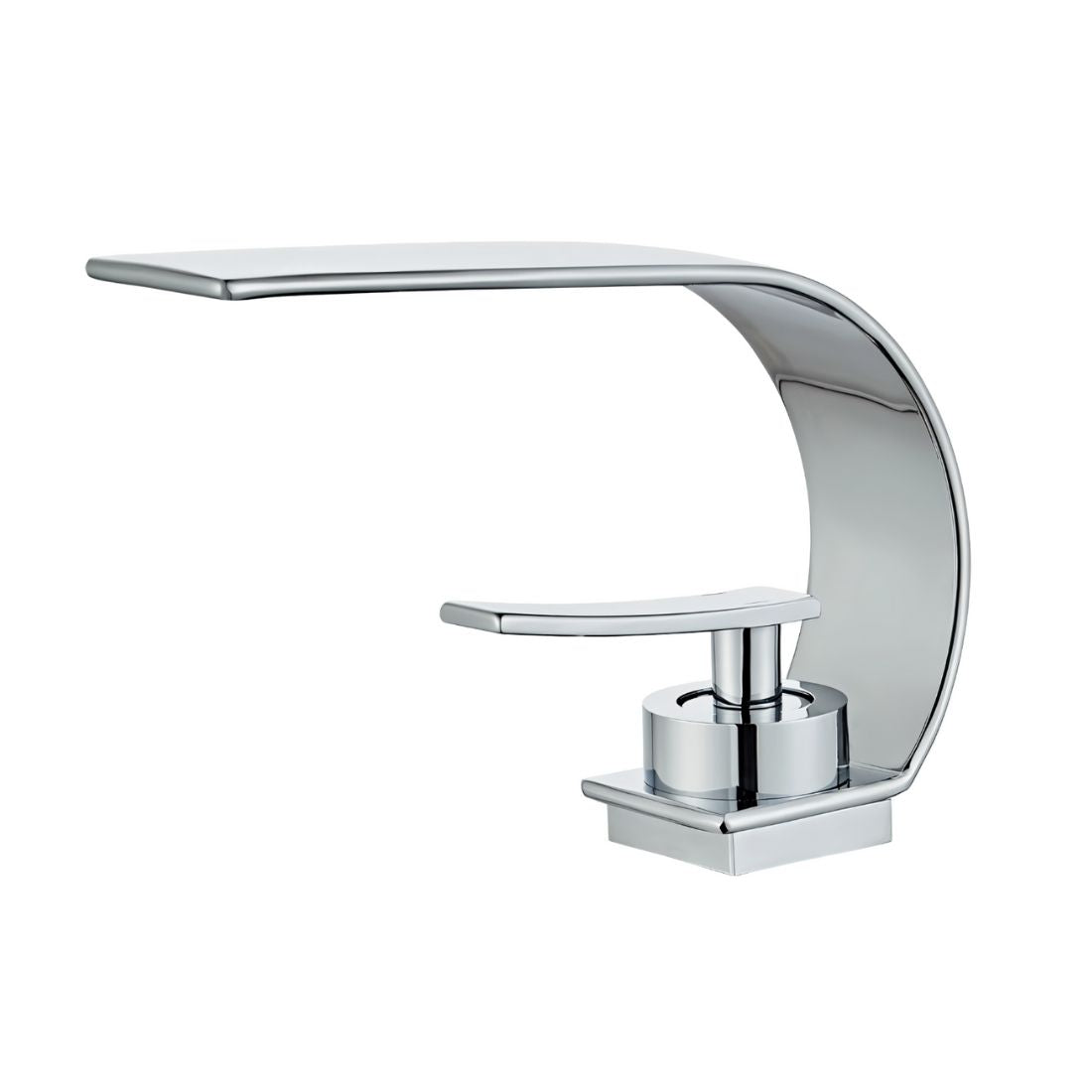

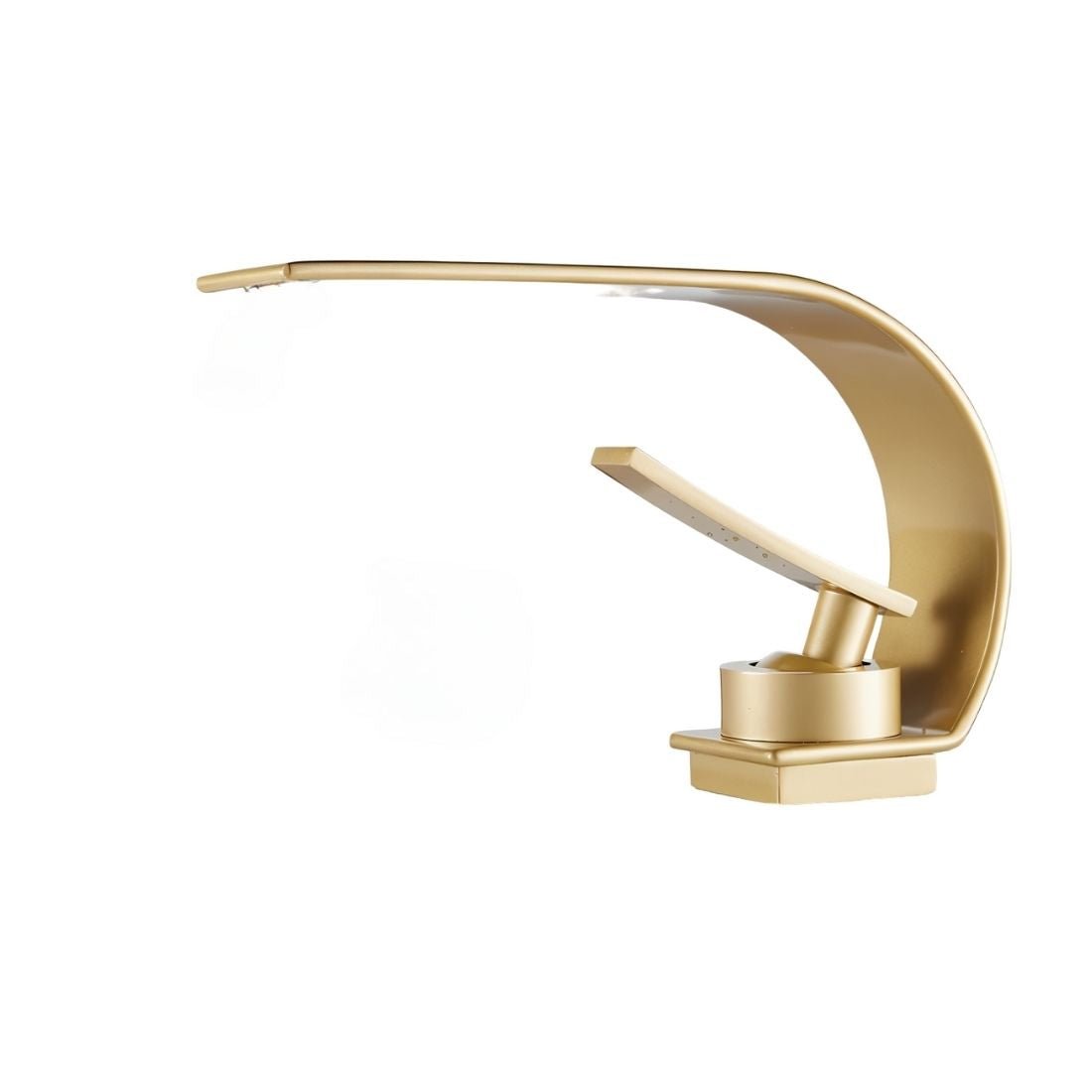

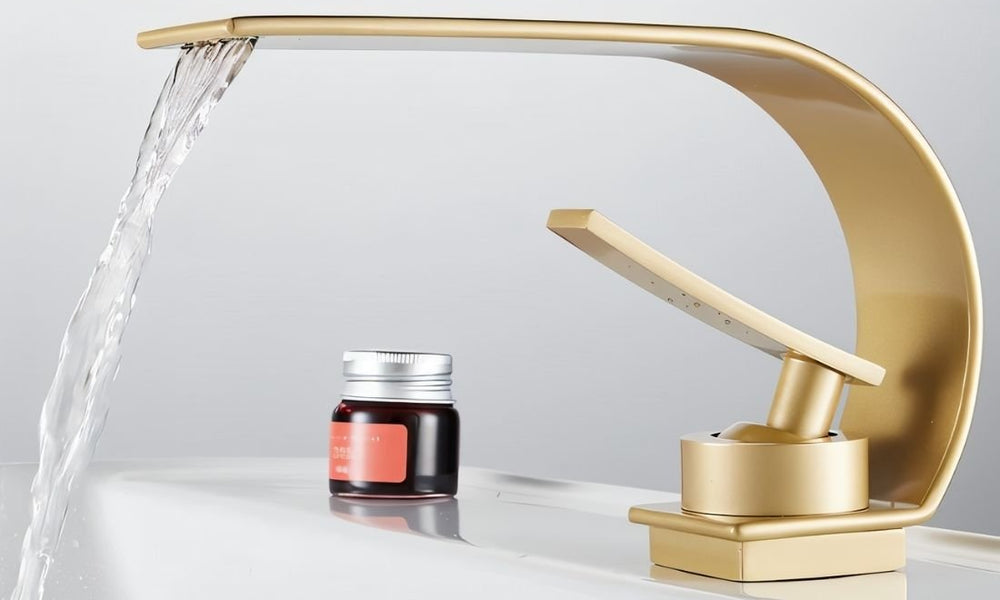

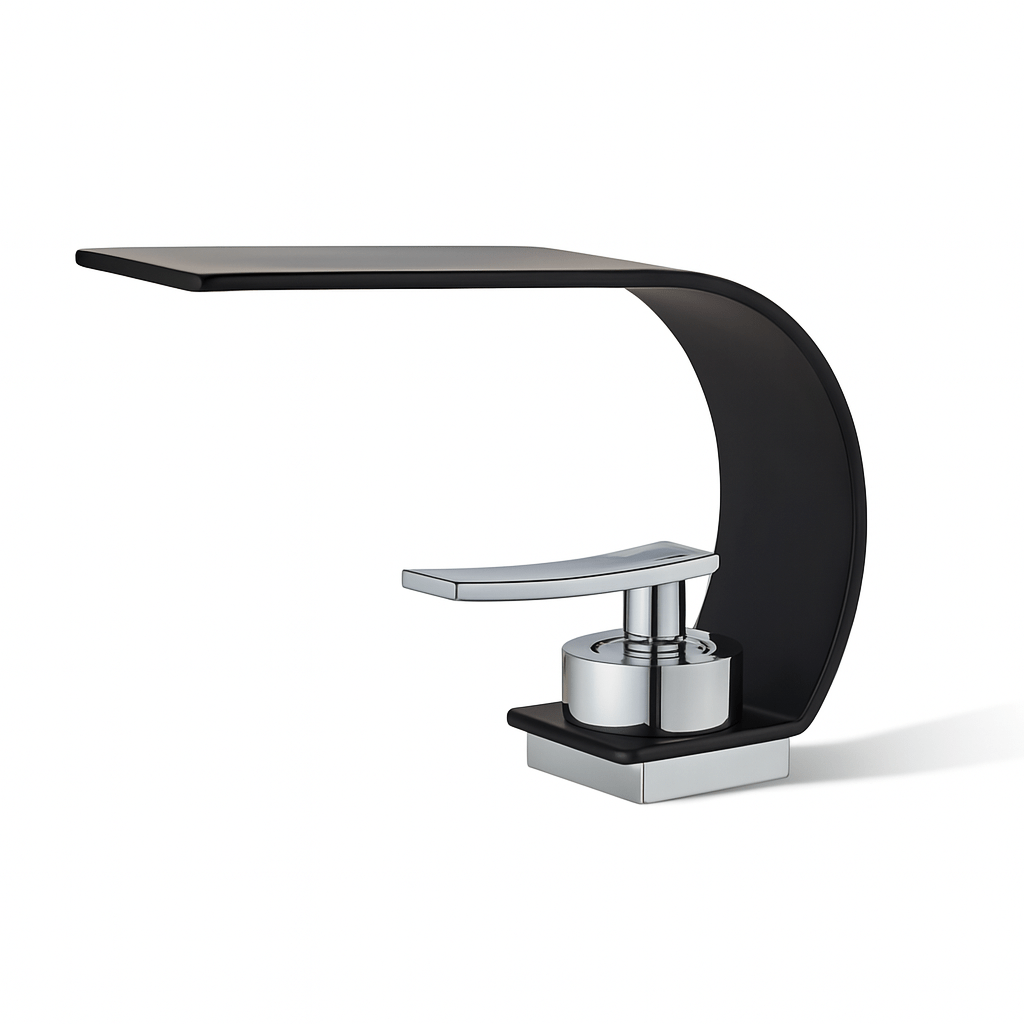

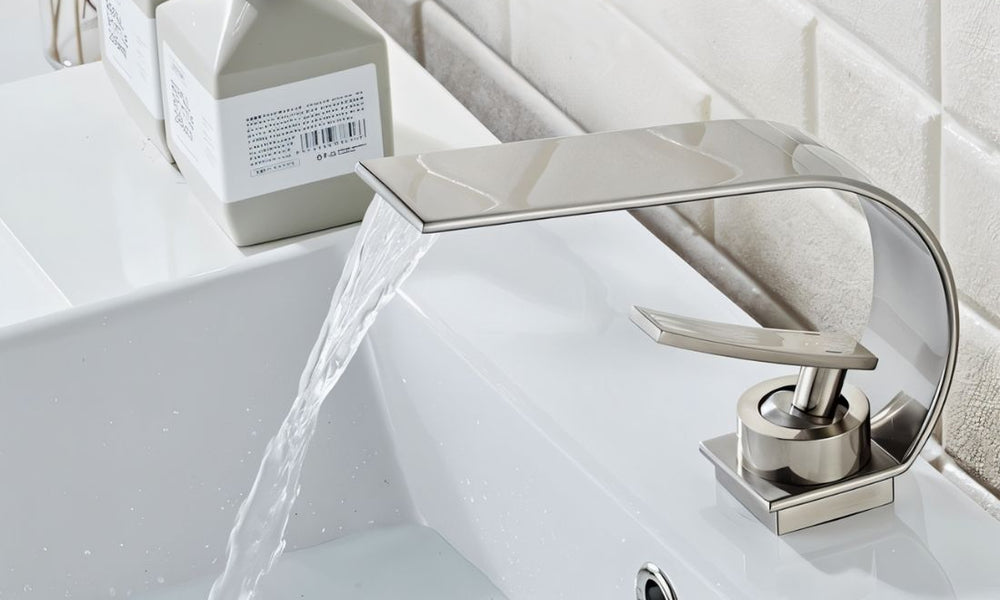

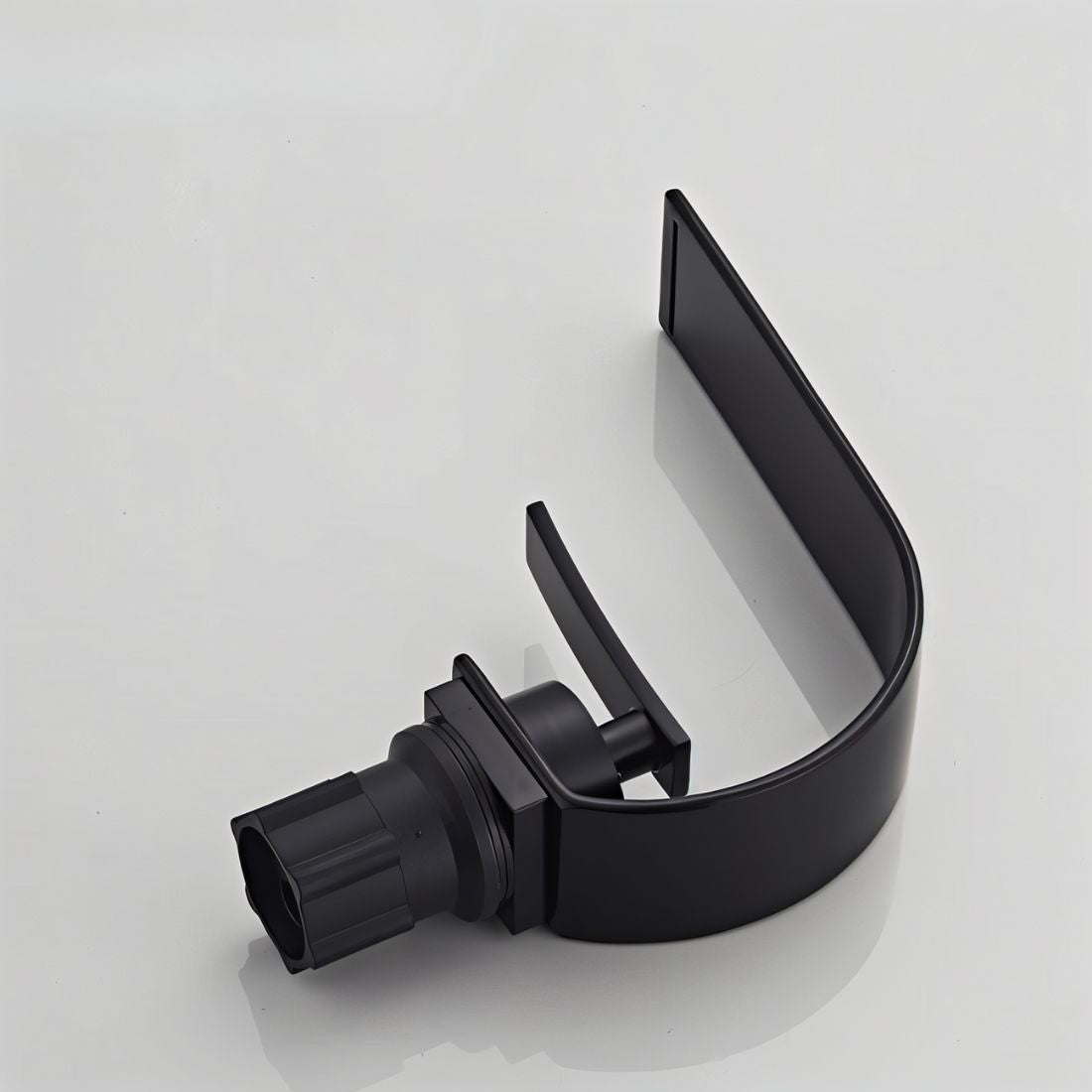

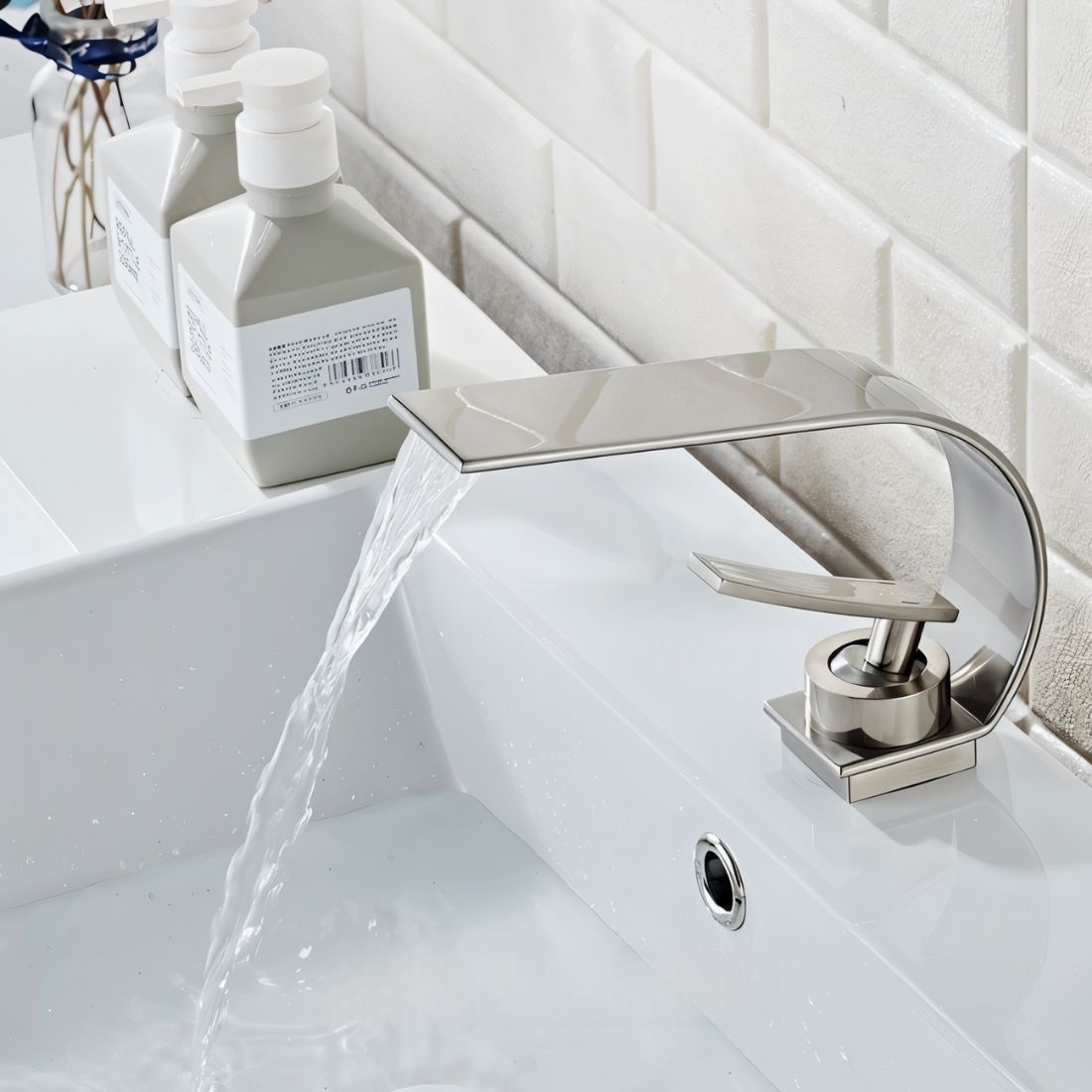

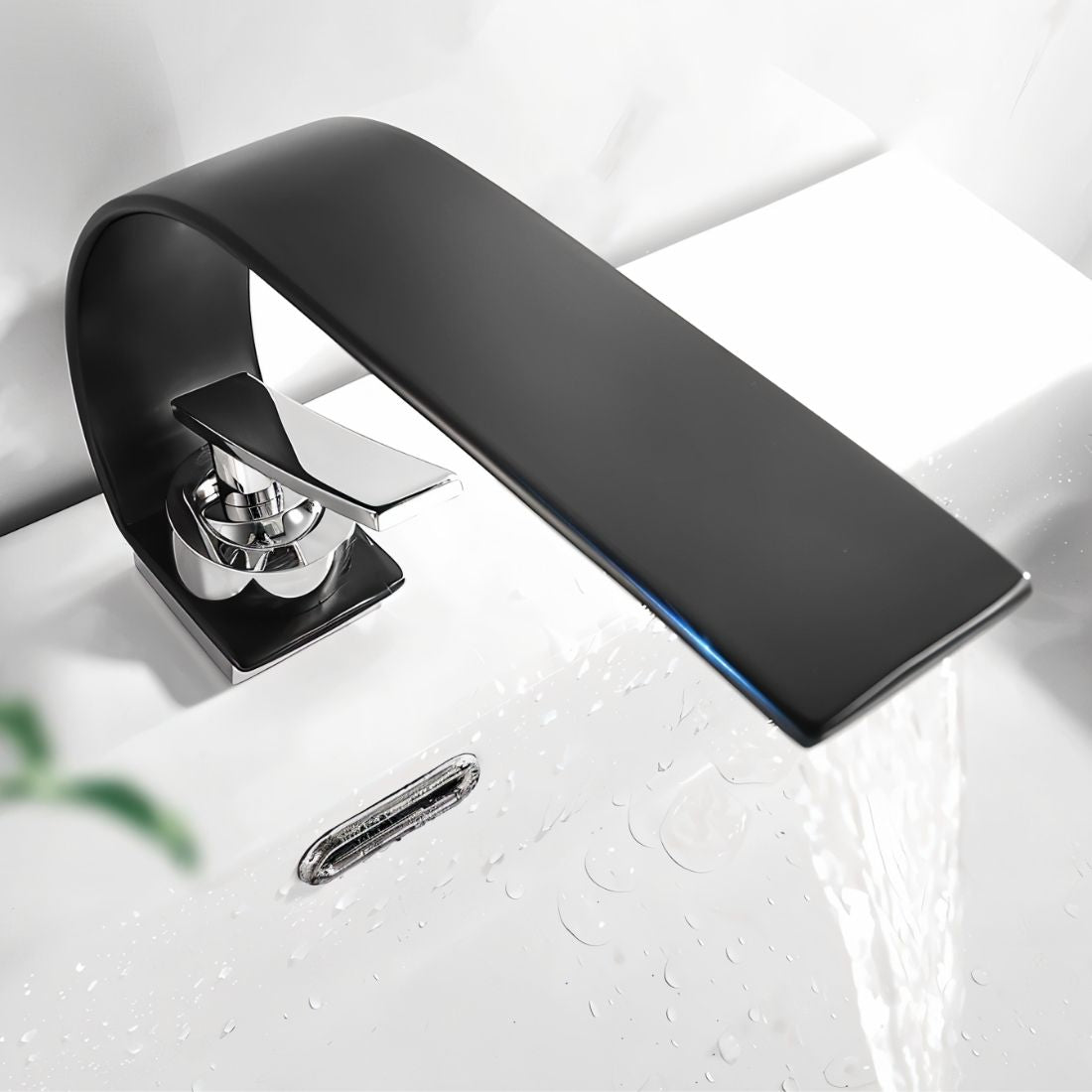

Axel Bathroom Faucet

• Intuitive single-lever temperature control system

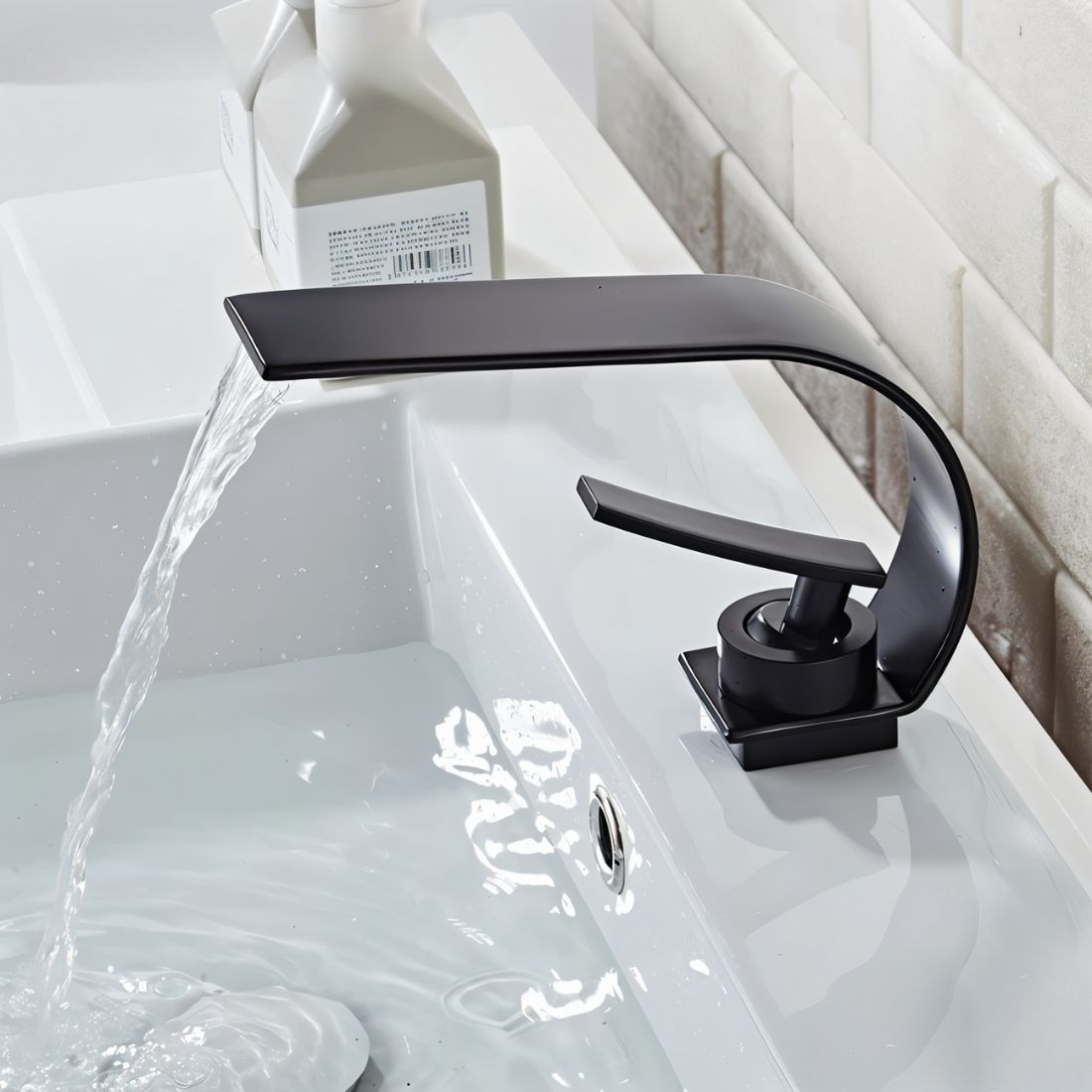

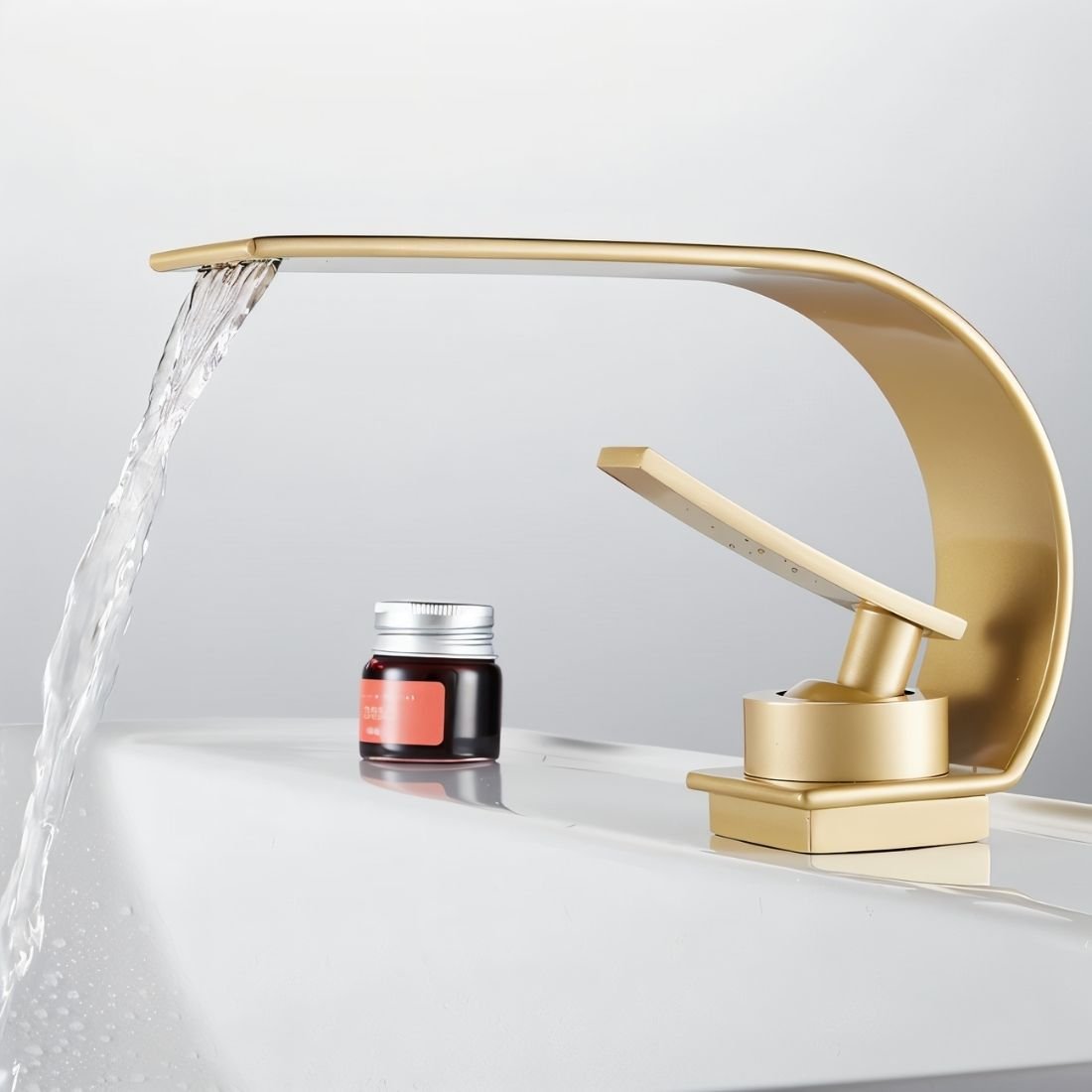

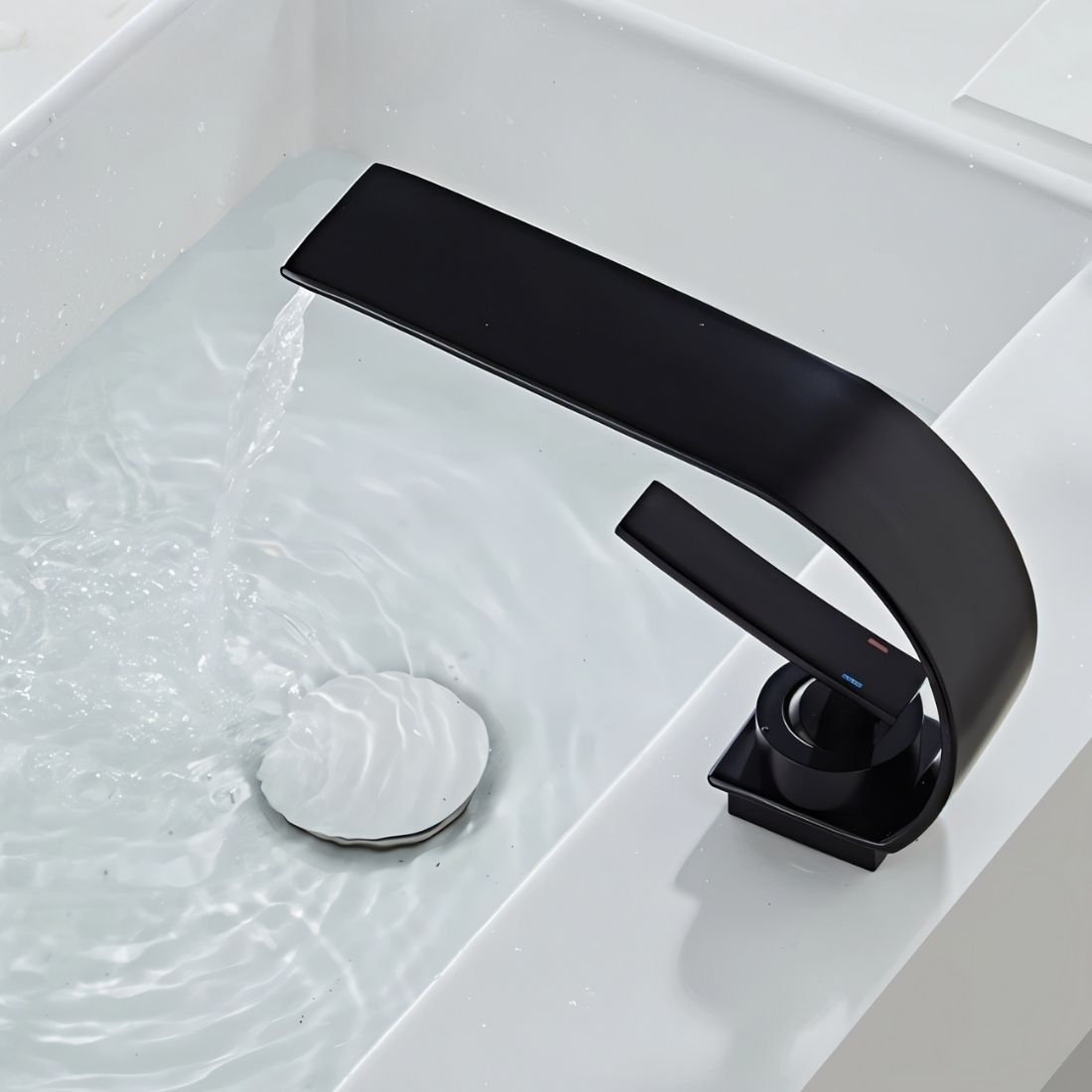

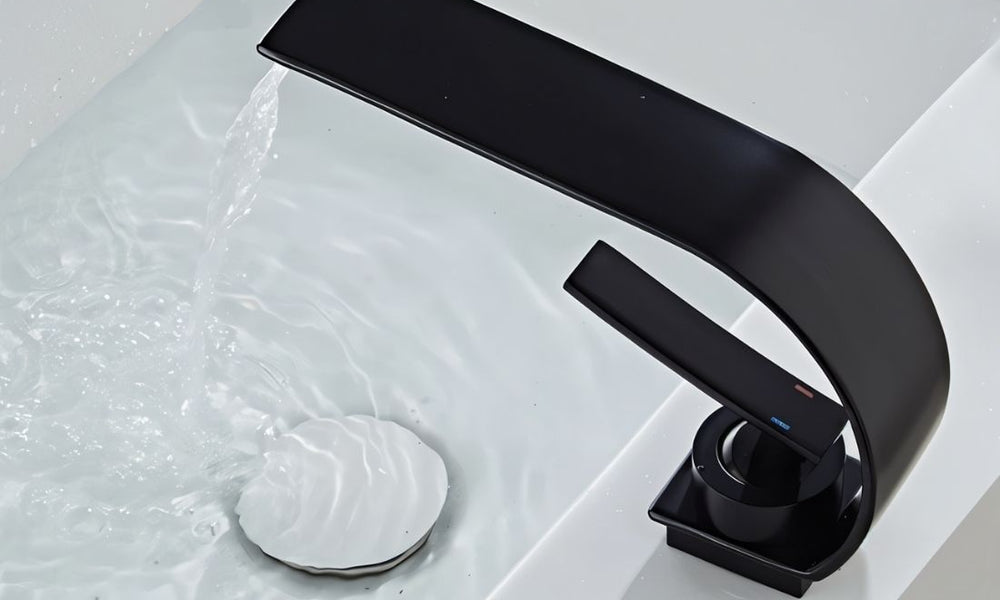

• Cascade spout design minimizes water splashing
• Perfect complement to minimalist and industrial design schemes

Material: Brass

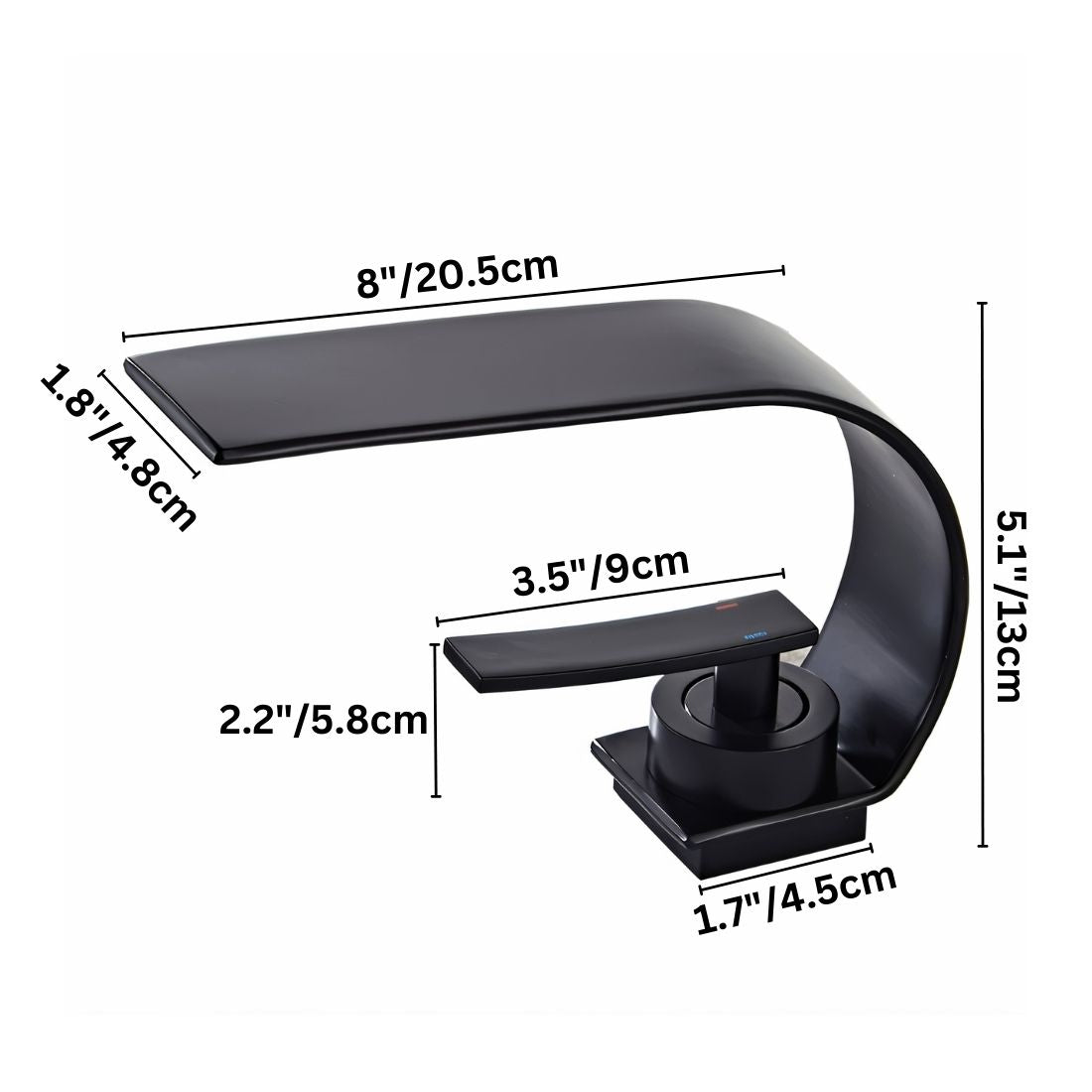

Dimensions: W8"(20.5cm) x H5.1"(13cm)

Tap hole: Single - 1.6"(4cm)

GPM (Gallons Per Minute): 2.2

Minimum pressure: 29 Psi

Medium pressure: 50 Psi

Maximum pressure: 72 Psi

Thread: G1/2 BSP (British Standard Pipe) - Parallel thread: Suitable for most plumbing systems outside North America. NPT (National Pipe Thread) compatibility available: For North American systems (U.S. and Canada). Adapter may be required for full compatibility.

Certifications: CE, NSF/ANSI 61 & 372, UPC/cUPC, WaterSense

Overview

• Mounting Options: This collection includes both wall-mounted and counter-mounted faucets. Confirm your product's configuration before beginning work.
• Thread Compatibility: G1/2 BSP thread (standard outside North America). NPT-compatible options available for U.S. and Canadian plumbing — adapter may be required.

What You Will Need

• Adjustable wrench
• Pipe tape (Teflon tape)
• Basin wrench
• Plumber's putty or silicone sealant
• Bucket or towel (for water drainage)
• Drill and wall anchors (for wall-mounted units)

A. Wall-Mounted Faucets

Step 1: Shut Off the Water Supply

Close both the hot and cold supply valves. Open a nearby faucet to relieve residual pressure in the lines.

Step 2: Prepare the Water Lines

Verify that the hot and cold outlets in the wall align with the faucet's inlet positions. Make any plumbing adjustments before mounting.

Step 3: Attach the Mounting Hardware

Mark drill points on the wall, drill the holes, and secure the support plate with the provided anchors or screws.

Step 4: Connect the Supply Lines

Wrap all threaded pipe connections with plumber's tape. Attach the hot and cold lines securely to the faucet valve inlets.

Step 5: Mount the Faucet Body

Fasten the spout and handles onto the wall-mounted base. Use a wrench to snug the connections — avoid overtightening.

Step 6: Seal and Finish

Apply silicone sealant around the base fittings to ensure a watertight seal. Allow the sealant to cure as directed.

Step 7: Open the Water and Test

Turn on the main supply valves. Check for leaks at every connection and test the hot/cold temperature control.

B. Counter-Mounted Faucets

Step 1: Shut Off the Water Supply

Close both supply valves beneath the sink. Open the faucet to drain any remaining water from the lines.

Step 2: Position the Faucet and Handles

Insert the spout and handle assemblies through the pre-drilled holes in the countertop or sink deck.

Step 3: Secure from Below

Working from underneath the sink, tighten the mounting nuts and washers to hold the faucet components firmly in place.

Step 4: Connect the Water Lines

Apply plumber's tape to all threaded joints. Attach the hot and cold lines to their respective shut-off valves using flexible connectors.

Step 5: Seal the Base

Apply plumber's putty or silicone around the faucet base (if required by your model) to prevent water from seeping underneath.

Step 6: Restore Water and Inspect

Open the supply valves and test for steady flow, accurate temperature mixing, and tight seals at every joint.

Helpful Reminders

• Always verify thread compatibility (BSP vs. NPT) and use an adapter if necessary.
• If you are unfamiliar with your plumbing system, consult a licensed plumber.
• Clean the aerator periodically to maintain optimal water flow.
• For outdoor wall applications, ensure frost protection in cold climates.
