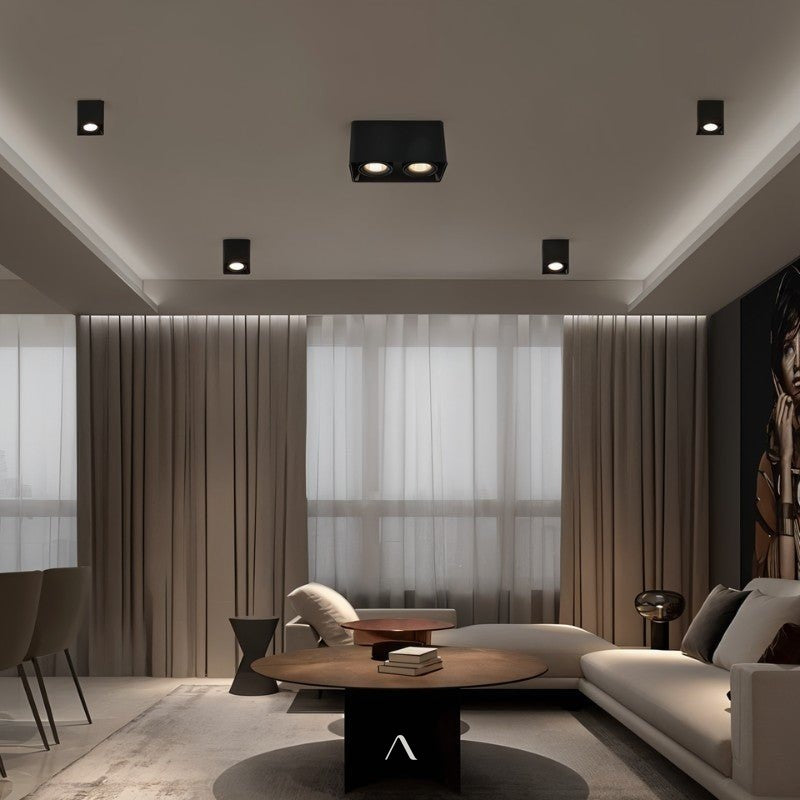

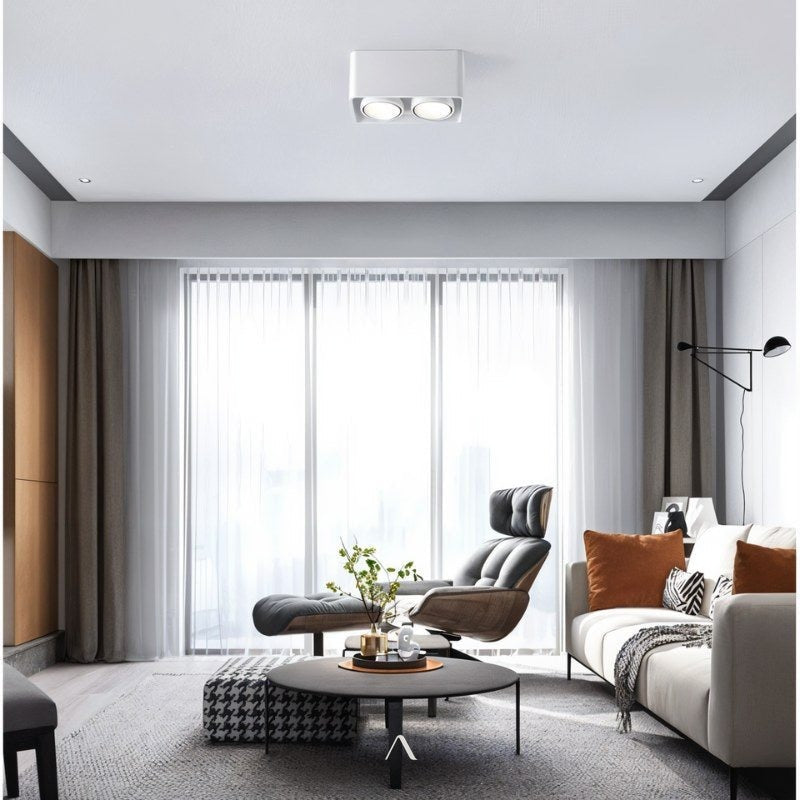

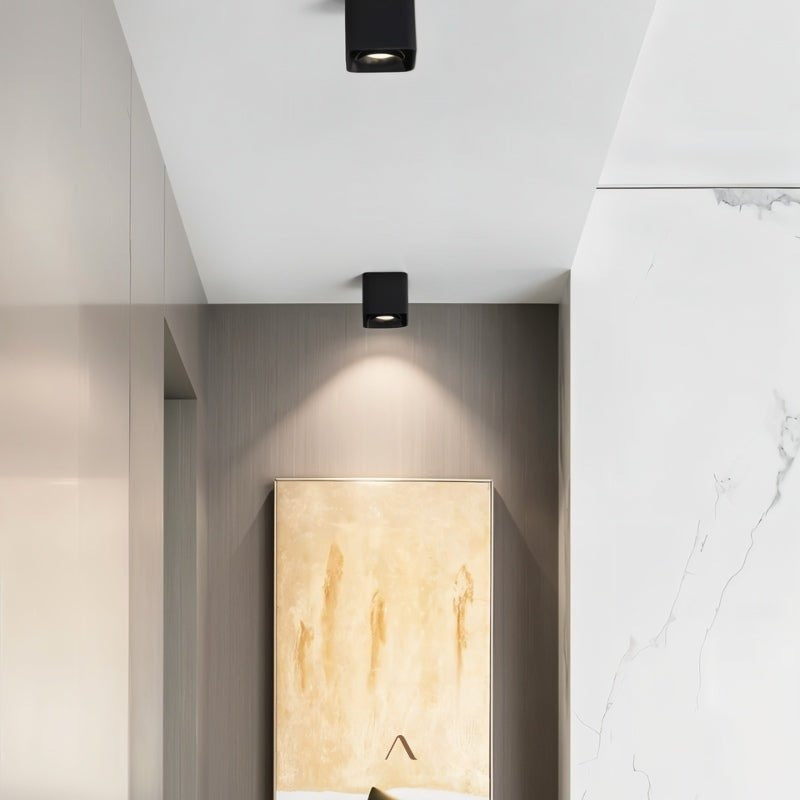

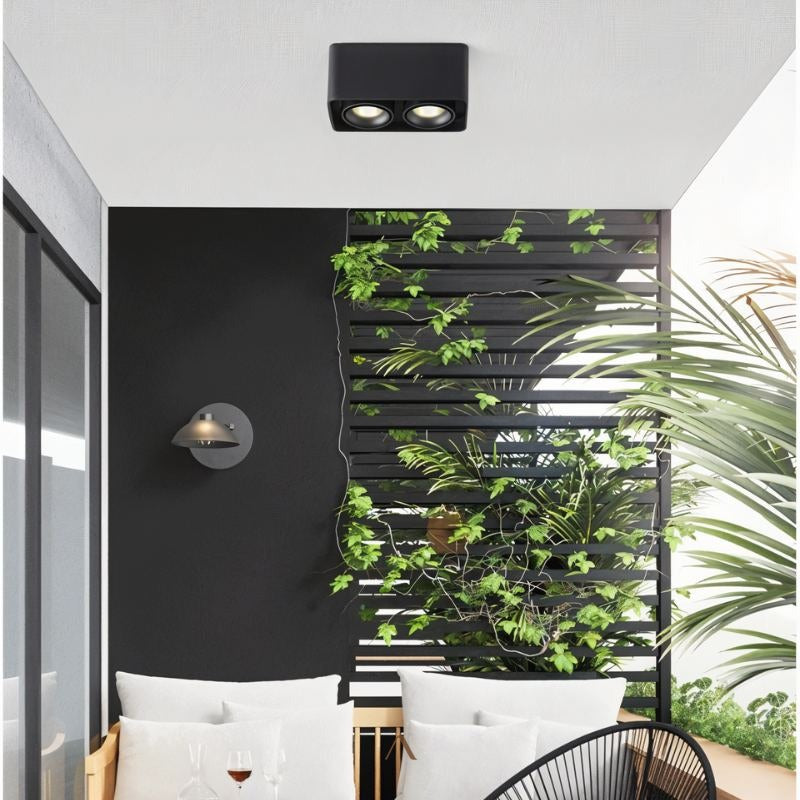

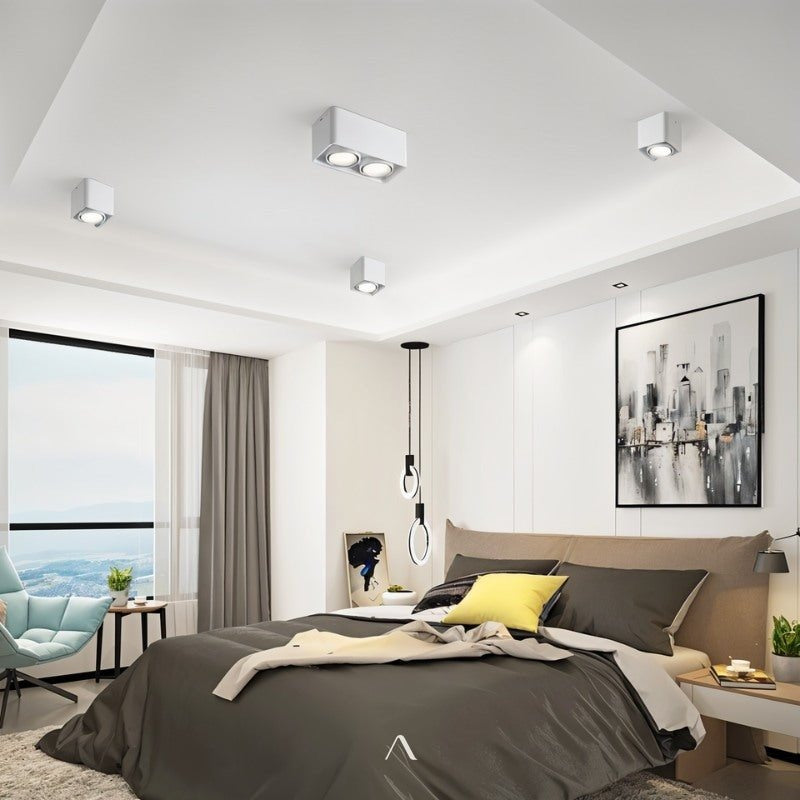

Tellervo Downlight

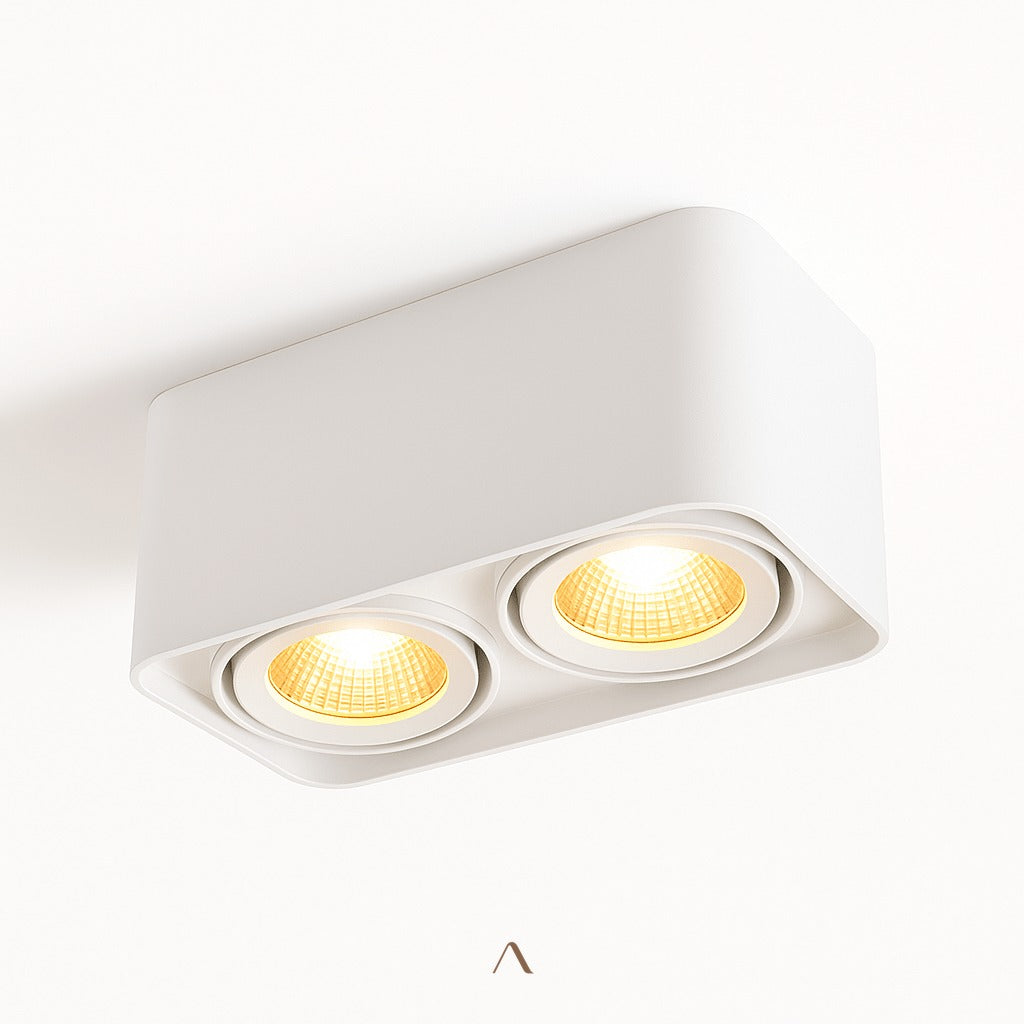

• Extended operational lifetime minimizes replacement requirements
• Sophisticated finishes enhance diverse architectural styles
• Space-efficient design accommodates restricted ceiling areas

Material — Aluminium

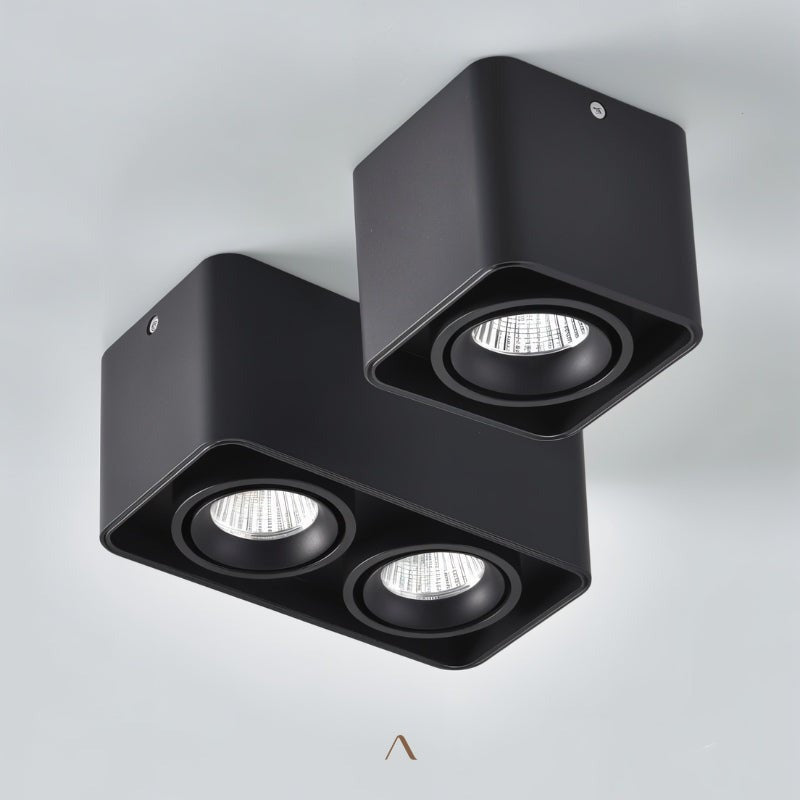

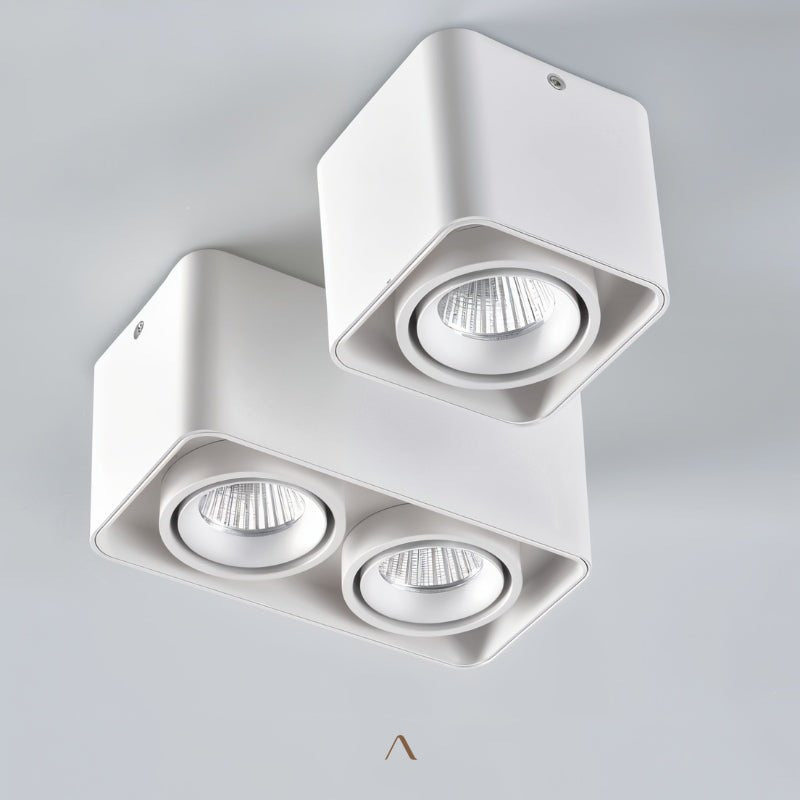

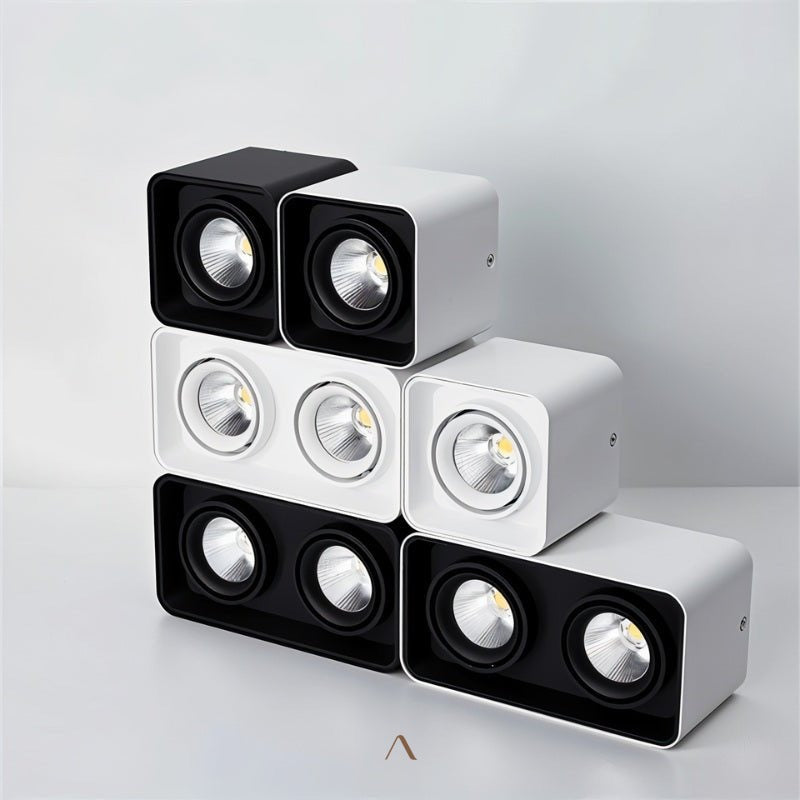

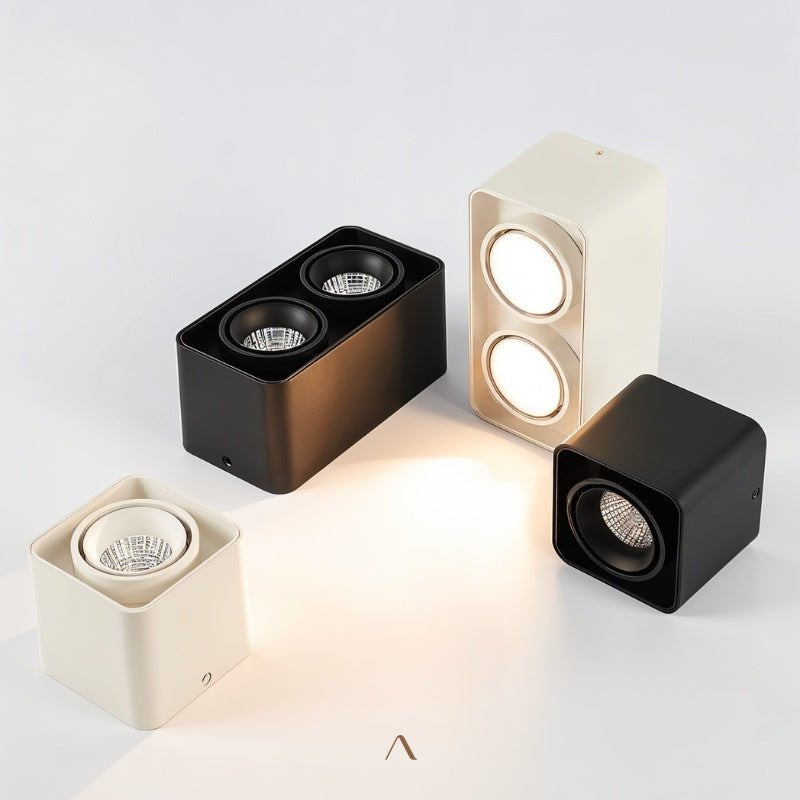

Finish — Black, White

Light source — LED GU10 (replaceable)

Output — 1-head 10W (1,000 lm) / 15W (1,500 lm)

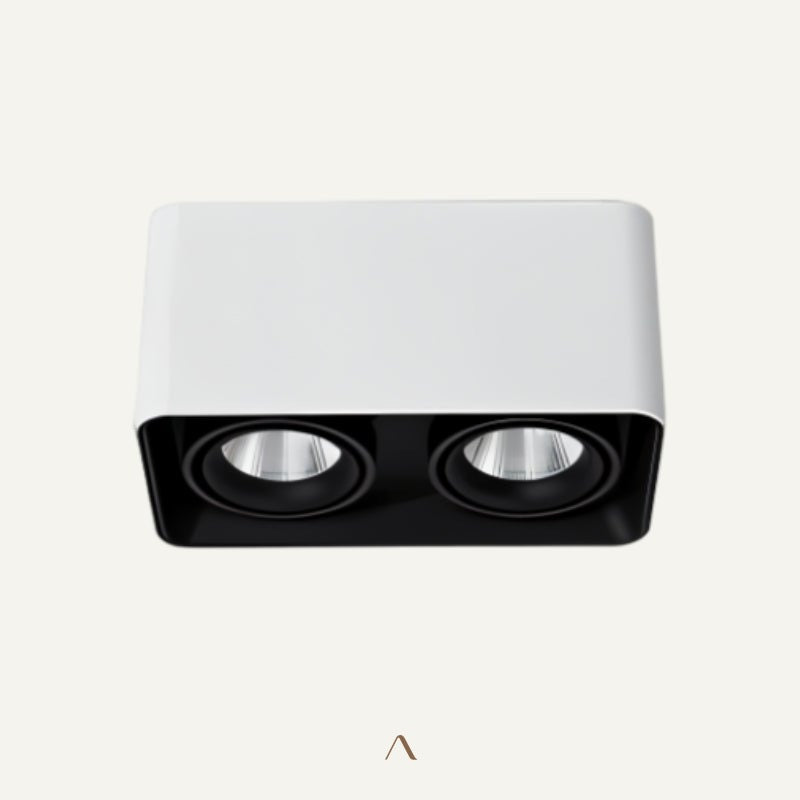

2-head 20W (2,000 lm) / 30W (3,000 lm)

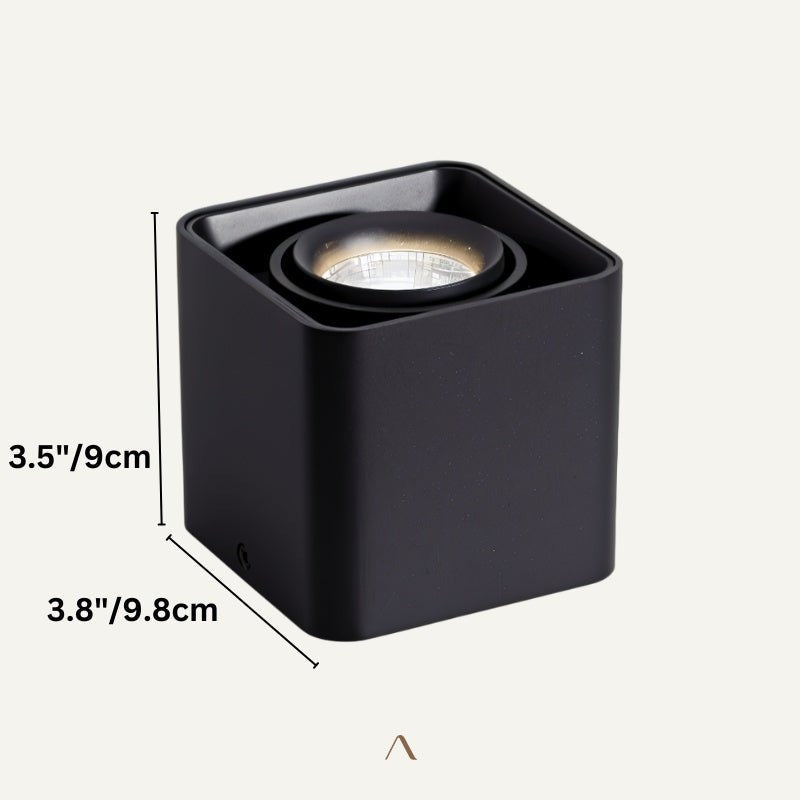

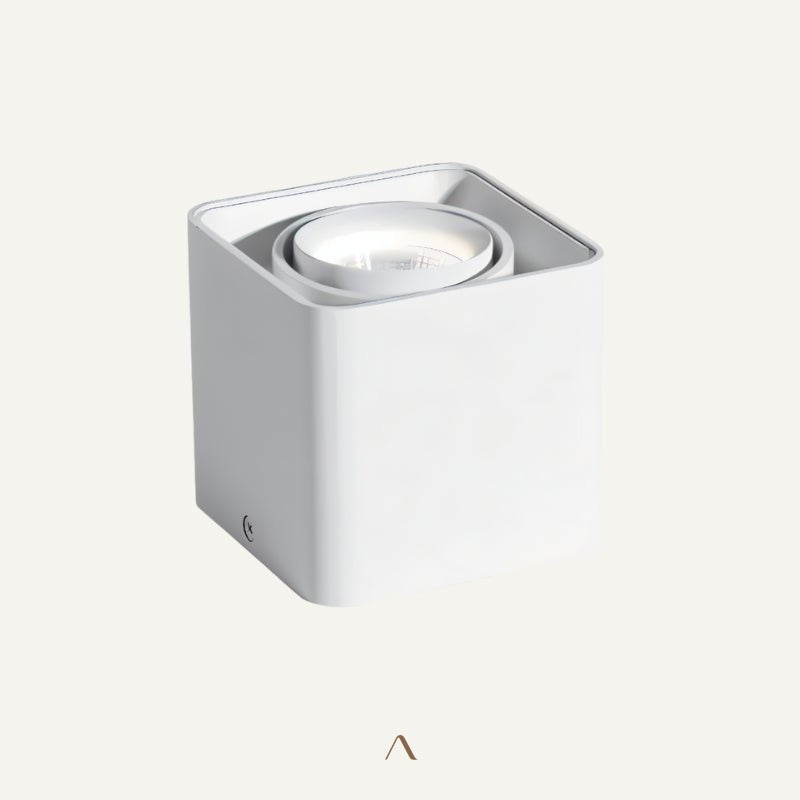

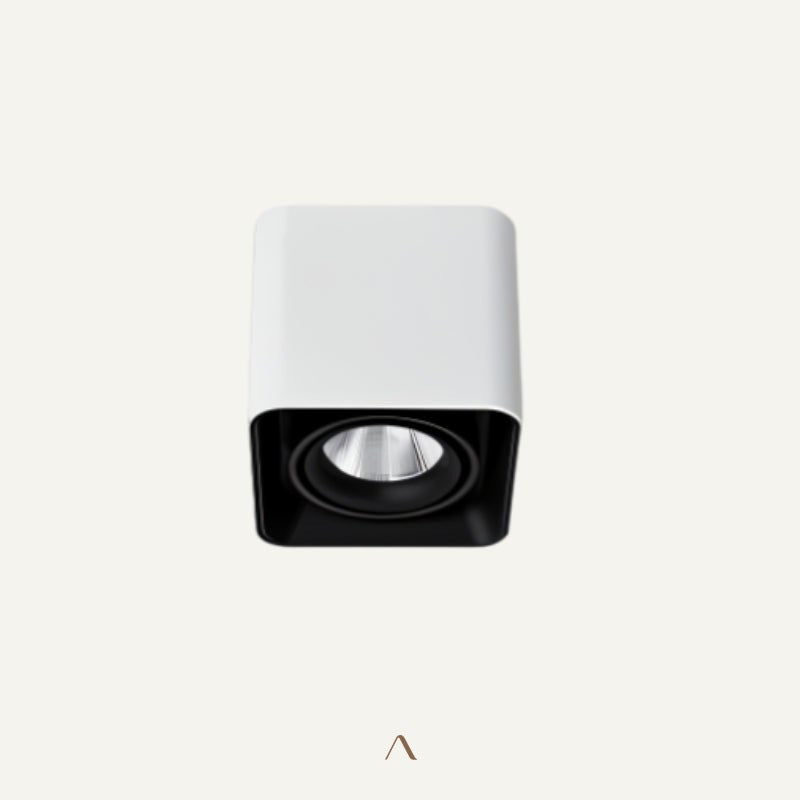

Dimensions — 1-head L9.8 x H9 cm

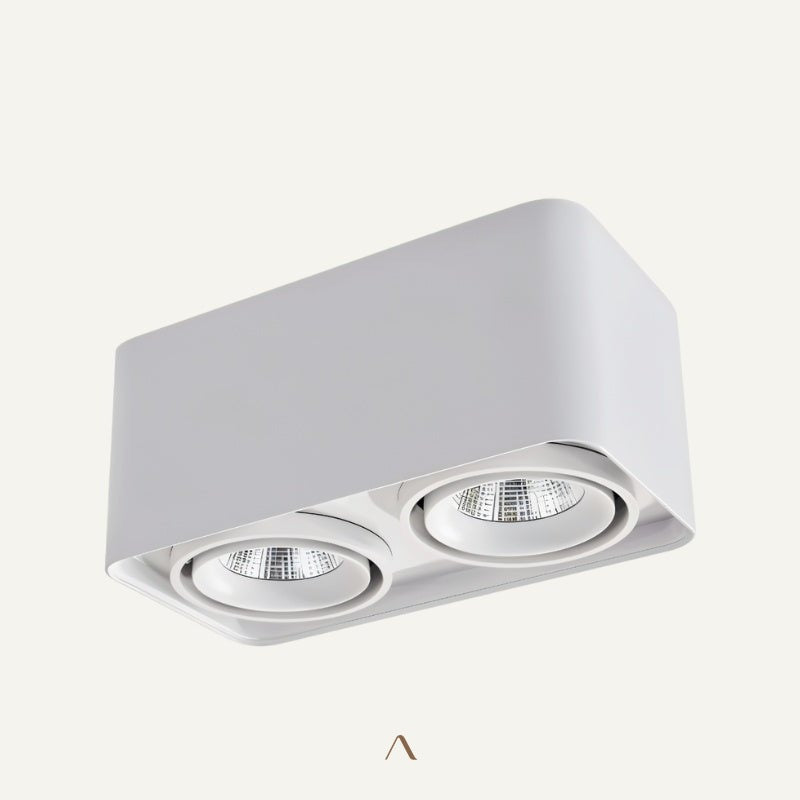

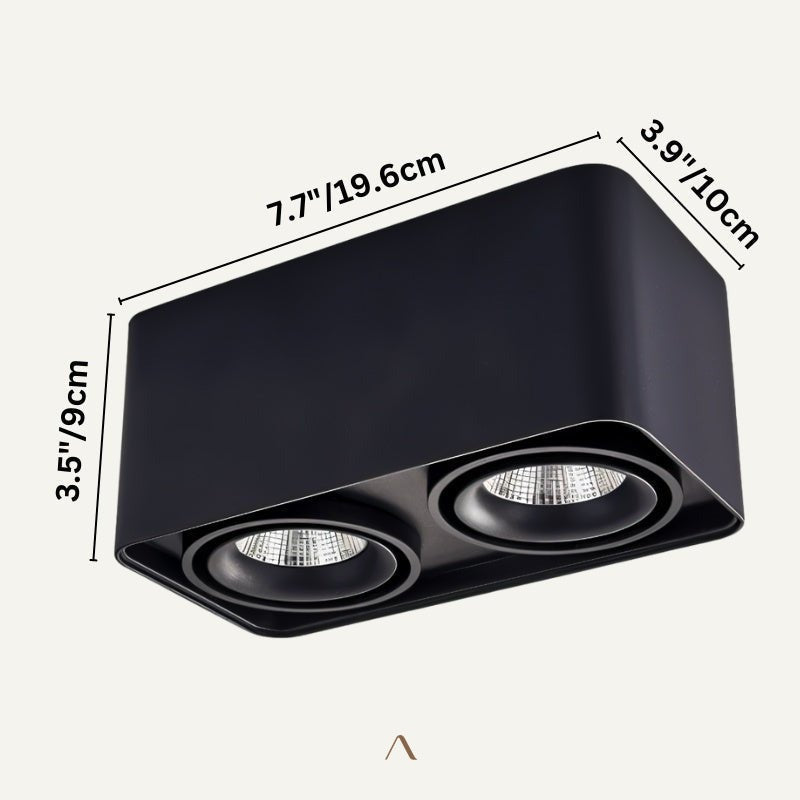

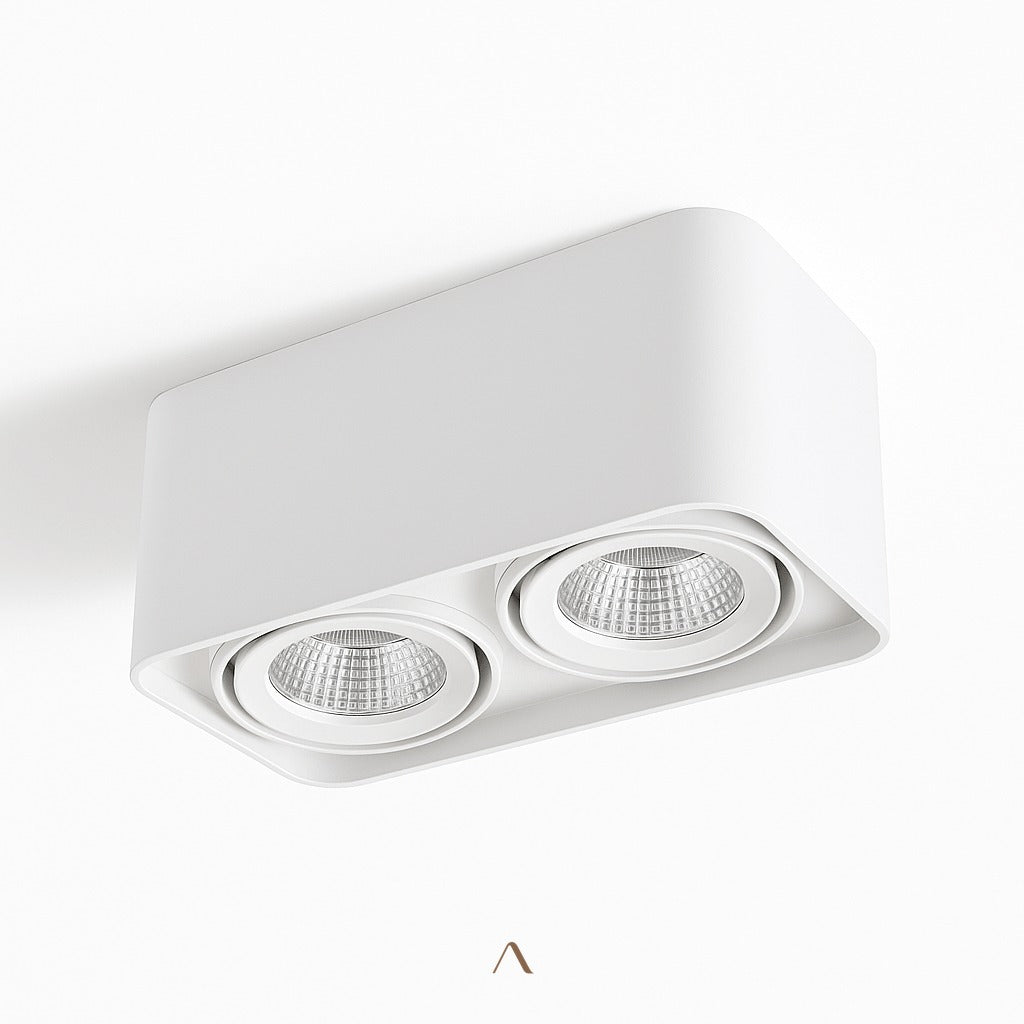

2-head L19.6 x W10 x H9 cm

Weight — 0.8 kg (1-head)

1.5 kg (2-head)

Voltage — 90–260V

Installation — Hardwired, ceiling recessed

Sloped ceiling — Compatible

Dimmable — On request

LED lifespan — 80,000 hours

Certifications — UL, CE, FCC, RoHS, SAA and others

The install depends on your mount type — trimless, recessed, semi-recessed, surface, or track — so confirm which one you have before you start.

Before you begin

• Mounting — trimless, recessed, semi-recessed, surface-mounted, or track-mounted; confirm the type in your product listing
• Ceilings — most models suit drywall; some also work with concrete or drop ceilings, check the technical documentation
• Dimming — many designs dim when paired with compatible drivers and wall dimmers
• Power — hardwired, connects directly to a ceiling electrical junction
• Trimless — may need professional finishing or flush-mount drywall work
• Track — installs onto a compatible rail system; check your product's specification for track type

What you'll need

• Drill, keyhole or drywall saw (for recessed or trimless)
• Screwdriver, voltage tester, wire stripper
• Wire nuts (included with most fixtures), screws and wall anchors (for surface mounting)
• Level, measuring tape or pencil

Step by step

1. Turn off the power — at the breaker panel, and confirm with a voltage tester.
2. Prepare the ceiling opening (recessed and trimless only) — mark your opening with the provided template and cut carefully with a drywall saw or hole cutter. Trimless models need deeper space and extra setup for a seamless finish.
3. Install the mounting hardware or fixture housing — recessed and trimless designs insert into the ceiling cavity and secure with spring clips or fasteners (trimless may need joist framing); semi-recessed fixtures partially install per the included instructions; surface-mounted downlights attach directly with screws and wall anchors; track fixtures need a compatible track system first, then lock into place.
4. Connect the wiring — black to black, white to white, green or bare to ground. Secure each with a wire nut and tuck neatly back into the housing or box.
5. Final assembly — trimless fixtures get mudded and feathered into the ceiling plane before painting; recessed, semi-recessed, and surface fixtures finish by twisting or snapping the trim or body into place; track lights get positioned and rotated along the rail after locking in.
6. Restore power and test — use the wall switch or dimmer to verify proper operation.

Good to know

• Professional installation is recommended for trimless or recessed downlights, especially with mudding or insulation involved.
• Follow local electrical codes and regulations.
• Use only compatible drivers and dimmers for your fixture.
• Keep safe spacing from insulation in ceiling cavities to prevent overheating.

Still need help? Email hey@navadecor.co.

Every order is eligible for customization by our skilled in-house team.

Frequently Requested Modifications

• Adjusted hanging or suspension length
• Custom material finish or paint color
• Modified light emission color or temperature
• Dimmer integration
• Scaled dimensions (larger or smaller)
• Complete fixture redesign based on your specifications
