Tech Ceiling Light

• Architectural profile enhances contemporary aesthetics
• Premium construction ensures lasting performance
• Balanced illumination eliminates harsh shadows

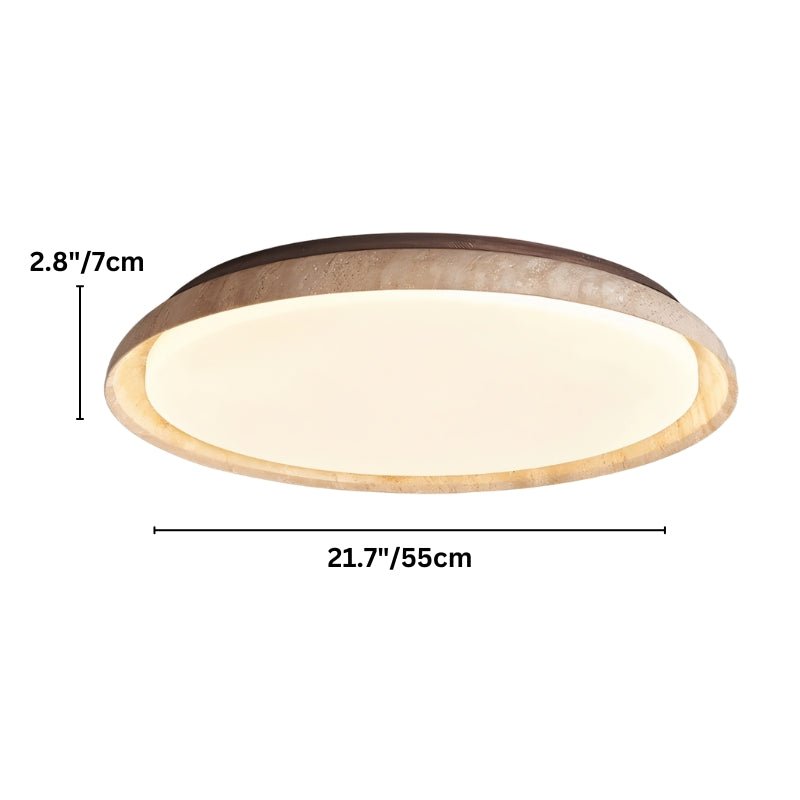

Product Dimensions:

D11.8"(30cm) x H2.8"(7cm)

D16.9"(43cm) x H2.8"(7cm)

D21.7"(55cm) x H2.8"(7cm)

Wattage (Lumens):

18W (1980lm)

36W (3960lm)

48W (5280lm)

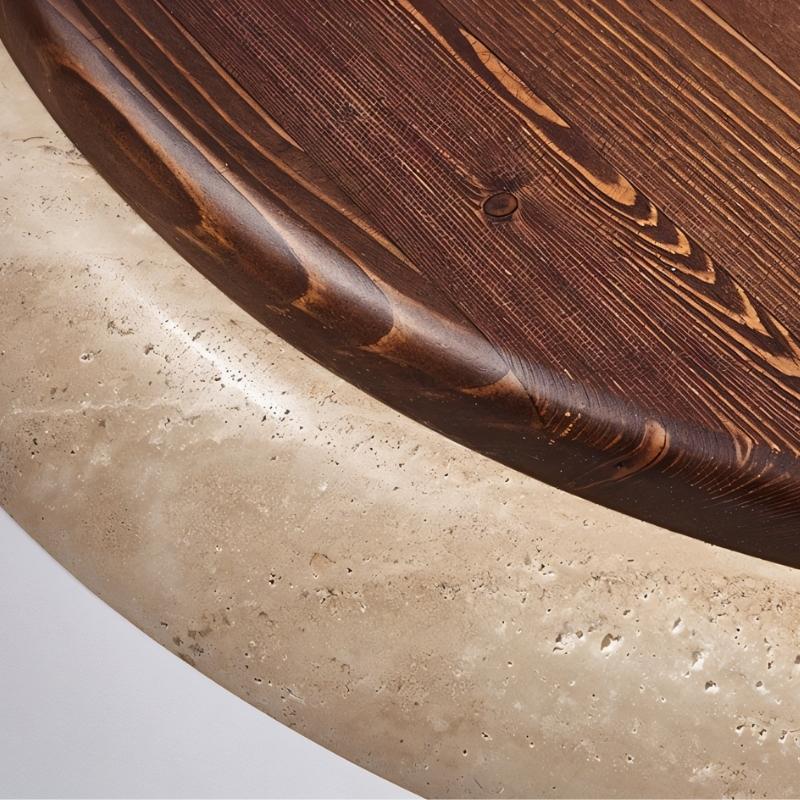

Material: Travertine, Acrylic

Finish: Beige

Light Source: Integrated LED

Dimmable: No

Voltage: 90-260VAC

Installation Type: Hardwired

Canopy/Backplate Dimensions:

D11.8"(30cm)

D16.9"(43cm)

D21.7"(55cm)

Sloped Ceiling Compatible?: No

Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE

Overview

• Fixture Mounting: All flush mount lights attach directly to a standard ceiling junction box. The base sits tight against the ceiling surface, making these fixtures perfect for rooms with limited overhead clearance.
• Dimmer Support: Models equipped with standard bulb sockets are generally dimmable. Integrated LED versions typically are not. For dimmer compatibility questions, Contact Us.
• Ceiling Requirements: Flush mounts are engineered for flat ceilings. For sloped or vaulted ceilings, consider a semi-flush or pendant alternative.
• Electrical Connection: Every fixture is hardwired and connects directly to your household electrical system.
• Measurements: Need the exact depth or canopy diameter? Our team can provide those details — Contact Us.

What You Will Need

• Screwdriver
• Non-contact voltage tester
• Wire stripper
• Wire connectors (included)
• Step ladder
• Drill (only if working with a new junction box or non-standard ceiling)

Setup Instructions

Step 1: Disconnect the Power

At the breaker panel, turn off the circuit supplying the ceiling light location. Use a voltage tester to confirm the wires are no longer carrying current.

Step 2: Detach the Cover

Most flush mount fixtures include a removable outer shade or diffuser. Carefully twist or unclip this piece to reveal the mounting plate and wiring area.

Step 3: Fasten the Mounting Bracket

Attach the included bracket to the junction box using the supplied screws. Ensure the bracket sits securely and level.

Step 4: Complete the Wiring

Match the fixture leads with the ceiling wires:

• Black (hot) to black
• White (neutral) to white
• Green or bare copper (ground) to the ground wire or grounding screw

Secure each connection with a wire connector and fold the wires neatly into the junction box.

Step 5: Position the Fixture Base

Lift the base into place and align it with the mounting bracket. Tighten the provided screws so the fixture sits flush and level against the ceiling.

Step 6: Replace the Cover

Reattach the shade or diffuser following the fixture's design — this may involve twisting, clipping, or fastening with small screws.

Step 7: Restore Power and Verify

Re-energize the circuit at the breaker panel. Test the fixture with the wall switch to confirm proper operation.

Helpful Reminders

• An excellent choice for standard-height or low ceilings — ideal in hallways, bedrooms, and closets.
• Verify that the ceiling junction box is rated to support the fixture's weight.
• Observe local electrical codes and safety regulations throughout the process.
• When in doubt, engage a licensed electrician.

Questions?

Our team is available to assist with custom requests or technical inquiries.
Email: hey@navadecor.co

Every order is eligible for customization by our skilled in-house team.

Frequently Requested Modifications

• Adjusted hanging or suspension length
• Custom material finish or paint color
• Modified light emission color or temperature
• Dimmer integration
• Scaled dimensions (larger or smaller)
• Complete fixture redesign based on your specifications
