Product Sheet · Cabinet Pull
Vilac Cabinet Pull
A curved bar, comfortable daily
·
Vilac Cabinet Pull
Cabinet Pull · 6 sizes
ND-VILA3-1 — ND-VILA3-16
Vilac keeps its brass body clean and unbroken, save for a gentle curve rolling into each end. That small softening is what makes it comfortable to grip dozens of times a day, no sharp edges to catch on. The metal carries a soft warmth that suits both painted cabinetry and bare wood.
Specifications · Shared

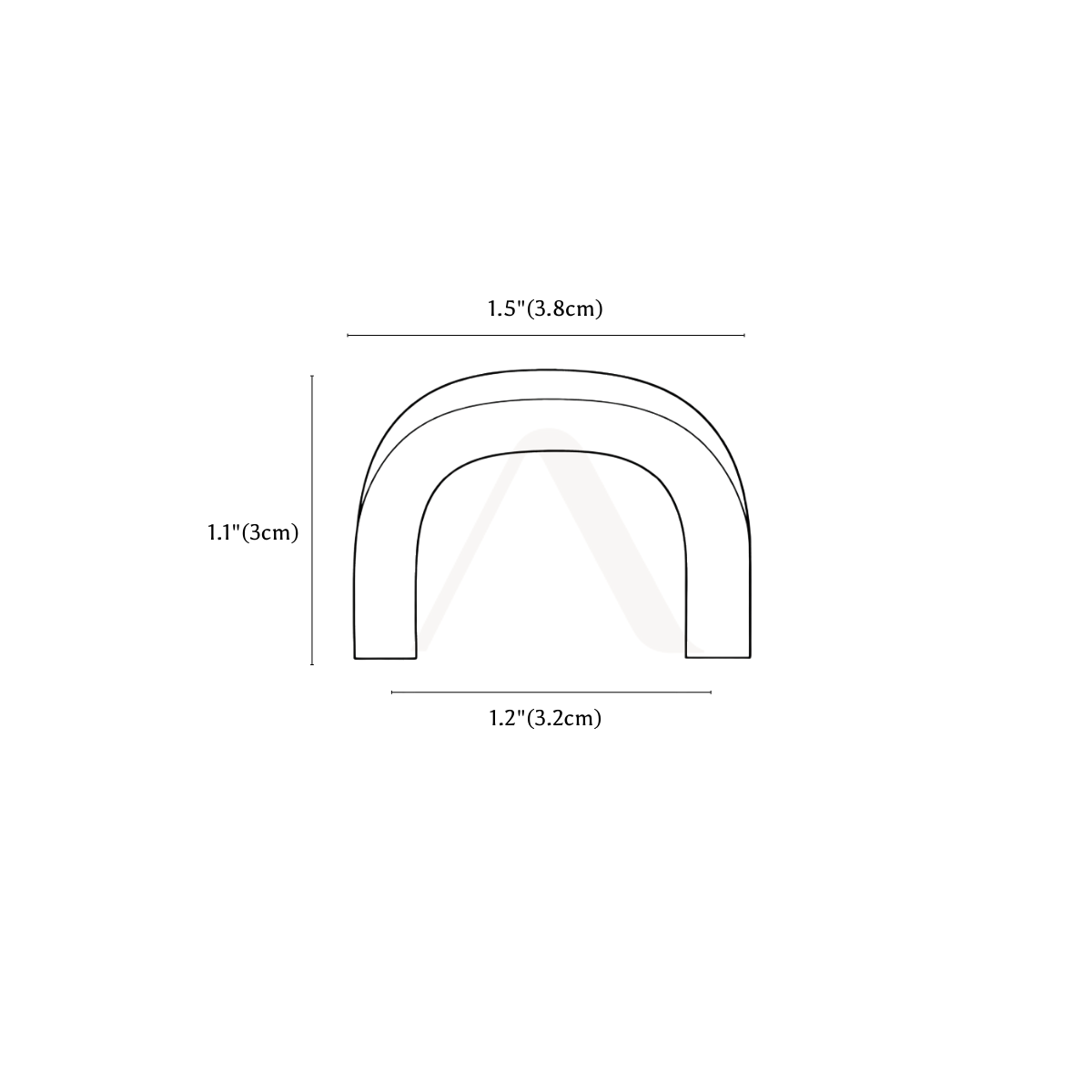

Knob
L1.5" (3.8cm) x H1.1" (3cm)

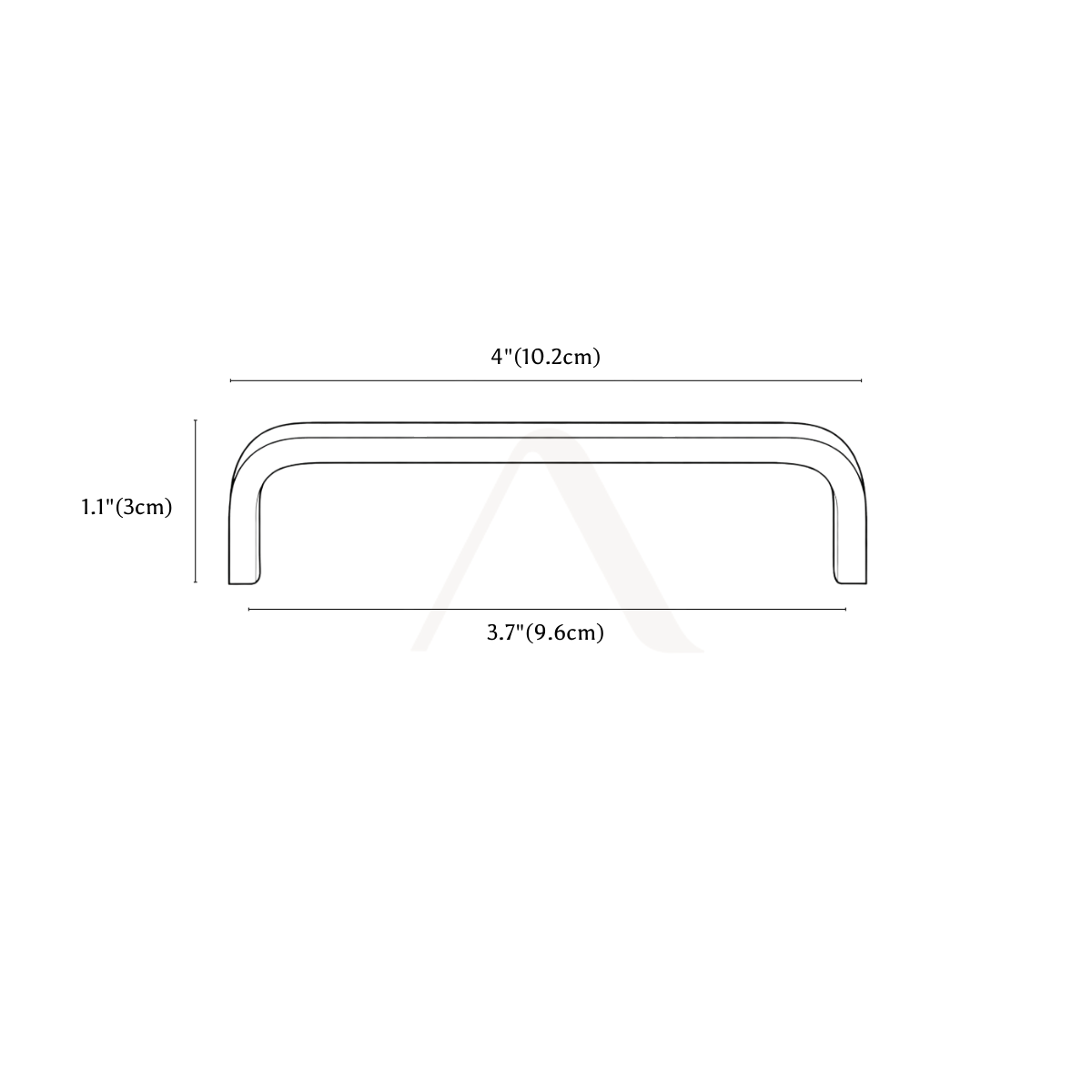

Pull bar
L4" (10.2cm) x H1.1" (3cm)
Pull bar
L5.2" (13.4cm) x H1.1" (3cm)
Pull bar
L6.5" (16.6cm) x H1.1" (3cm)
Pull bar
L7.7" (19.8cm) x H1.1" (3cm)
Pull bar
L9" (23cm) x H1.1" (3cm)
Hole spacing
3.7" / 5" / 6.2" / 7.5" / 8.8"
Finish
Vintage brass, brass, brushed nickel
Weight
35g, 70g, 90g, 100g, 120g, 140g
Application
Cupboard, cabinets, drawer, wardrobe
Color
BrassVintage BrassBrushed Nickel
Configurations · 6 sizes
4 drawings supplied — refer to the dimensions in the specifications
Key features
- Solid brass with a clean, unbroken profile
- Smooth curved ends improve everyday grip comfort
- Suits both painted and natural wood cabinetry
- Coordinated knob and pull bar in six lengths
- Three finishes — vintage brass, brass, brushed nickel
