Product Sheet · Cabinet Pull

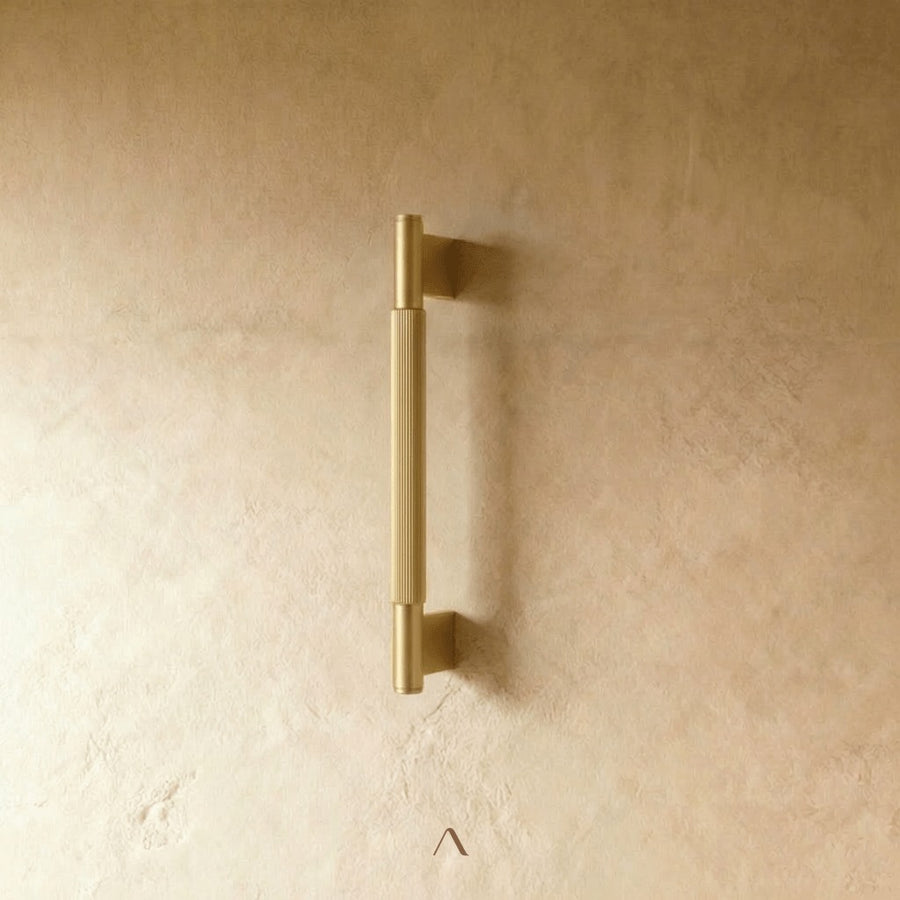

Vielha Cabinet Pull

Vielha Cabinet Pull

One clean line, in solid brass
navadecor.co Revised 08 · 2026
Nava Decor · Vielha Cabinet Pull
Cabinet Pull · 3 sizes
ND-VIEL-1 — ND-VIEL-7

Vielha reduces a pull to its simplest form: a clean cylindrical bar, solid brass, with just enough heft to feel substantial in the hand. Installed vertically or horizontally, it sets a quiet visual rhythm down a run of drawers, letting the material's warmth carry the detail rather than an ornate shape.

Specifications · Shared
Pull bar lengths
5.1" / 6.4" / 7.7" (all H 1.4")
Hole spacing
3.7" / 5" / 6.2"
Material
Brass
Finish
Brass, brushed nickel, black
Weight
210g–290g depending on size
Grip style
Ergonomic
Application
Cupboards, cabinets, drawers, wardrobes
Color
Brushed BrassBrushed NickelBlack
Configurations · 3 sizes

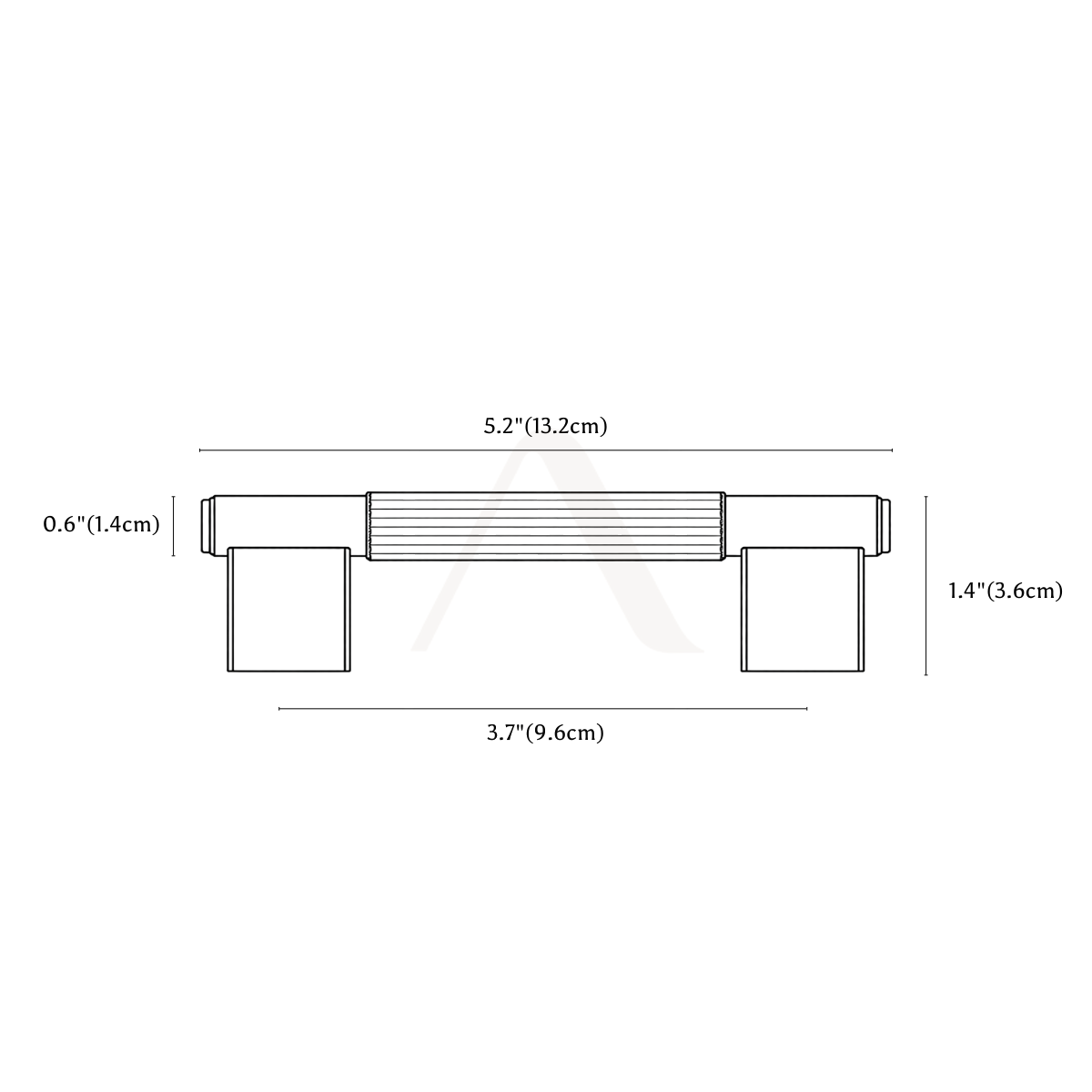

Dimension drawing 1
Hole To Hole: L3.7"(9.6cm) ND-VIEL-1

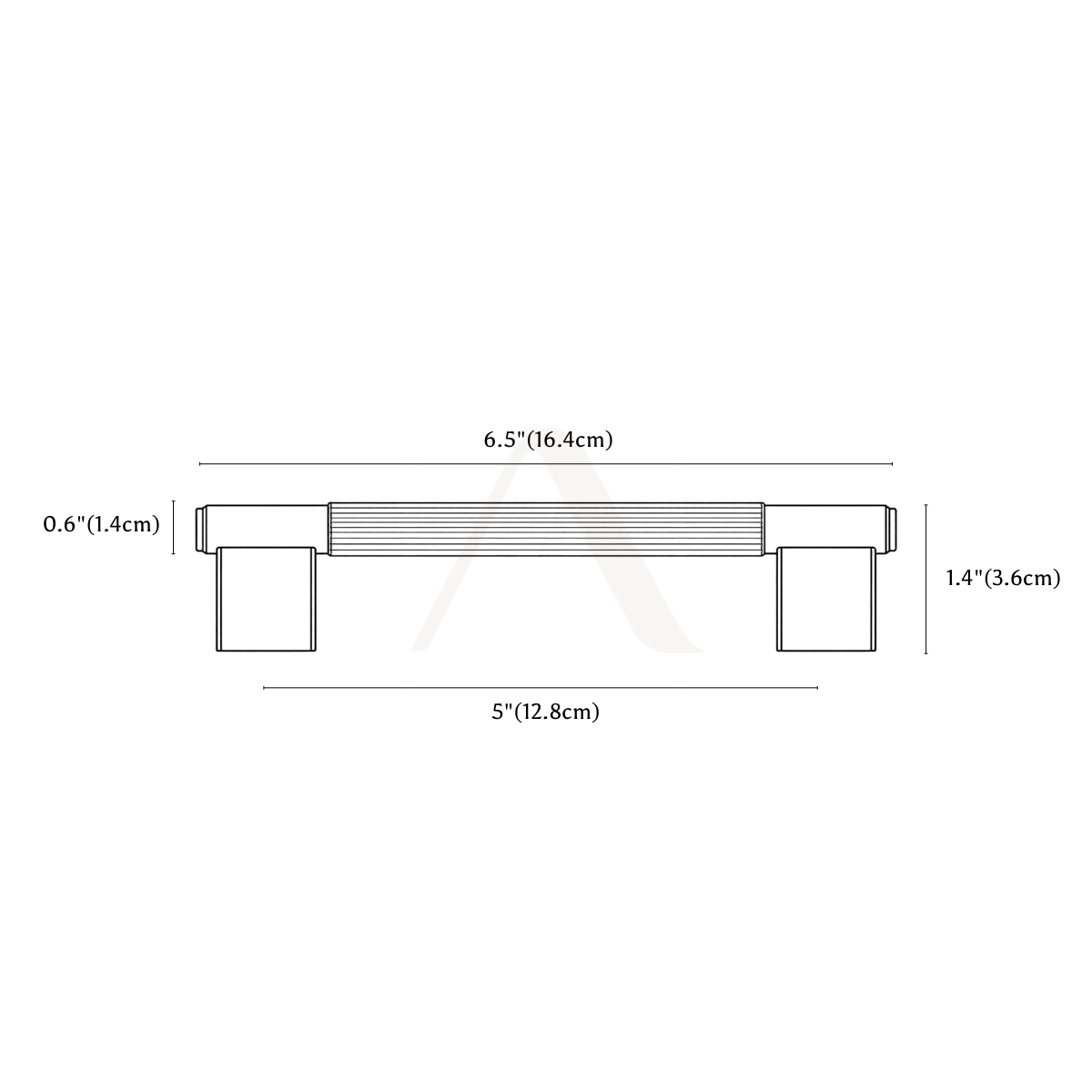

Dimension drawing 2
Hole To Hole: L5"(12.8cm) ND-VIEL-4

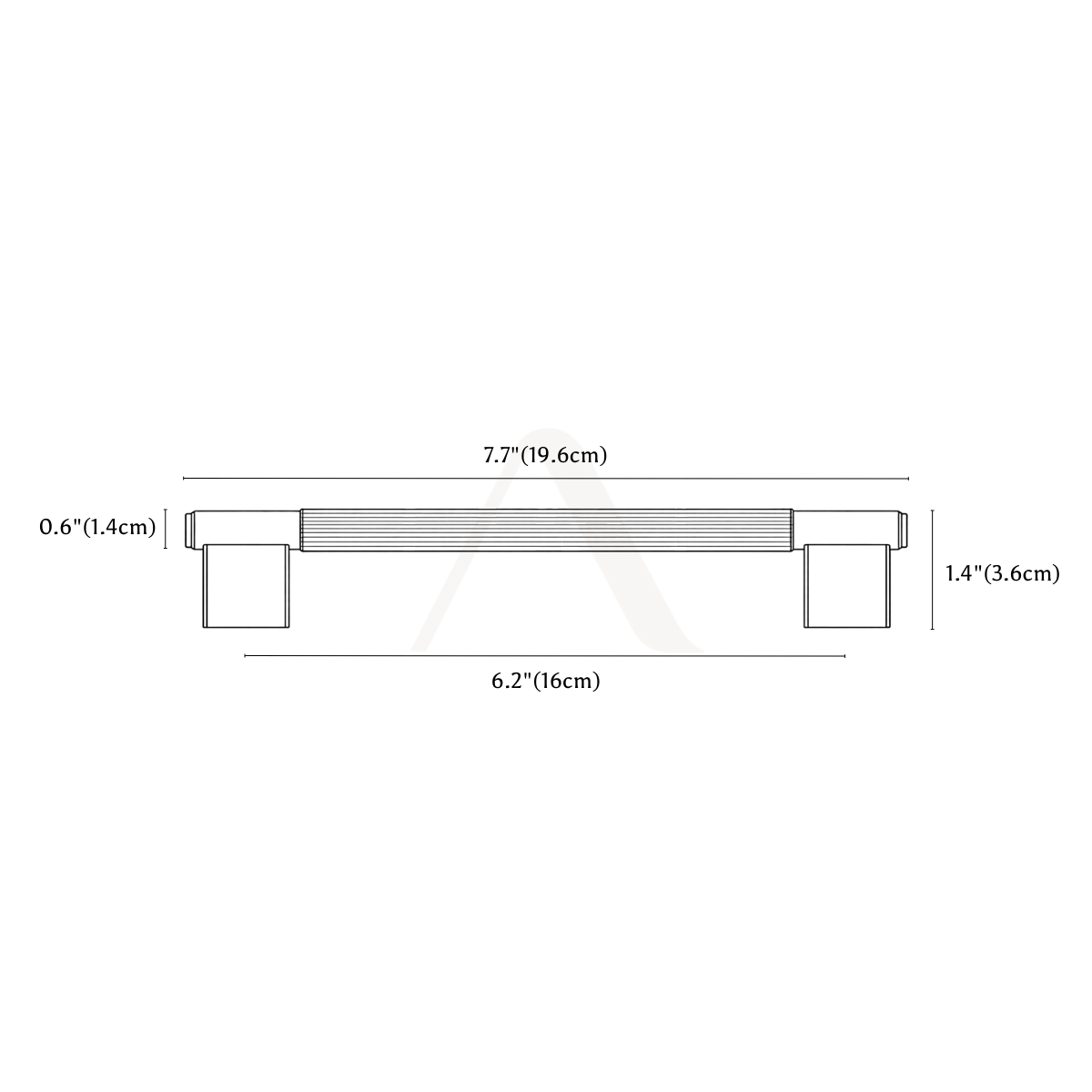

Dimension drawing 3
Hole To Hole: L6.2"(16cm) ND-VIEL-7
One drawing per size — dimension & SKU below each
Key features
  • Solid brass construction with a natural, evolving patina
  • Clean cylindrical silhouette with a balanced architectural presence
  • Smooth, comfortable grip that feels substantial in hand
  • Installs vertically or horizontally to suit the layout
  • Three finishes — brass, brushed nickel, and black
