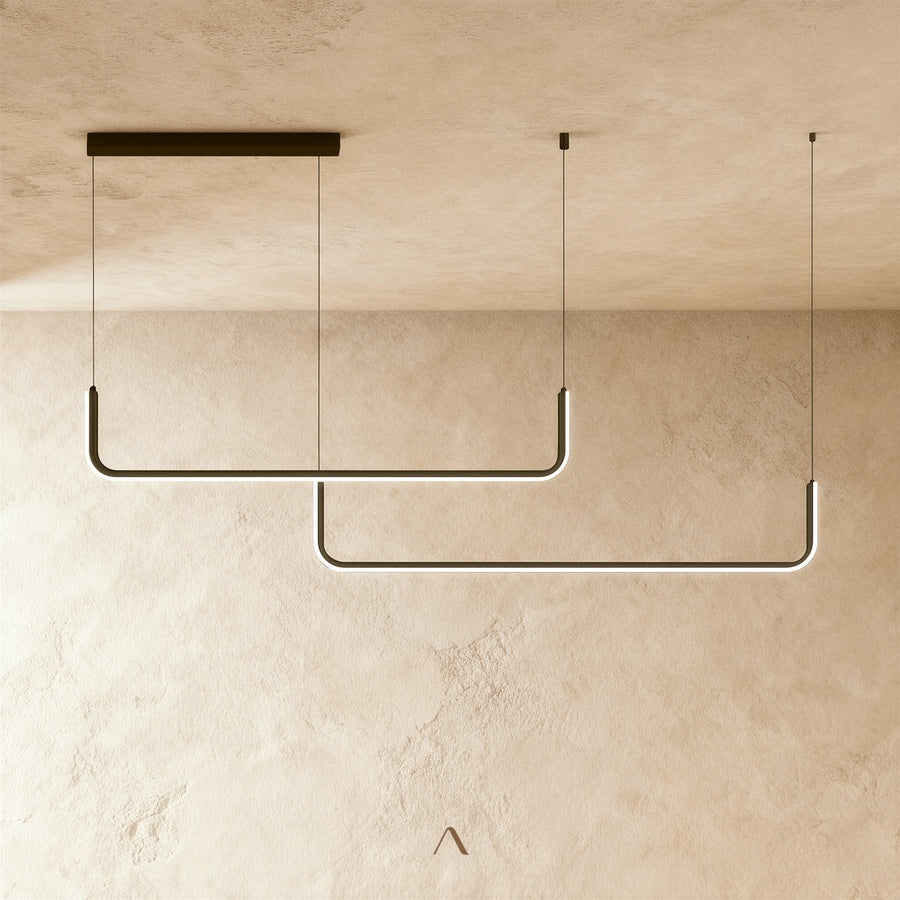

Tympanum Chandelier

· Tympanum Chandelier

Chandelier · 3 sizes

ND-TYMP-SIN — ND-TYMP-DOU7

The Tympanum draws a clean horizontal line across the room — one or two illuminated bars in acrylic and aluminium, set in black or gold. The glow runs evenly along the full length, so the fixture reads as architecture rather than decoration. Three sizes from 90 to 150 cm, height adjustable to 1.2 m, with warm, cool, or remote CCT modes.

Specifications · Shared

Material

Acrylic, Aluminium

Finish

Black / Gold

Light Source

Integrated LED

Voltage

90–260VAC

Installation Type

Hardwired

Dimensions

L90 cm x H120 cm; Double Side — L120 cm x H120 cm; Double Centre — L150 cm x H120 cm

Wattage (Lumens)

Single 21W (2310 lm); Double Side 42W (4620 lm); Double Centre 42W (4620 lm)

Weight

1 kg / 2 kg

Chain/Cord Length

Up to 1.2 m, adjustable

Sloped Ceiling Compatible

Upon Request

Certifications

UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, VDE

Color

BlackGold

Emitting Color

Cool White (6000K)Warm White (3000K)Remote Control (Dimming + 3000K to 6000K)

Configurations · 3 sizes

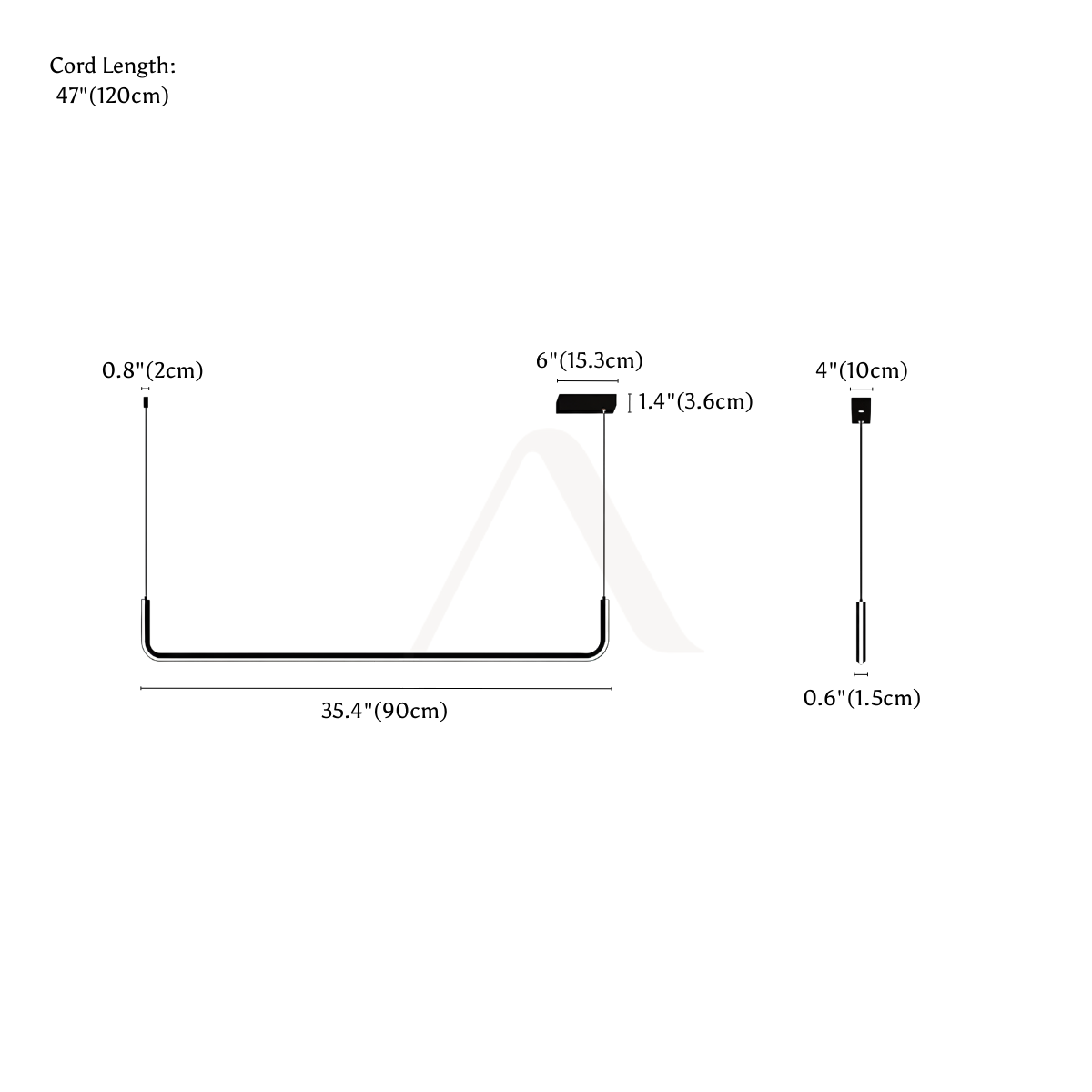

Single: L35.4"(90cm) x H47.2"(120cm) / 21W ND-TYMP-SIN

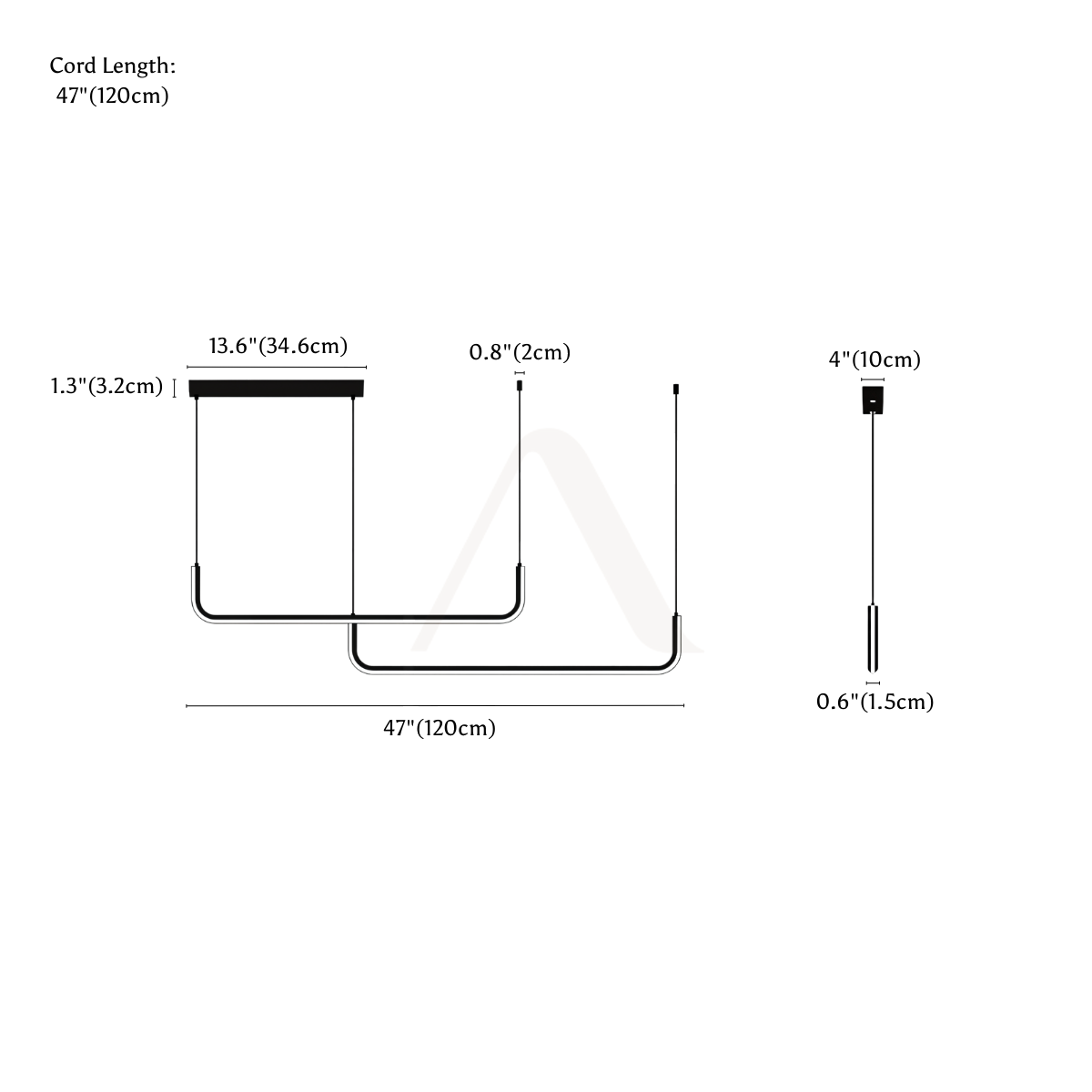

Double Side: L47.2"(120cm) x H47.2"(120cm) / 42W ND-TYMP-DOU

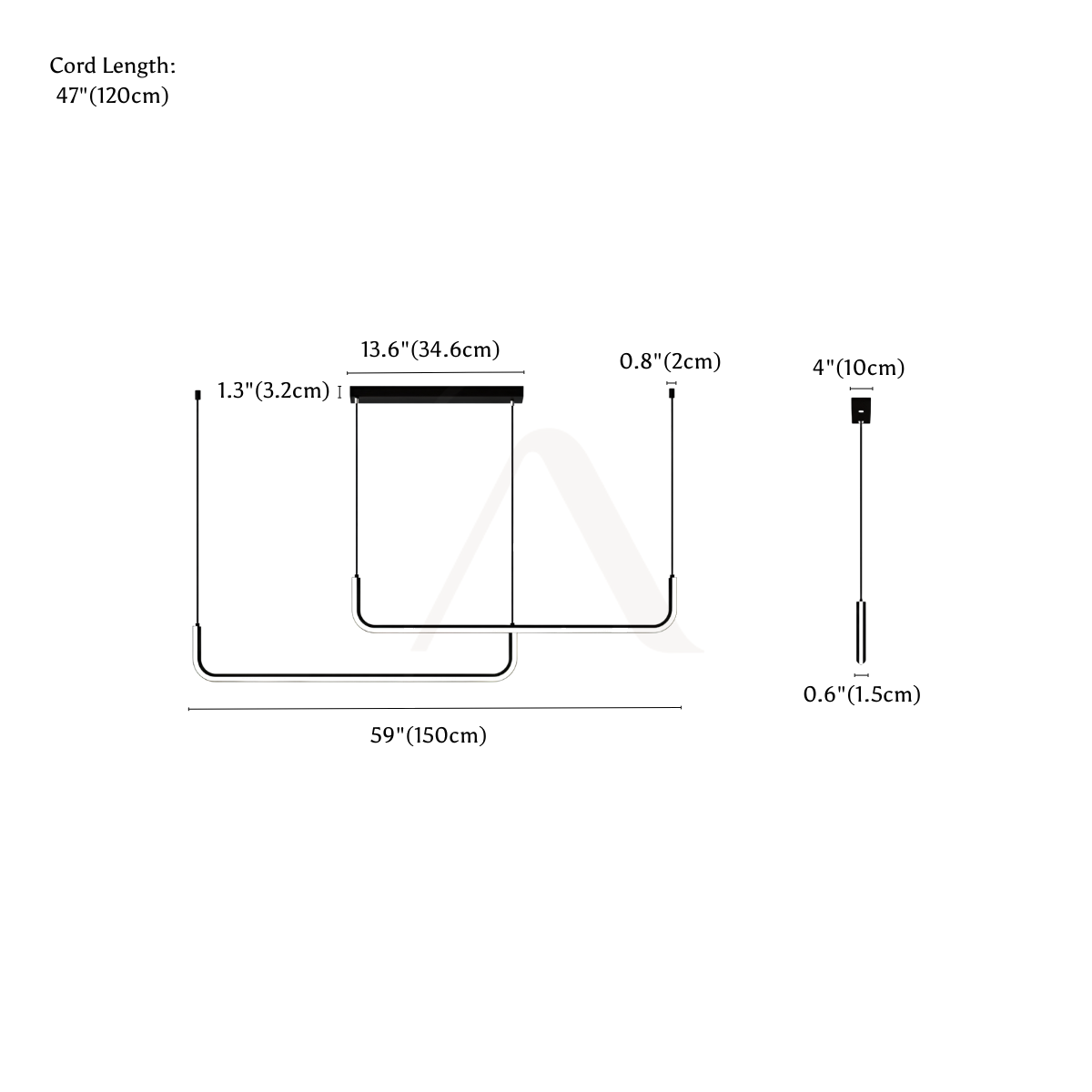

Double Center: L59"(150cm) x H47.2"(120cm) / 42W ND-TYMP-DOU7

One drawing per size — dimension & SKU below each

Key features

• Continuous, even light along the full bar length
• Three configurations: single, double-side, double-centre
• Black or gold aluminium finish — two design registers
• Height-adjustable wire to 1.2 m — suits varied ceiling heights
• 50,000-hour integrated LED, three CCT modes including remote
