Nava Decor
Product Sheet · Downlight

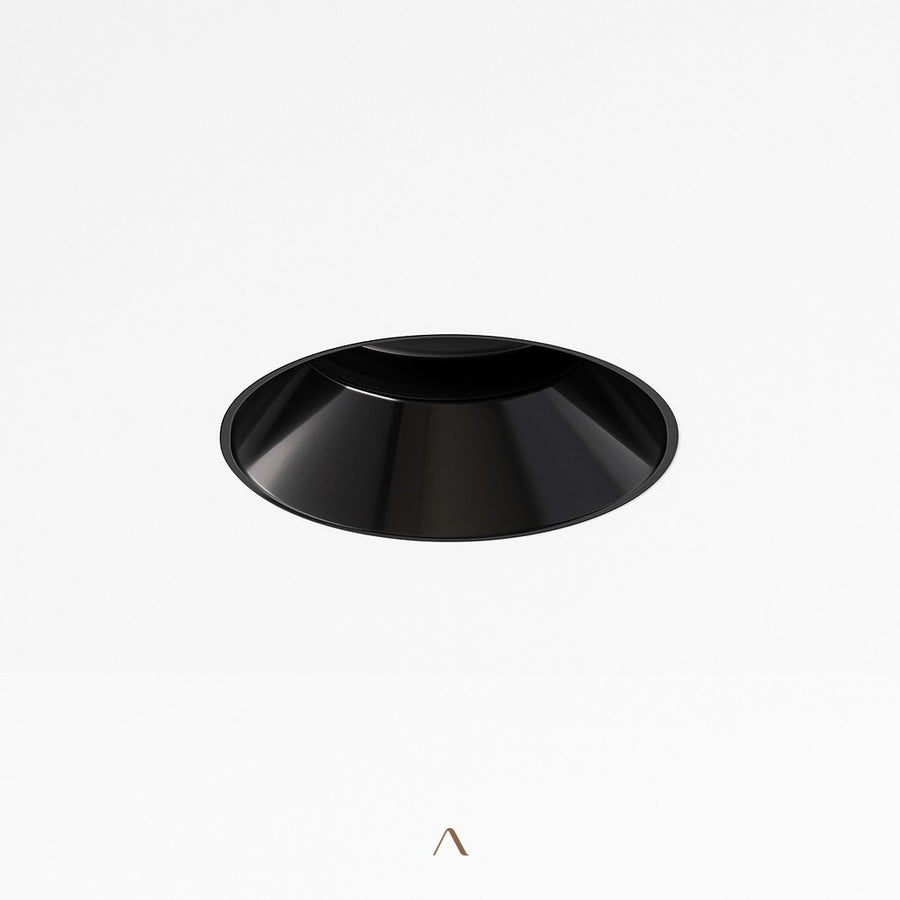

Stratiformis Downlight

Stratiformis Downlight

Trimless aluminium, flush with the ceiling
navadecor.co Revised 07 · 2026
Nava Decor · Stratiformis Downlight
Downlight · 6 sizes
ND-STRA-A2 — ND-STRA-C6

The Stratiformis Downlight is designed to disappear into the ceiling: a white aluminium housing installed trimless and plaster-finished, so the only thing visible is the beam of light it puts out. GU10 or MR16 bulb base; single or double configuration; anti-glare mesh available. Sloped-ceiling compatible, dimmable on request. For spaces where the architecture should lead and the fixture should not.

Specifications · Shared
Material
Aluminium
Finish
White
Dimensions
Single L12 x W6 cm, Double L24 x W12 cm
Light Source
LED GU10 or MR16 (replaceable, not included)
Output
Single 5W (500 lm), Double 10W (1000 lm)
Weight
700–800 g
Voltage
90–260VAC
Sloped Ceiling
Compatible
Installation
Hardwired
Dimmable
Upon Request
Mesh
Optional (with or without)
Certifications
UL, CE, CCC, FCC, ROHS, SAA
Style
Without MeshWith Mesh
Base Type
GU10MR16
Key features
  • Trimless design — flush to the ceiling, no visible rim
  • Single or double configuration for flexible layouts
  • Optional anti-glare mesh softens the beam output
  • GU10 or MR16 bulb base — bulbs sold separately
  • Dimmable on request, sloped-ceiling compatible
For specifier use Submittal
Job name
Fixture type
Qty
Notes
navadecor.co · hey@navadecor.co Page 2 of 2 · Rev 07.2026 Specifications subject to change without notice
