Nava Decor
Product Sheet · Cabinet Pull

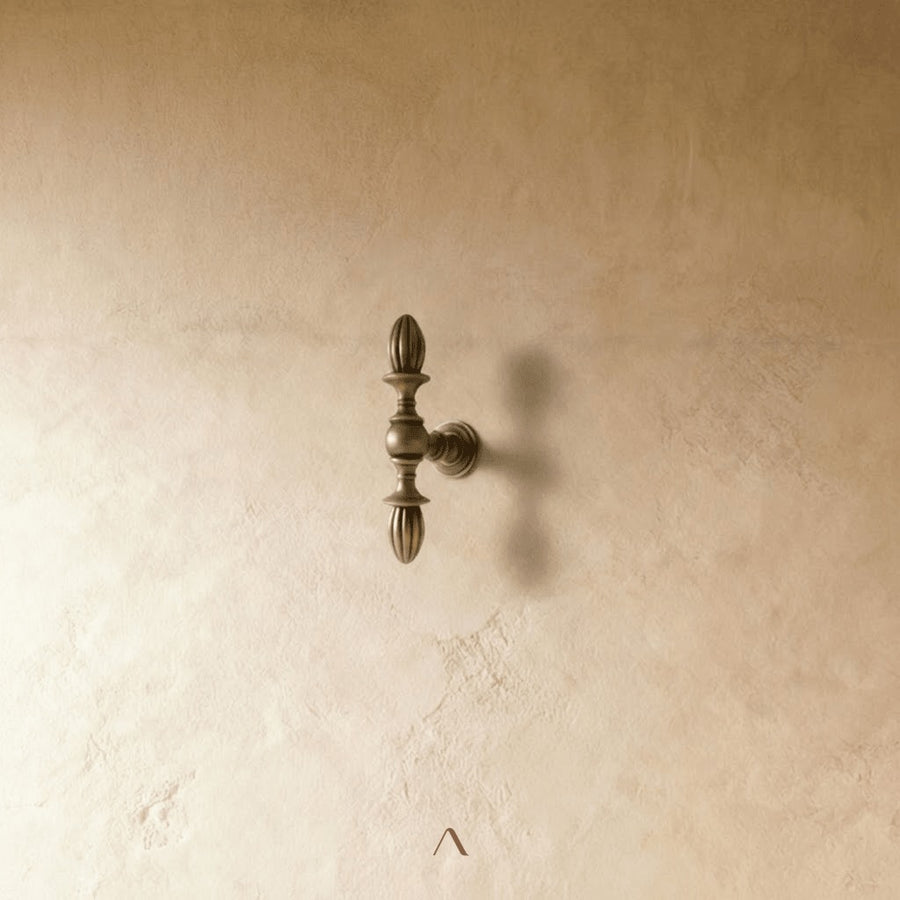

Rialp Cabinet Pull

Rialp Cabinet Pull

Brass, faceted and weighted right
navadecor.co Revised 08 · 2026
Nava Decor · Rialp Cabinet Pull
Cabinet Pull · 6 sizes
ND-RIAL-1 — ND-RIAL-6

Rialp carries a faceted knob and elongated pull in matching profile, tapered ends bringing a small architectural rhythm to a run of drawers. Solid brass gives it real weight in the hand, not the hollow lightness of cheaper hardware. Left alone, the brass deepens into its own patina — a detail that improves the more it's used.

Specifications · Shared
Knob
D1.2" x H1.3"
T-Knob
L3" x W0.6" x H1.4"
Pull bar
L6.8" / L8.1" / L9.4" / L11.8", H1.4"
Hole spacing
3.7" / 5" / 6.3" / 8.8"
Material
Brass
Finish
Bronze
Weight
78g–157g depending on size
Grip style
Smooth
Application
Cupboard, cabinets, drawer, wardrobe
Configurations · 6 sizes

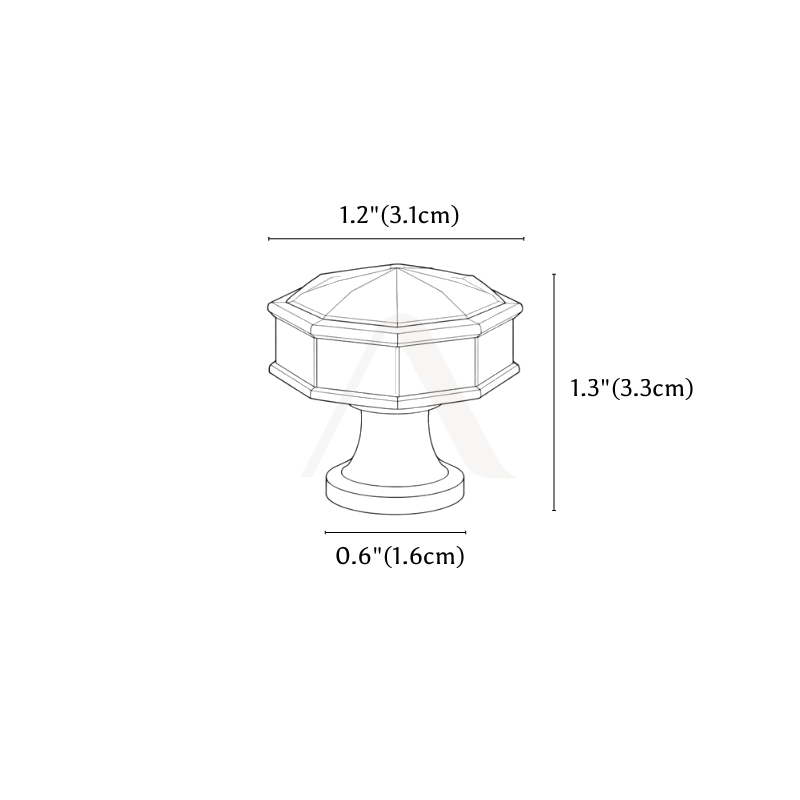

Dimension drawing 1

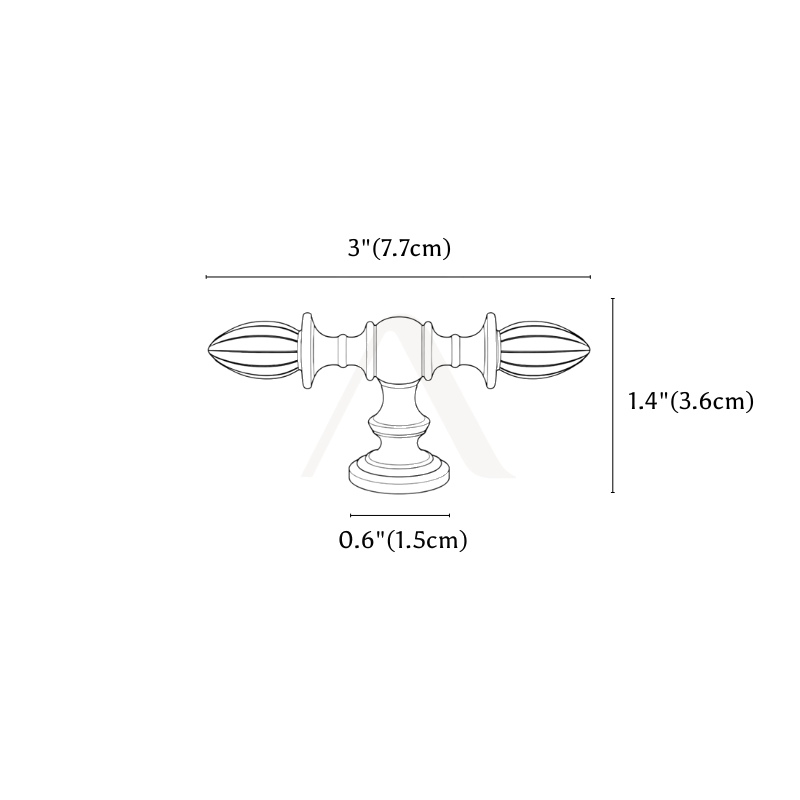

Dimension drawing 2

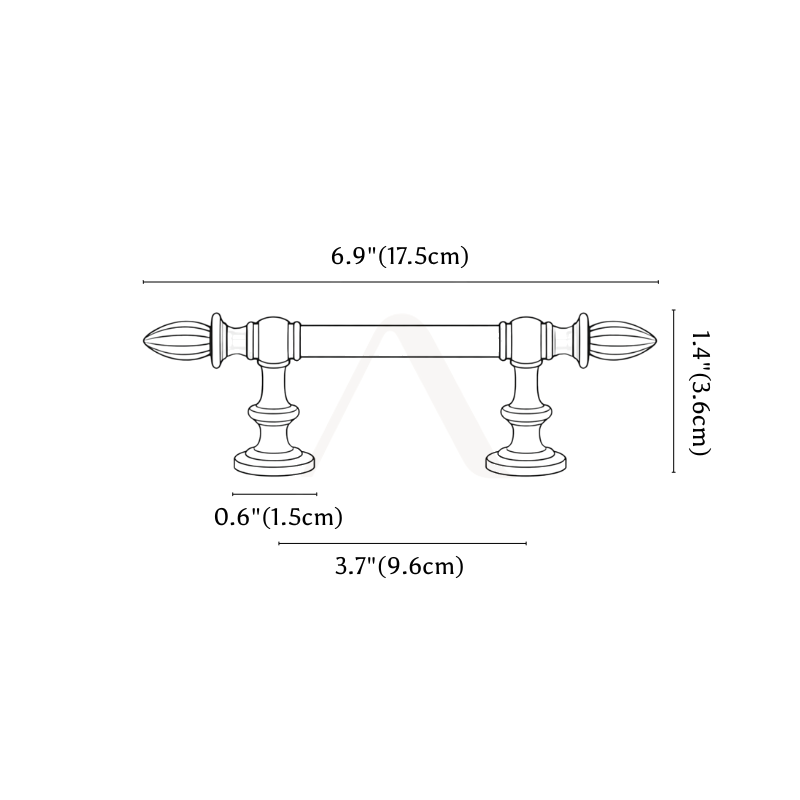

Dimension drawing 3

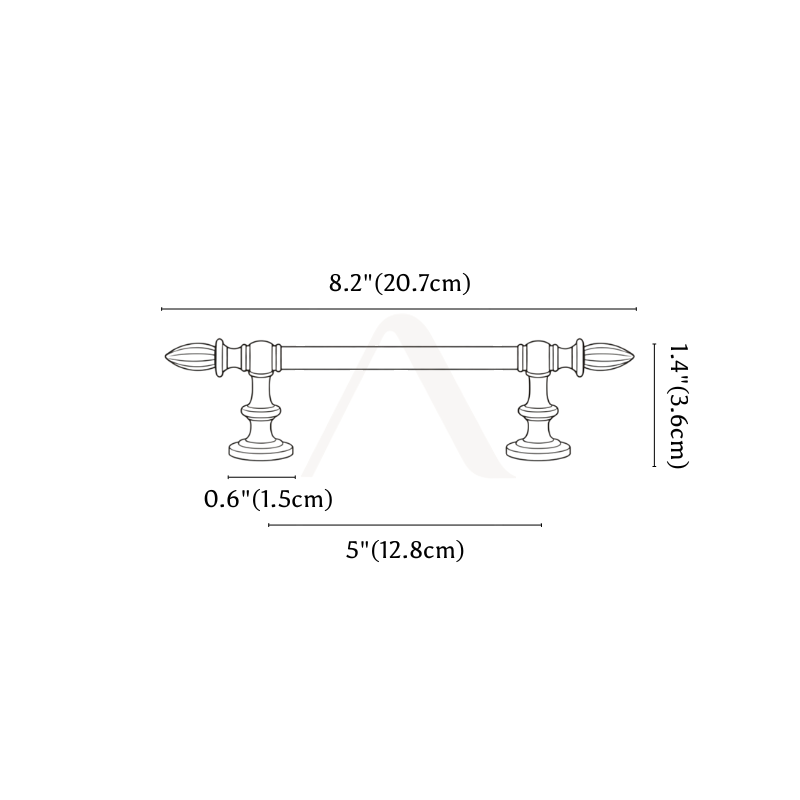

Dimension drawing 4
4 drawings supplied — refer to the dimensions in the specifications
Key features
  • Solid brass — substantial weight, lasting durability
  • Faceted knob and pull share one design language
  • Tapered ends with subtle fluted detailing
  • Suits kitchens, wardrobes, and bathroom vanities
  • Develops a natural patina with everyday use
For specifier use Submittal
Job name
Fixture type
Qty
Notes
navadecor.co · hey@navadecor.co Page 2 of 2 · Rev 08.2026 Specifications subject to change without notice
