Product Sheet · Cabinet Pull
Posadas Cabinet Pull
A soft curve across the drawer
·
Posadas Cabinet Pull
Cabinet Pull · 4 sizes
ND-POSA-1 — ND-POSA-10
The Posadas takes the standard straight pull bar and lets it flow instead, a shallow curve running the full length instead of a hard right angle. Anodized aluminum keeps it light in the hand but stable under daily pulling. Gold, black, or grey, in four lengths from 18 to 50 cm to match cabinet, drawer, or wardrobe.
Specifications · Shared
Dimensions
L 18cm / L 25.6cm / L 35cm / L 50cm x W 1cm x H 2.5cm
Hole spacing
16cm / 22.4cm / 32cm / 38.4cm
Weight
88g / 105g / 120g / 140g
Application
Cupboard, Cabinets, Drawer, Wardrobe
Configurations · 4 sizes
Hole To Hole: L6.3"(16cm)
ND-POSA-1
Hole To Hole: L8.8"(22.4cm)
ND-POSA-4
Hole To Hole: L12.6"(32cm)
ND-POSA-7
Hole To Hole: L15.1"(38.4cm)
ND-POSA-10

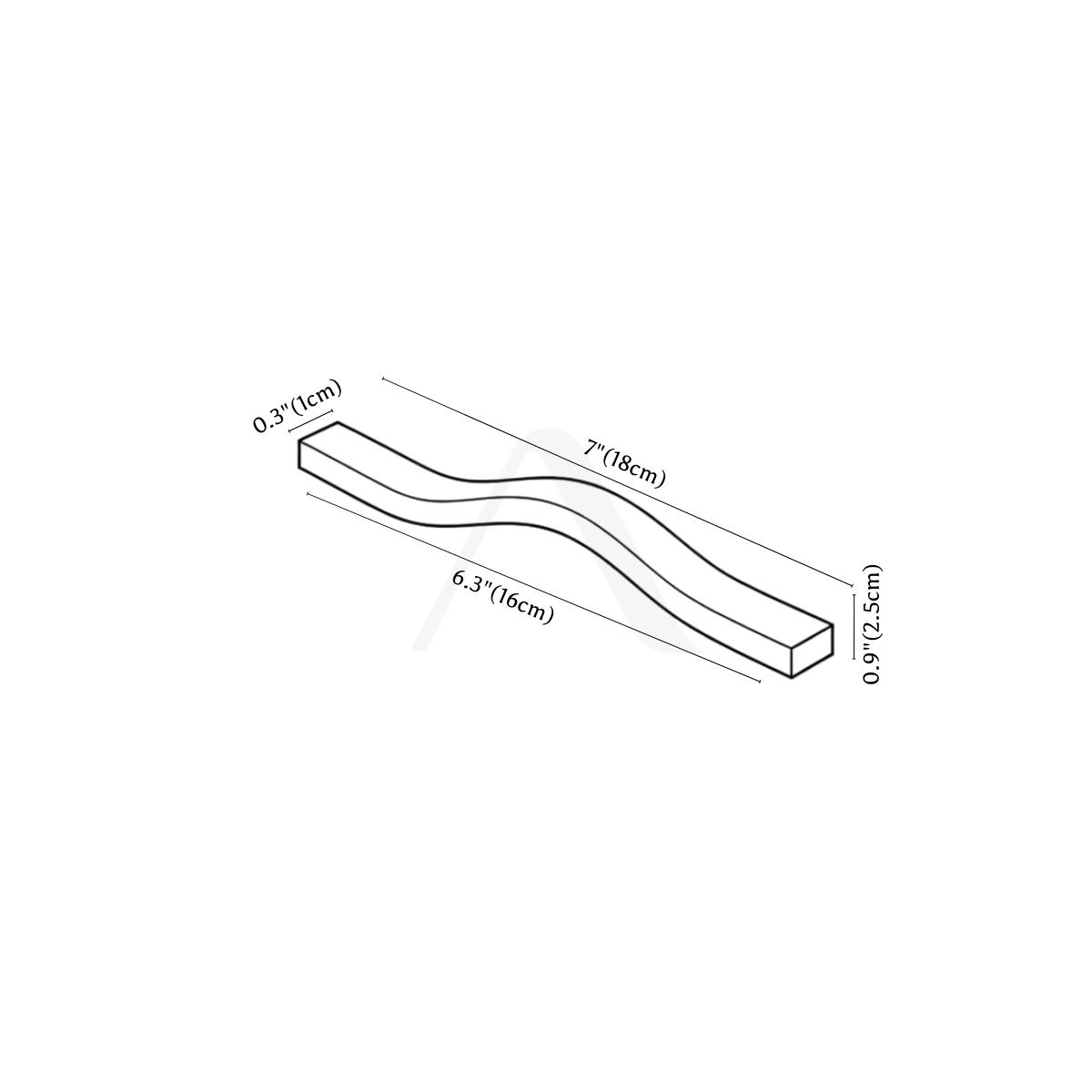

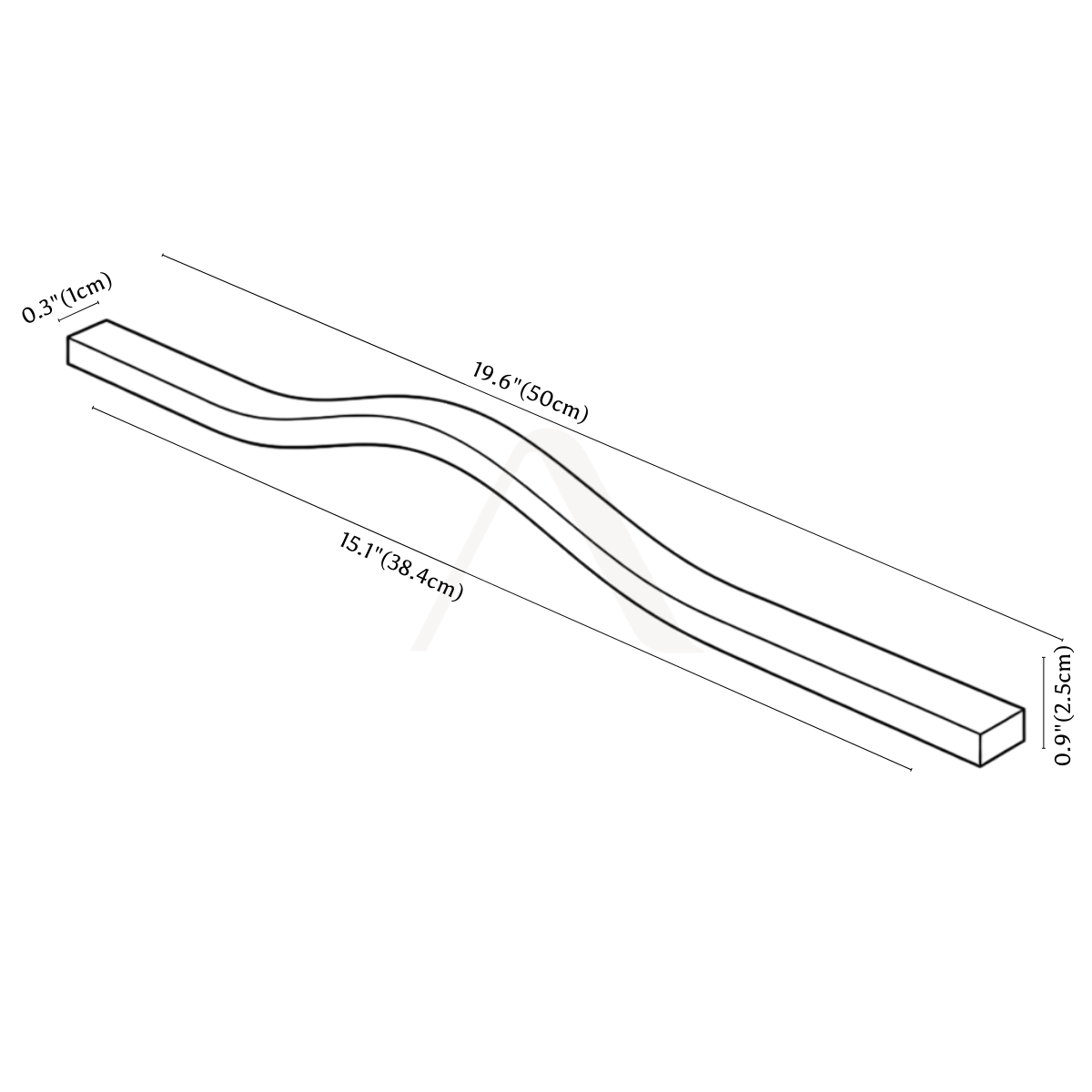

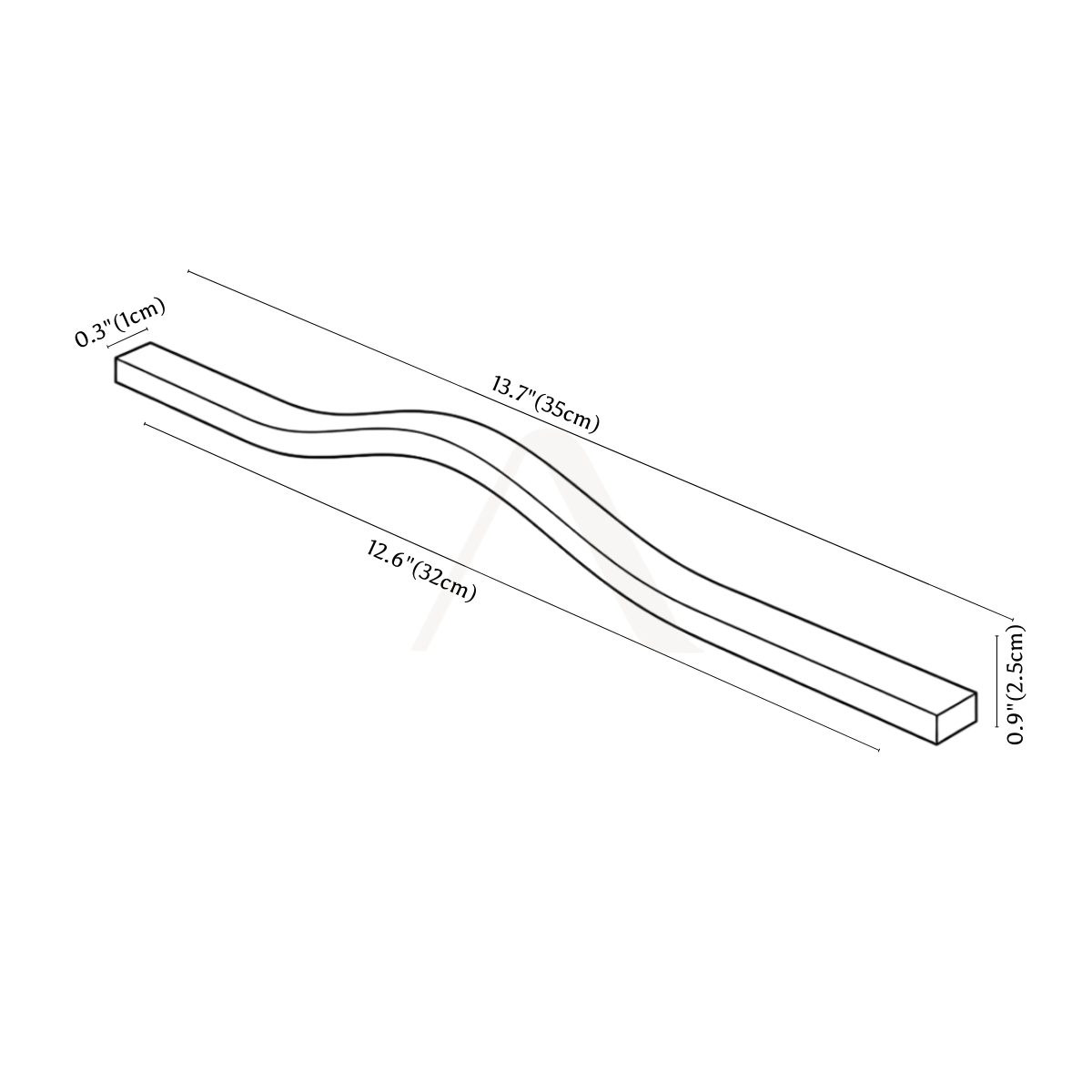

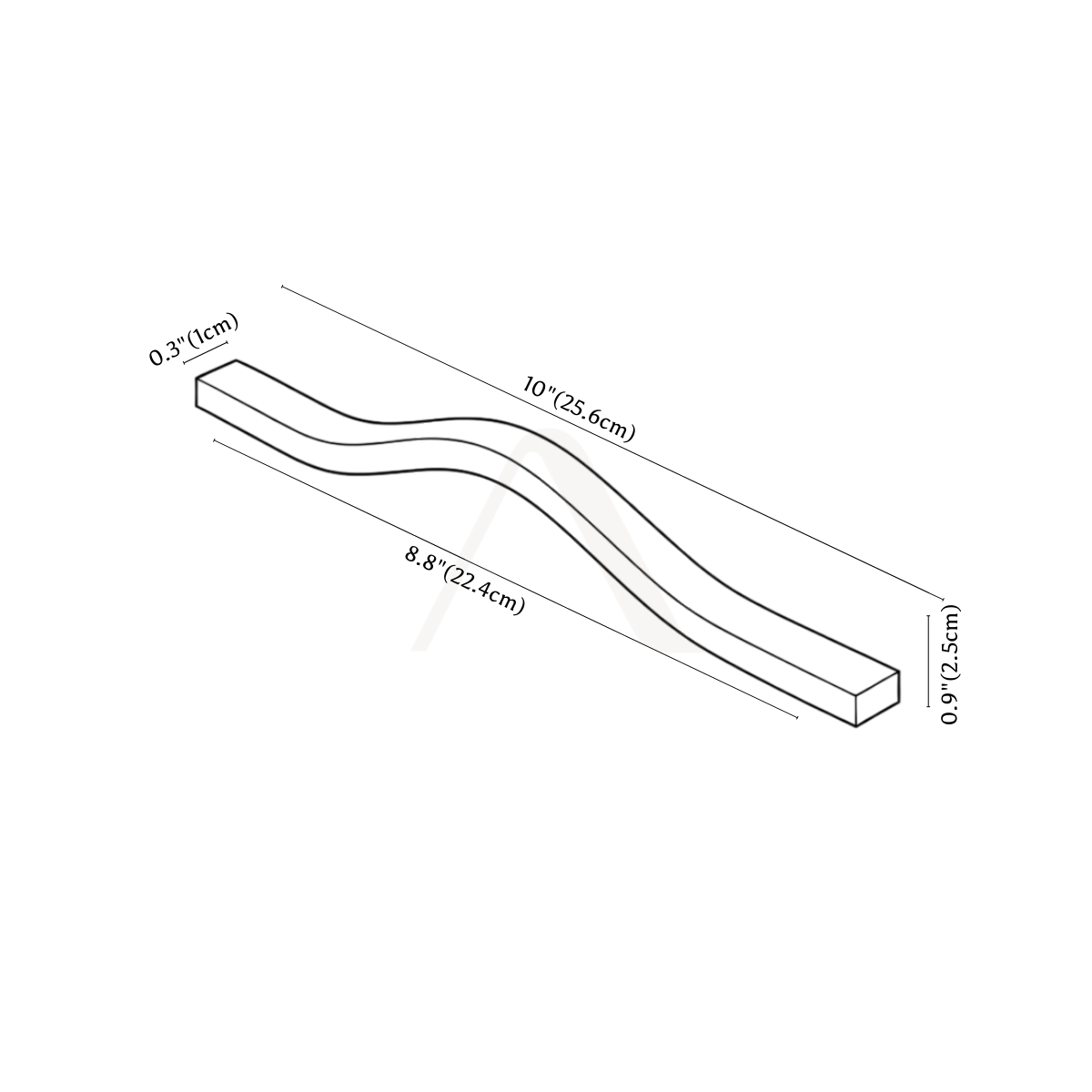

One drawing per size — dimension & SKU below each
Key features
- Gentle curved profile softens cabinet lines
- Lightweight anodized aluminum with a steady grip
- Four lengths, from 18 cm to 50 cm
- Three finishes — gold, black, grey
- Fits cabinets, drawers, wardrobes, and vanities
