Product Sheet · Cabinet Pull
Oliana Cabinet Pull

Oliana Cabinet Pull

Brass knob, matching pull bar
navadecor.co Revised 08 · 2026
Nava Decor · Oliana Cabinet Pull
Cabinet Pull · 4 sizes
ND-OLIA-1 — ND-OLIA-4

Oliana pairs a rounded knob with a slender pull bar, both cut from solid brass and finished with the same soft brush. Gentle contours meet the hand comfortably on either piece, so a kitchen or wardrobe reads as one considered set rather than mismatched hardware. Brass ages here, warming with every touch.

Specifications · Shared
Knob
D1" (2.5cm) x H1.4" (3.6cm)
Pull bar
L7" (18cm) x H1.4" (3.6cm)
Pull bar
L18.3" (21.2cm) x H1.4" (3.6cm)
Pull bar
L9.6" (24.4cm) x H1.4" (3.6cm)
Hole spacing
5" (12.8cm) / 6.2" (16cm) / 7.5" (19.2cm)
Material
Brass
Finish
Vintage brass
Weight
80g / 150g / 170g / 195g
Grip style
Ergonomic
Application
Cupboard, cabinets, drawer, wardrobe
Configurations · 4 sizes

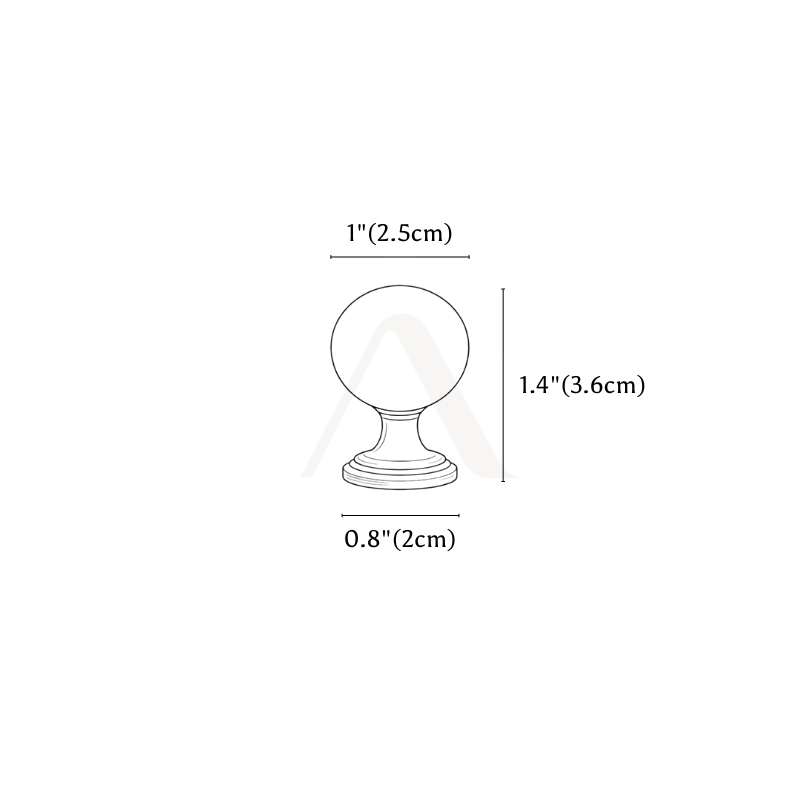

Dimension drawing 1
Knob: D1"(2.5cm) x H1.4"(3.6cm) ND-OLIA-1

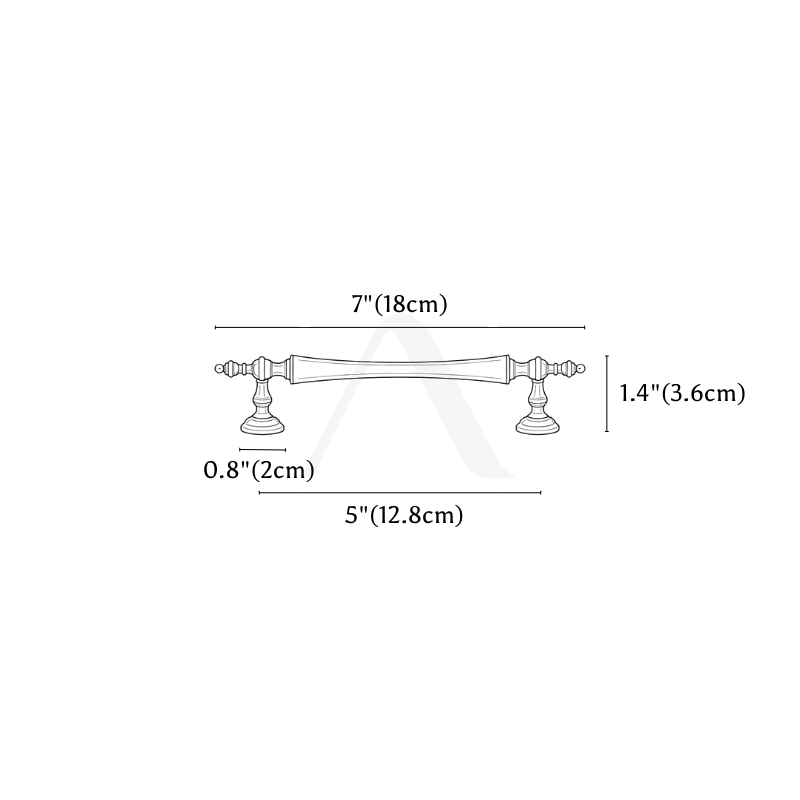

Dimension drawing 2
Hole To Hole: L5"(12.8cm) ND-OLIA-2

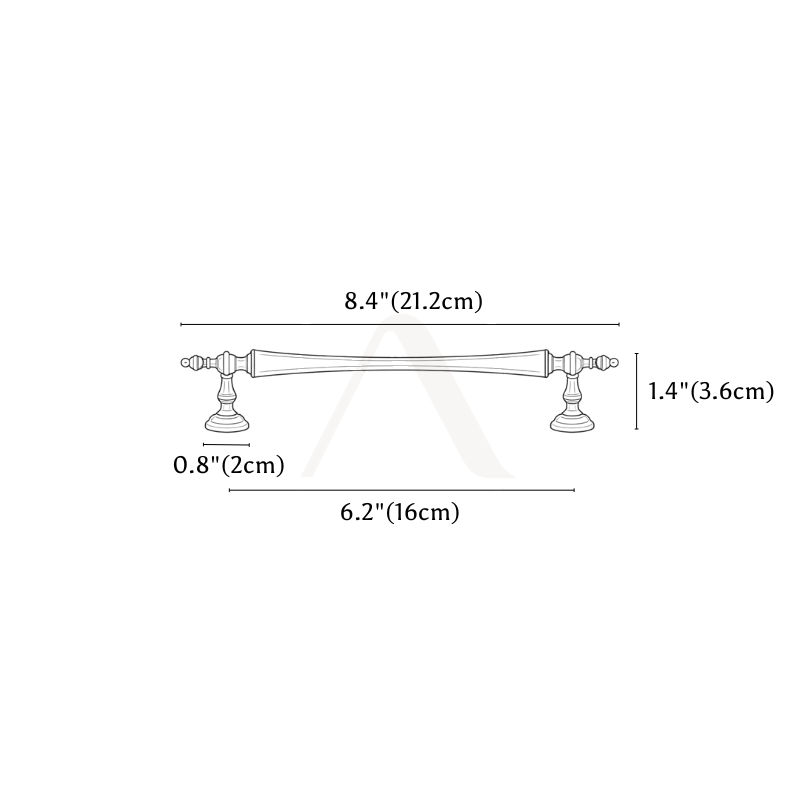

Dimension drawing 3
Hole To Hole: L6.2"(16cm) ND-OLIA-3

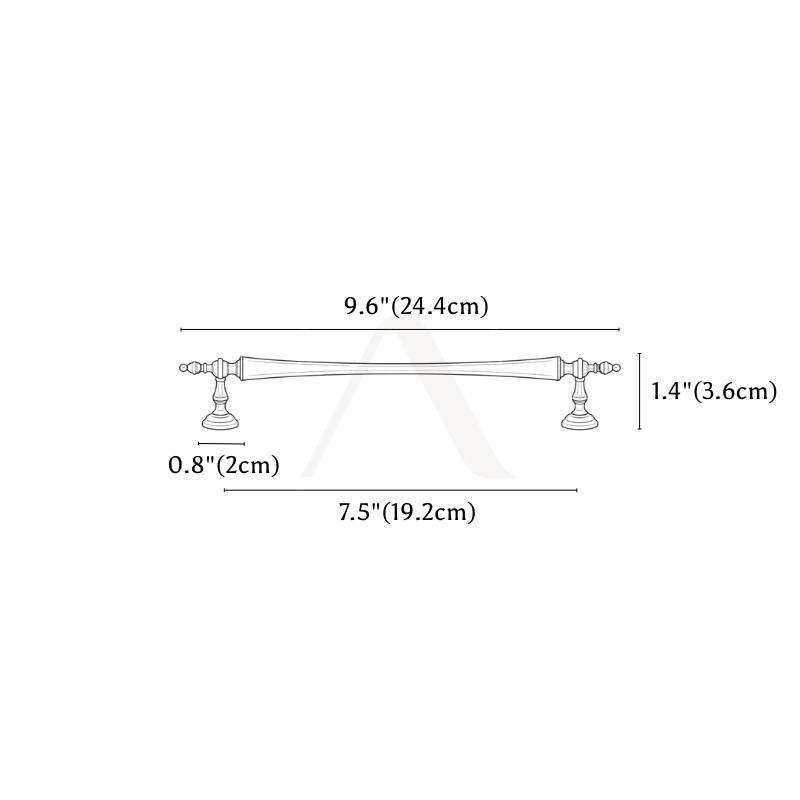

Dimension drawing 4
Hole To Hole: L7.5"(19.2cm) ND-OLIA-4
One drawing per size — dimension & SKU below each
Key features
  • Solid brass knob and pull bar, cut for a coordinated set
  • Softly brushed finish develops a natural patina
  • Rounded contours feel smooth and reassuring to grip
  • Knob suits smaller doors, pull bar suits drawers
  • Works across kitchens, wardrobes, and vanities
For specifier use Submittal
Job name
Fixture type
Qty
Notes
navadecor.co · hey@navadecor.co Page 2 of 2 · Rev 08.2026 Specifications subject to change without notice
