Magma Track Light

· Magma Track Light

Track Light · 22 sizes

ND-MAGM-MAG — ND-MAGM-ZIG

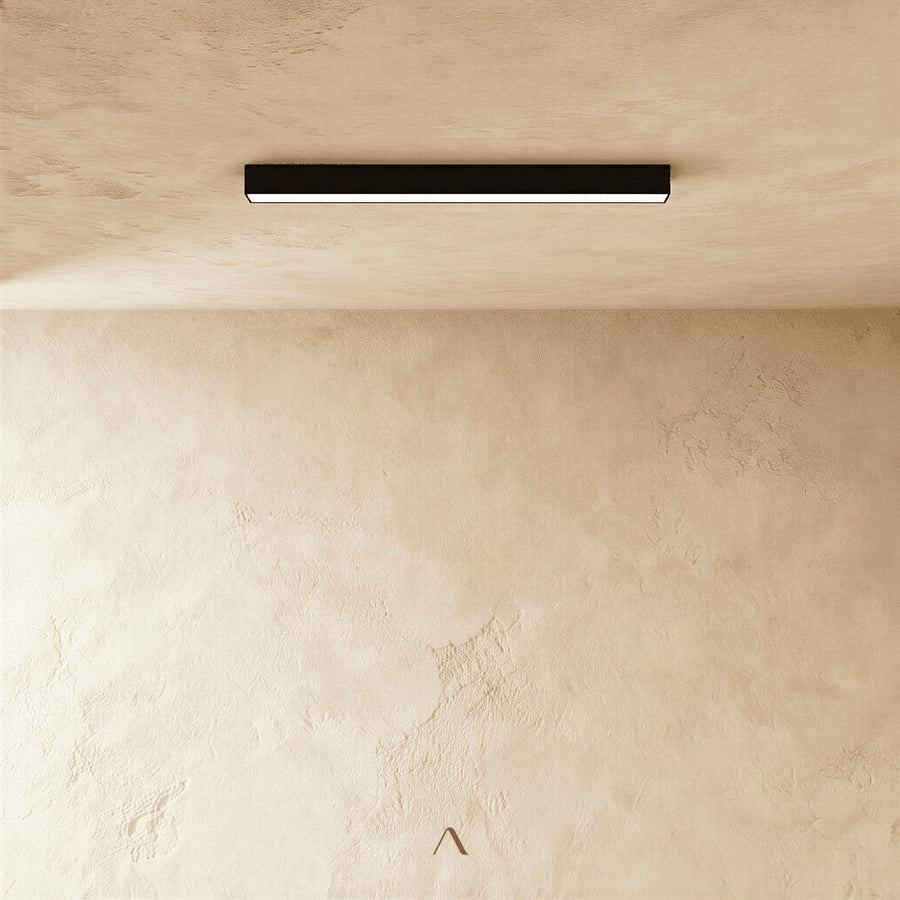

The Magma Track Light runs a thin aluminium magnetic rail flush to the ceiling, with fixtures that click on and slide anywhere along its length. Reposition a spotlight to follow the art; add a pendant where the table moves. Connectors extend the rail without breaking its line. Floodlights, spotlights, grille heads, and pendants all speak the same rail language — mix them, move them, swap them as the room changes.

Specifications · Shared

Track rail lengths

19.7" (50 cm) / 39.4" (100 cm)

Floodlight A

10W/1,100 lm; 24.2" (61.5 cm) — 20W/2,200 lm

Floodlight B

5W/550 lm; 9.1" (23 cm) — 10W/1,100 lm

Grille Light A

6W/660 lm; 9.1" (23 cm) — 12W/1,320 lm

Grille Light B

6W/660 lm; 9.1" (23 cm) — 12W/1,320 lm

Spotlight

9W/990 lm; 2.2" x 5.4" (5.5 x 13.8 cm) — 18W/1,980 lm

Three-Spotlight

4.8" (12.2 cm)

Pendant A

1.2" x 11.8" (3 x 30 cm)

Pendant B

3.9" x 3.9" (10 x 10 cm)

Power supply

8.3" x 1" x 0.9"

Material

Aluminium

Finish

Black / White

Light source

Integrated LED, 50,000 hrs

Voltage

90–260V

Installation

Ceiling-mounted, hardwired

Body Color

BlackWhite

Power

Zigbee Tuya APP

Configurations · 22 sizes

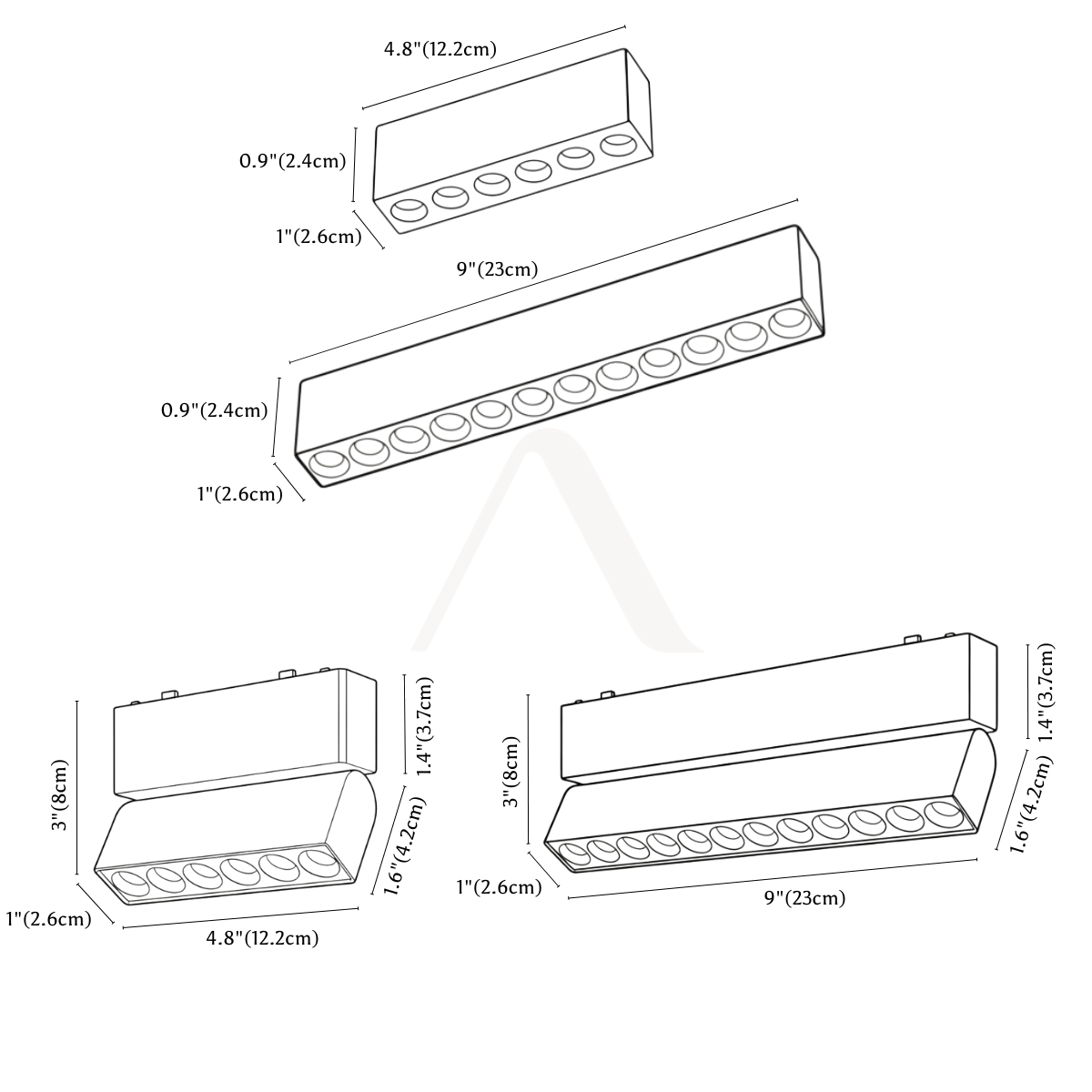

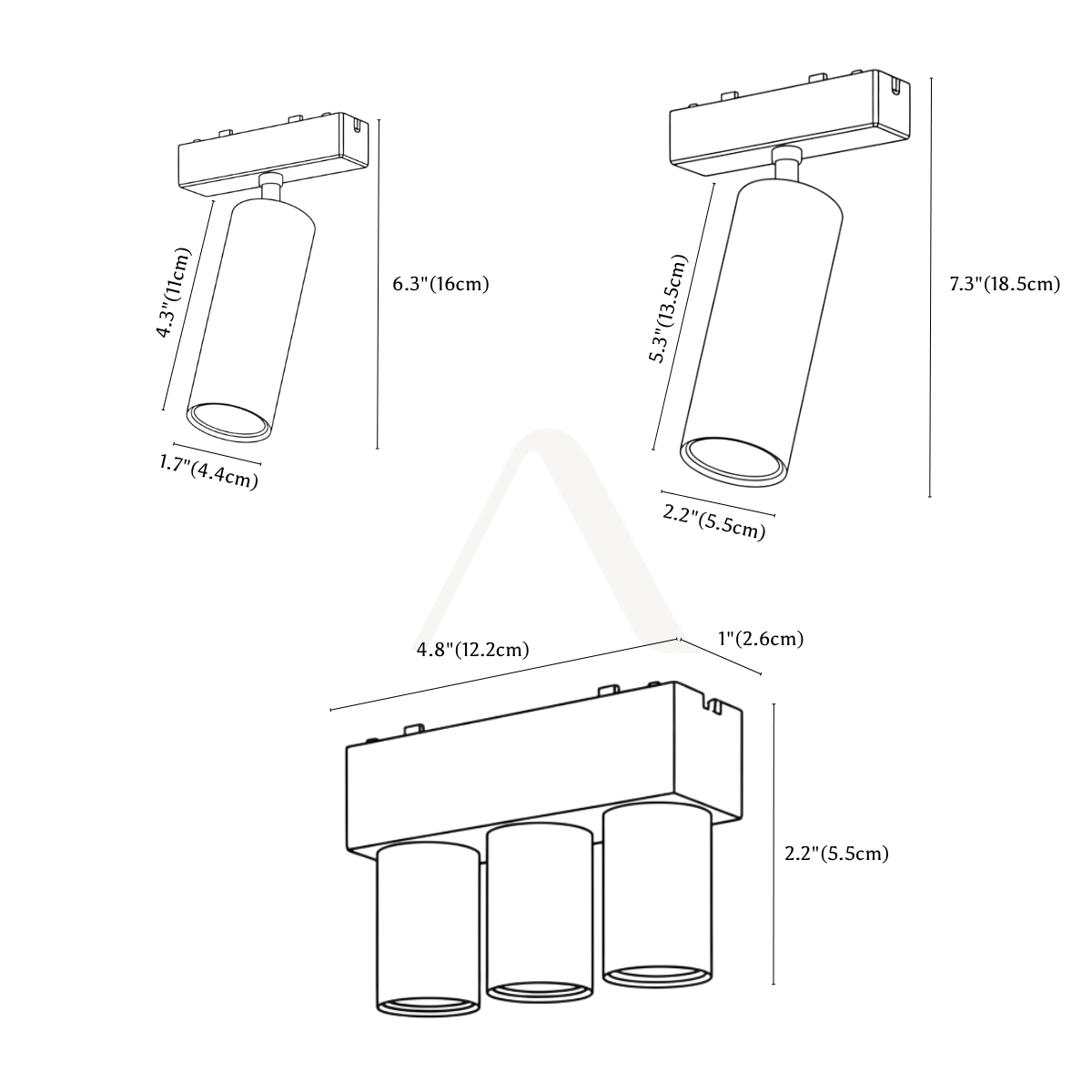

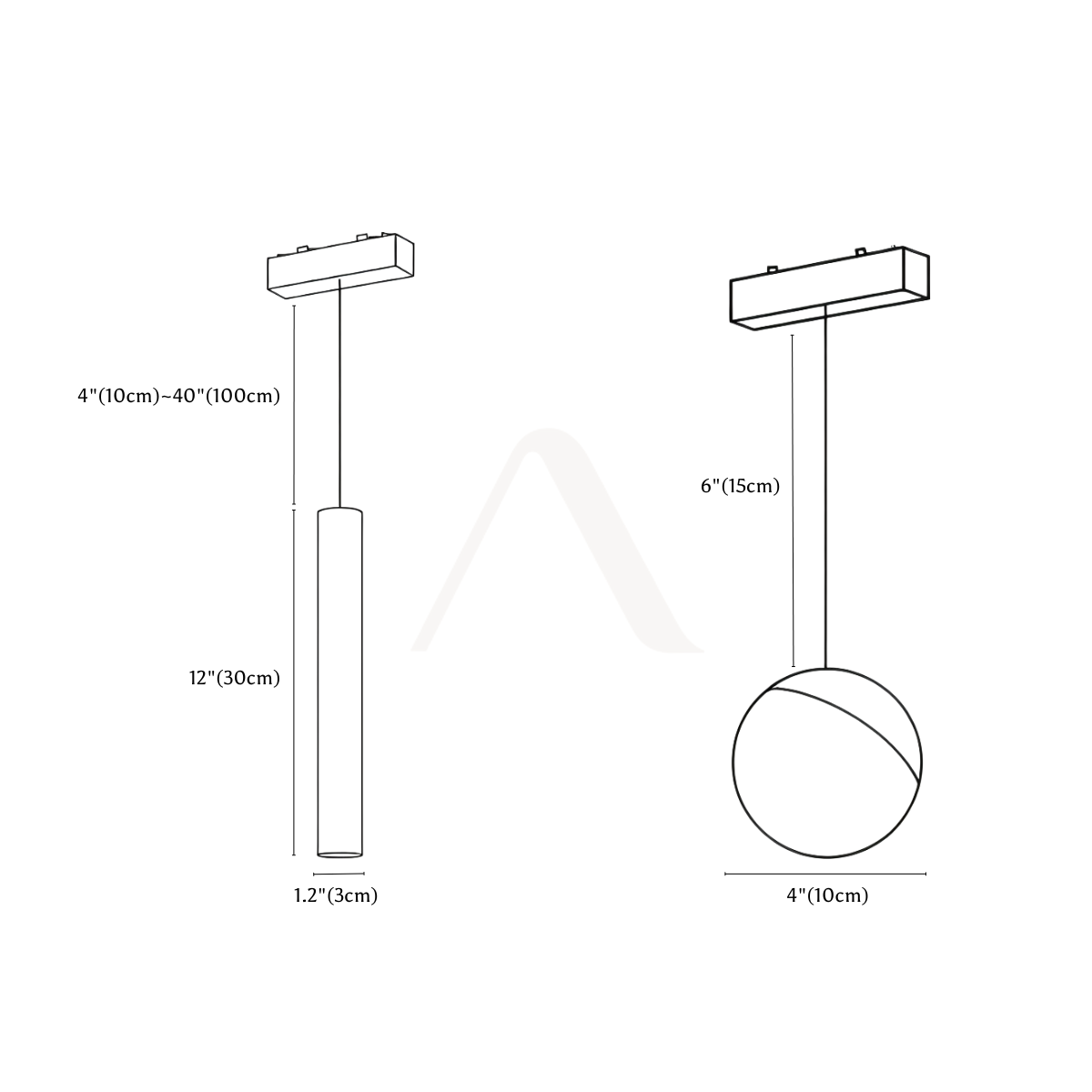

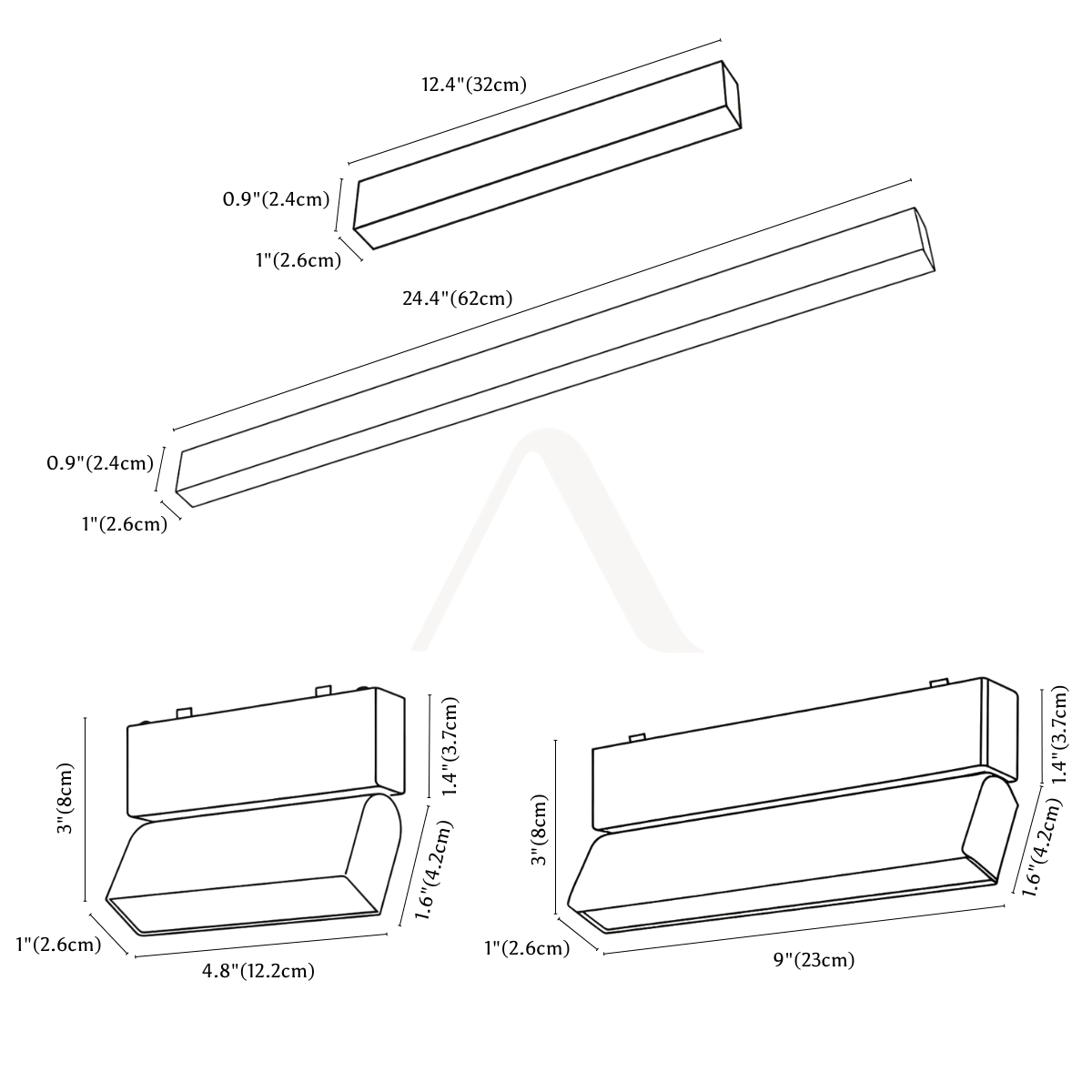

4 drawings supplied — refer to the dimensions in the specifications

Key features

• Magnetic rail — fixtures slide and reposition without tools
• Ultra-thin aluminium track in black or white, two lengths
• Six fixture types: floodlights, spotlights, grille heads, pendants
• Connectors extend the rail seamlessly in any direction
• 50,000-hour LED life · 90–260V · flush ceiling mount
