Product Sheet · Cabinet Pull
Cogollos Cabinet Pull
A slim brass bar, mounted clean
·
Cogollos Cabinet Pull
Cabinet Pull · 6 sizes
ND-COGO-1 — ND-COGO-6
The Cogollos runs a slim brass bar through two sculpted end mounts, the kind of detail that turns a simple pull into an architectural line. A soft brushed finish sits over solid brass, warm rather than shiny, with subtle stepping where the bar meets its mounts. Six lengths cover everything from a narrow drawer to a full cabinet front.
Specifications · Shared

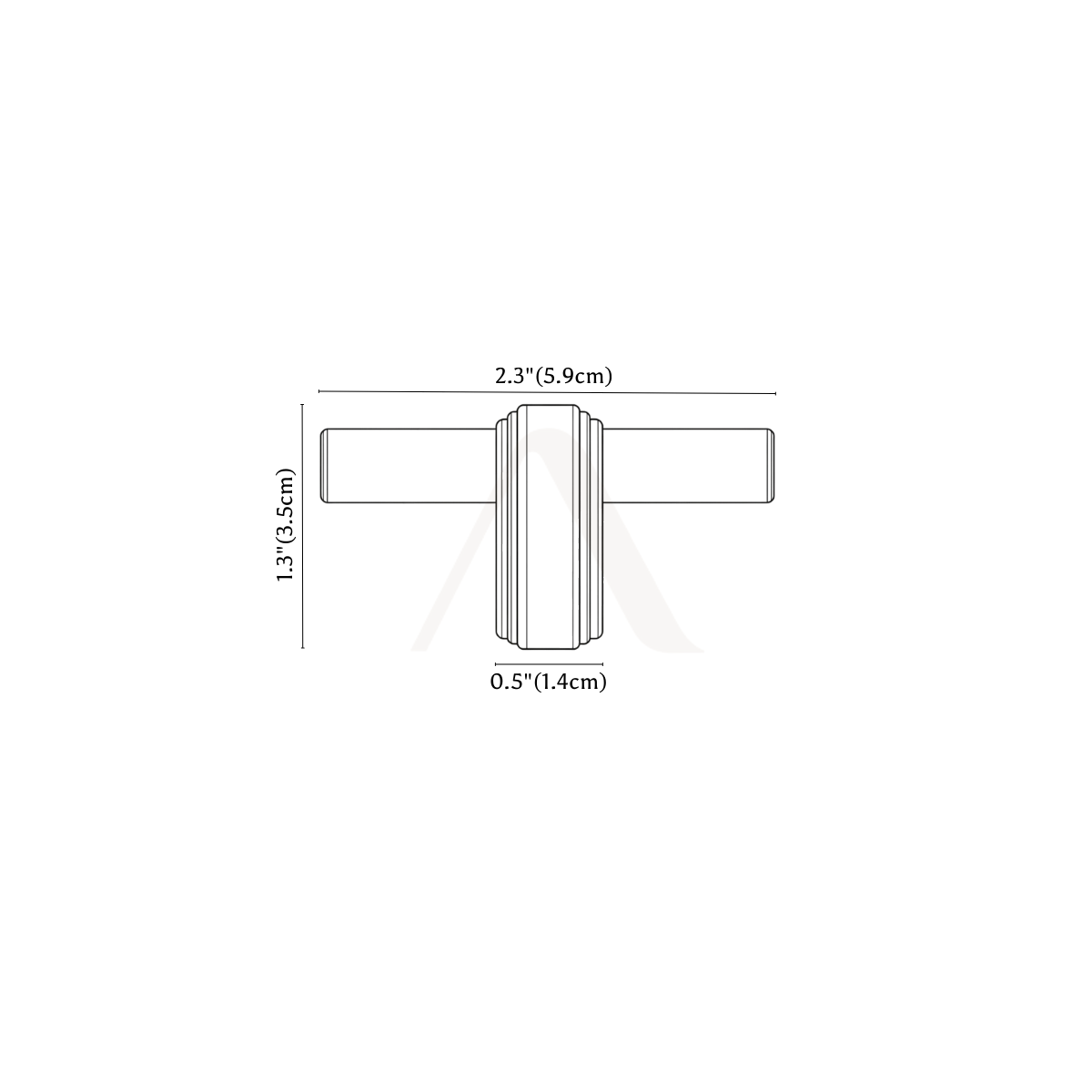

T knob
D2.3" x H1.3" (5.9 x 3.5cm)
Pull bar
L5.9" x H1.3" (15 x 3.5cm)
Pull bar
L9.6" x H1.3" (18.2 x 3.5cm)
Pull bar
L8.4" x H1.3" (21.5 x 3.5cm)
Pull bar
L10.9" x H1.3" (27.7 x 3.5cm)
Pull bar
L14.7" x H1.3" (37.5 x 3.5cm)
Hole spacing
L3.8" / L5" / L6.3" / L8.8" / L12.6"
Weight
85g to 339g depending on length
Application
Cupboard, cabinets, drawer, wardrobe
Configurations · 6 sizes

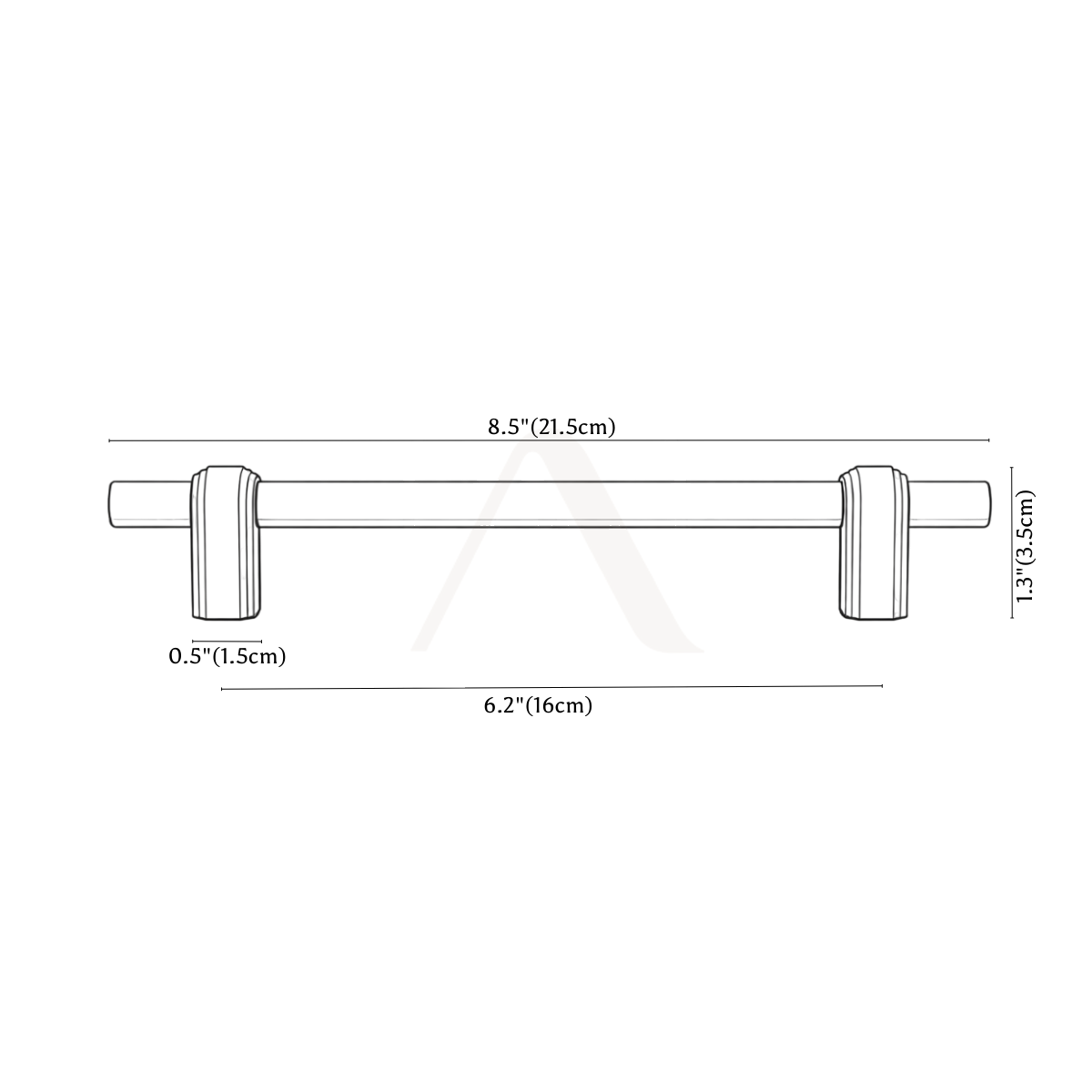

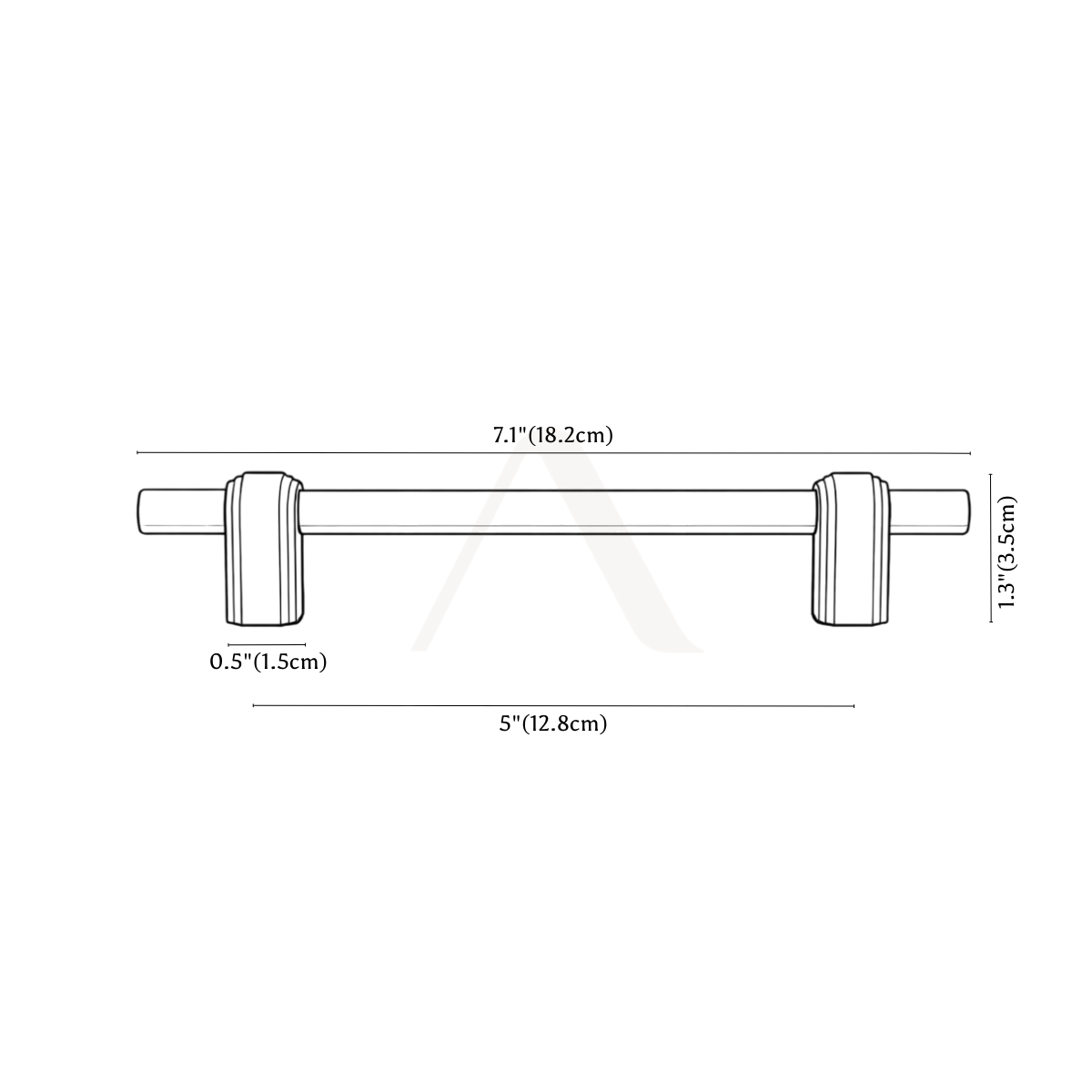

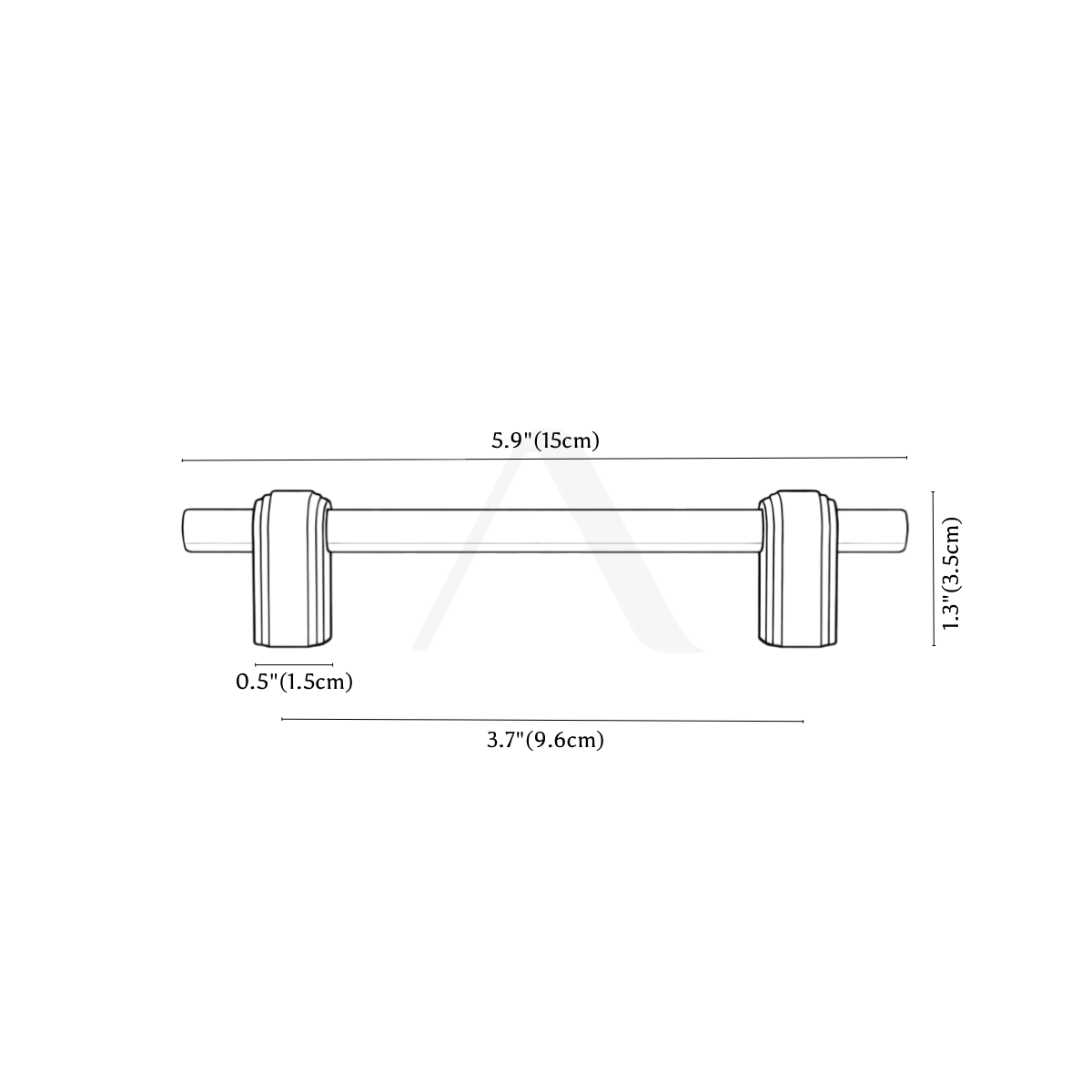

4 drawings supplied — refer to the dimensions in the specifications
Key features
- Solid brass construction with a warm brushed finish
- Clean cylindrical bar through sculpted end mounts
- Smooth, balanced grip in the hand
- Works as both a cabinet pull and cabinet knob
- Six lengths, from narrow drawers to wide cabinet fronts
