Nava Decor
Product Sheet · Cabinet Pull
Castro Cabinet Pull

Castro Cabinet Pull

A circle, holding a straight line
navadecor.co Revised 08 · 2026
Nava Decor · Castro Cabinet Pull
Cabinet Pull · 2 sizes
ND-CAST2-1 — ND-CAST2-3

Castro sets a solid circle at the center of a linear bar, so the straight lines soften into a rounded focal point right where the hand meets it. Zinc alloy gives the piece real weight, refined to a smooth, substantial surface. Alone or paired across a run of doors, the geometry stays quiet and considered.

Specifications · Shared
Pull bar
L 7.4" (18.9 cm) x H 0.9" (2.4 cm)
Pull bar
L 12.5" (32 cm) x H 0.9" (2.4 cm)
Hole spacing
3.8" / 10"
Material
Zinc alloy
Finish
Gold / Chrome
Weight
90g / 170g
Grip
Smooth
Application
Cabinets, wardrobe
Color
GoldChrome
Configurations · 2 sizes

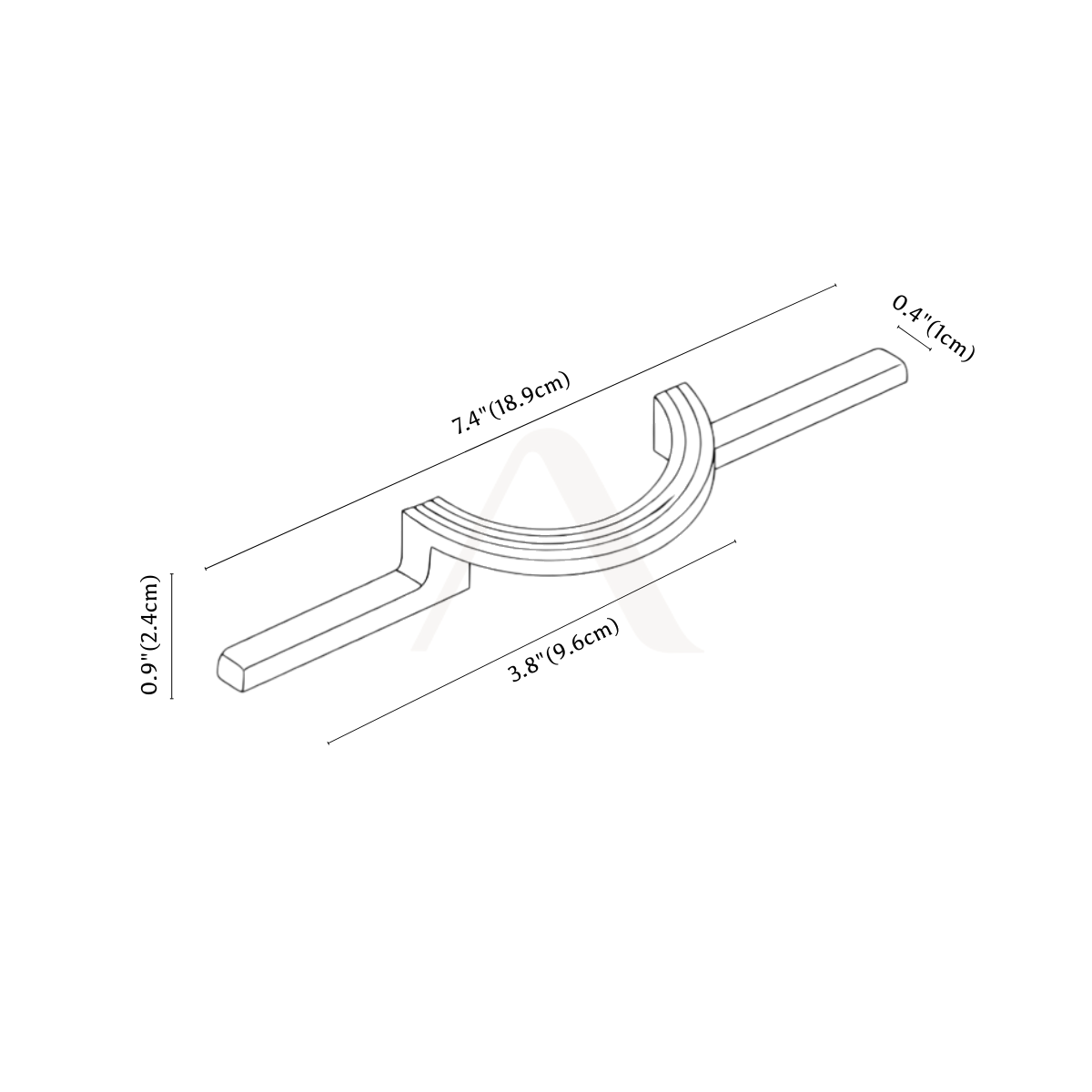

Dimension drawing 1
Hole To Hole: L3.8"(9.6cm) ND-CAST2-1

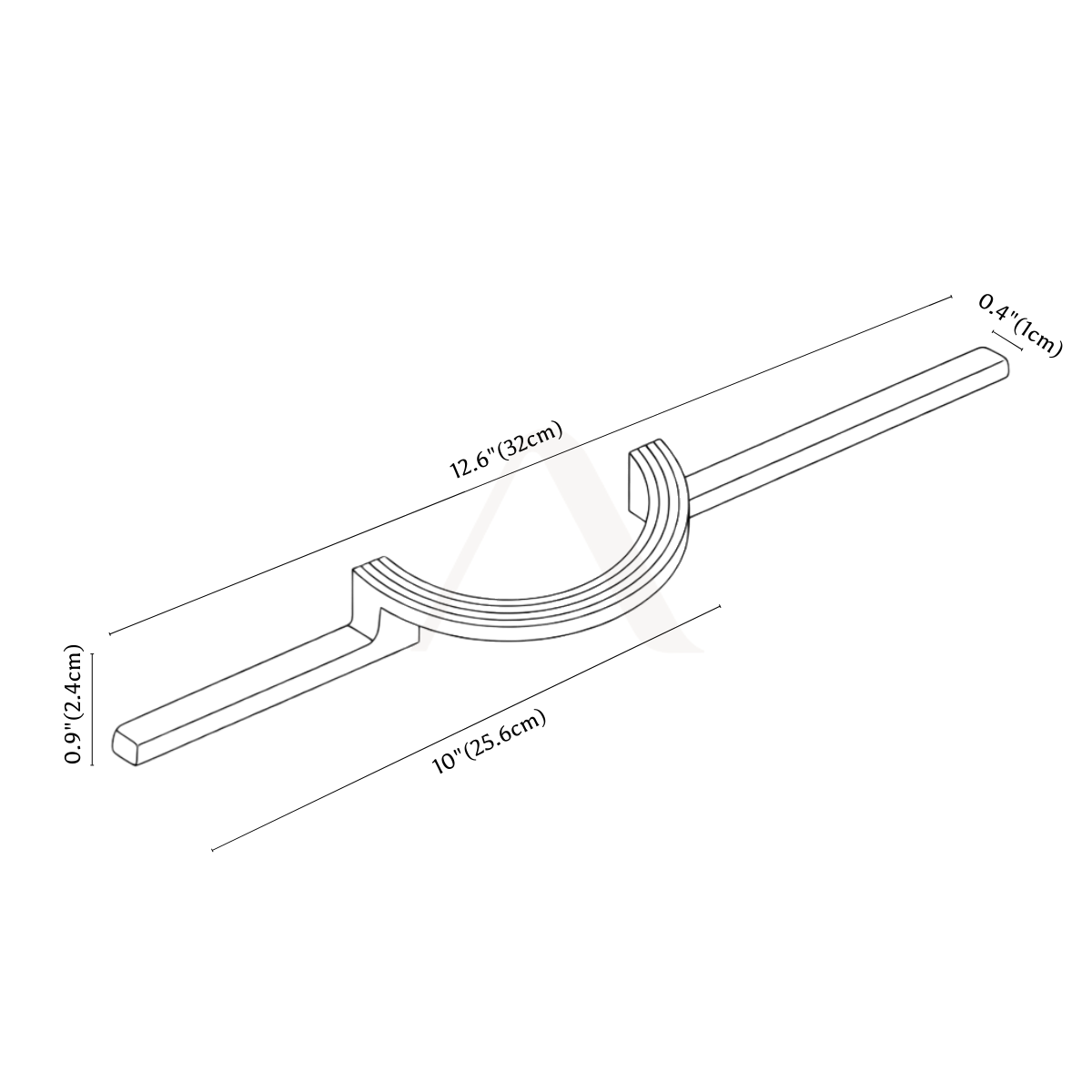

Dimension drawing 2
Hole To Hole: L10"(25.6cm) ND-CAST2-3
One drawing per size — dimension & SKU below each
Key features
  • Circular center softens the pull's linear extensions
  • Solid zinc alloy for a substantial, weighty feel
  • Comfortable, balanced grip through the open center
  • Works as a single accent or across paired doors
  • Two finishes: gold and chrome
For specifier use Submittal
Job name
Fixture type
Qty
Notes
navadecor.co · hey@navadecor.co Page 2 of 2 · Rev 08.2026 Specifications subject to change without notice
