Cambremer Downlight

· Cambremer Downlight

Downlight

ND-CAMB-DEF

The Cambremer is a modular system: one rectangular housing holds one, three, or six round reflectors in a clean line. Each reflector sits deep-set to reduce glare; the Bridgelux COB source behind it throws a precise beam — choose 15°, 24°, 38°, or 50°. Spring-clip installation, flush white finish, CRI above 90Ra. Run one for an accent, or line several across a ceiling for even area coverage.

Specifications · Shared

Material

Aluminium trim, plastic lens and reflector

Finish

White

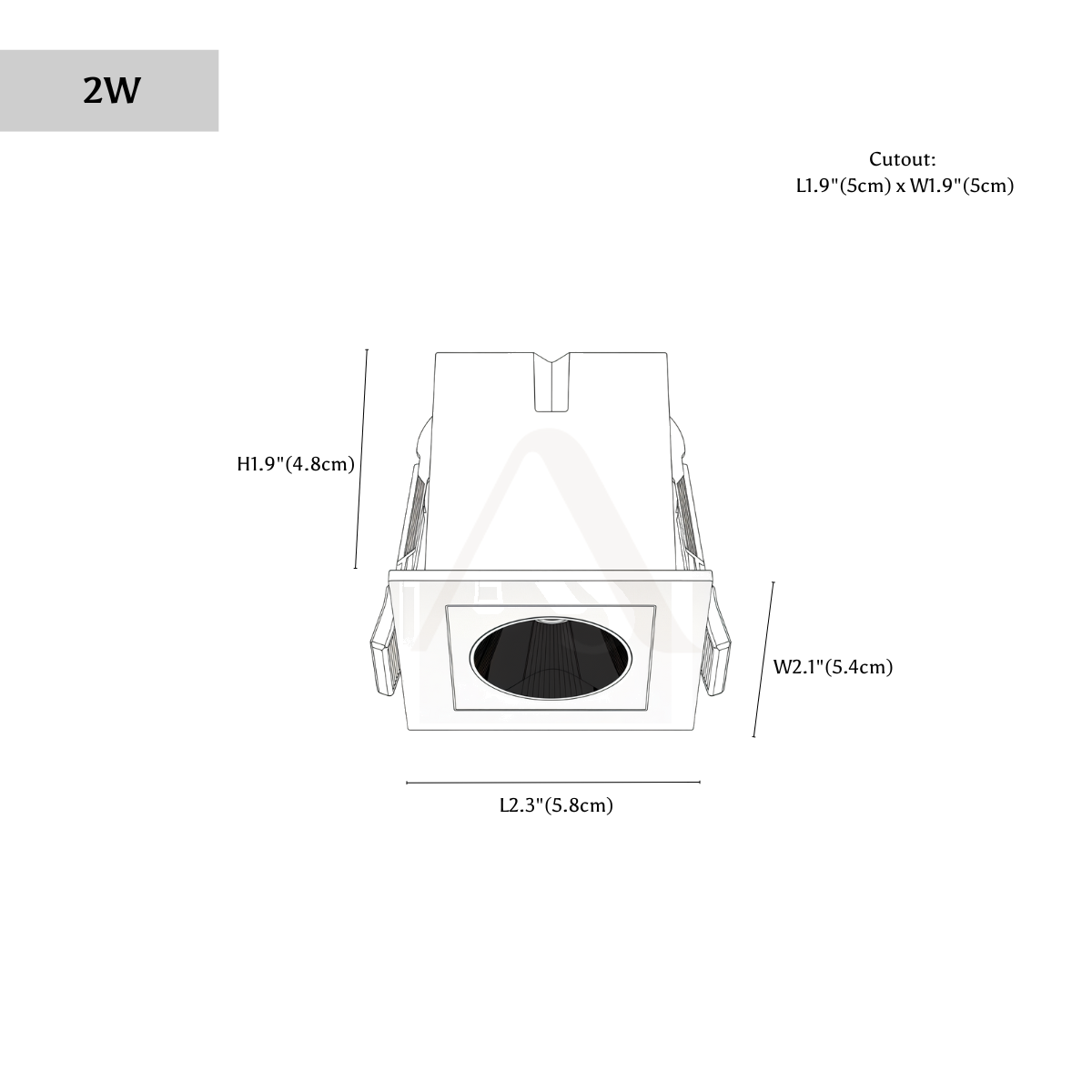

Single

L 5.8 cm x W 5.4 cm x H 4.8 cm (cutout 5 x 5 cm)

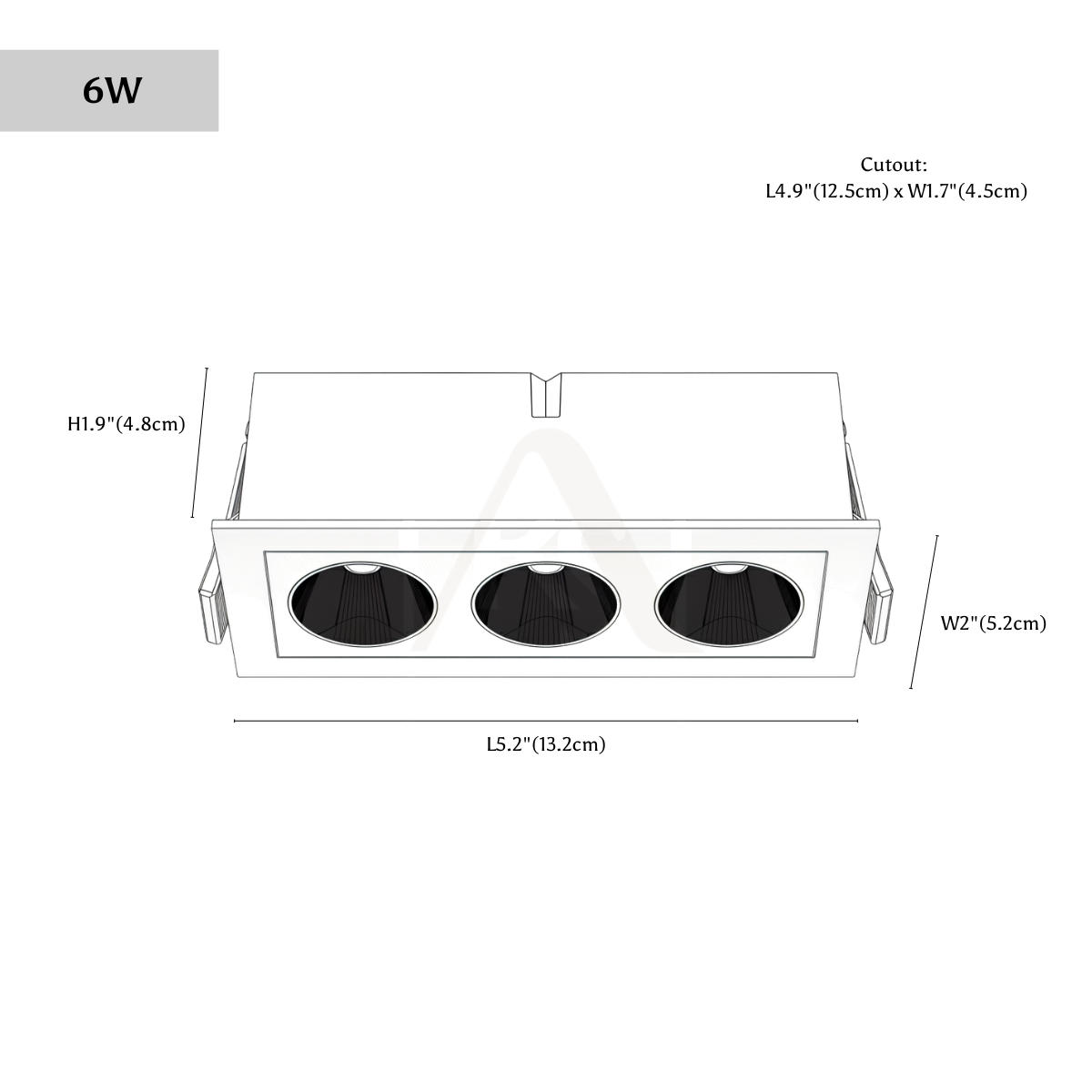

Triple

L 13.2 cm x W 5.2 cm x H 4.8 cm (cutout 12.5 x 4.5 cm)

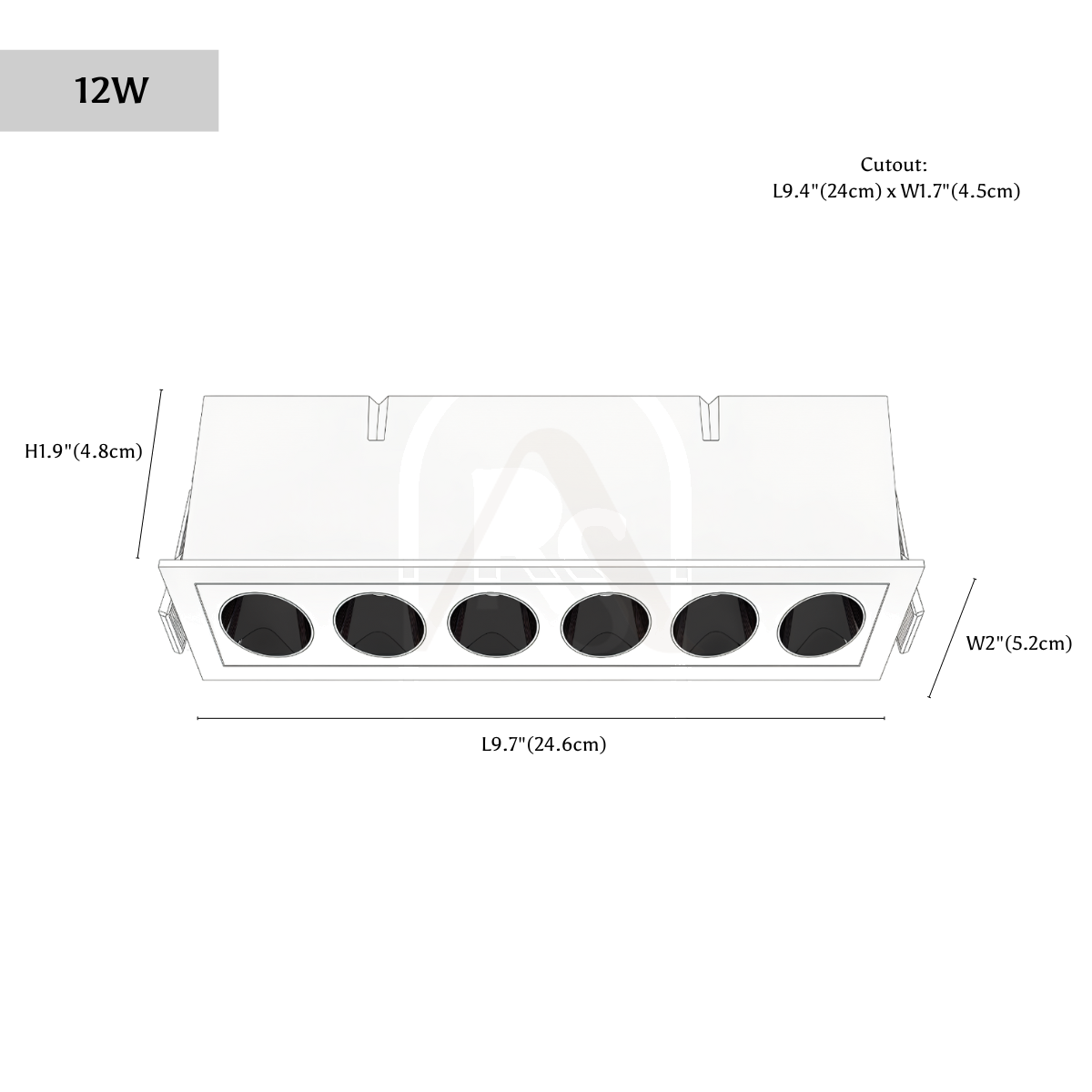

Six

L 24.6 cm x W 5.2 cm x H 4.8 cm (cutout 24 x 4.5 cm)

Wattage

2W (220 lm) / 6W (660 lm) / 12W (1320 lm)

Light source

Bridgelux COB integrated LED

Beam angles

15° / 24° / 38° / 50°

CRI

>90Ra

Dimmable

On request

Voltage

AC 120–277V

IP rating

IP20

Lifespan

50,000 hrs

Warranty

3 years

Certifications

UL, CE, CCC, FCC, ROHS, SAA, VDE and others

Title

Default Title

Configurations

3 drawings supplied — refer to the dimensions in the specifications

Key features

• Single, triple, or six-light module — one system, three configurations
• Deep-set round reflectors keep glare low
• Four beam angles — 15°, 24°, 38°, 50°
• 50,000-hour Bridgelux COB LED, CRI >90
• Spring-clip flush installation, IP20 rated
