Cahagnolles Downlight

· Cahagnolles Downlight

Downlight

The Cahagnolles disappears into the plaster: no visible trim ring, just a deep-set black reflector flush with the ceiling. The Bridgelux COB source sits recessed behind it, so glare is minimal and the beam stays focused. Choose from four angles — 15°, 24°, 36°, or 55° — and four wattages to match what the room needs. CRI above 90Ra, 50,000-hour rated LED.

Specifications · Shared

Material

Aluminium trim, plastic reflector

Finish

White / Black

Sizes & cutouts

D 6.3 cm (cutout 5.5 cm) / D 7.3 cm (cutout 6.5 cm) / D 7.3 cm deep (cutout 6.5 cm) / D 8.3 cm (cutout 7.5 cm)

Wattage

8W (880 lm) / 14W (1540 lm) / 18W (1980 lm) / 24W (2640 lm)

Light source

Bridgelux COB integrated LED

Beam angles

15° / 24° / 36° / 55°

CRI

>90Ra

Dimmable

Optional

Voltage

AC 120–277V

IP rating

IP20

Lifespan

50,000 hrs

Warranty

3 years

Certifications

UL, CE, CCC, FCC, ROHS, SAA, VDE and others

Title

Default Title

Configurations

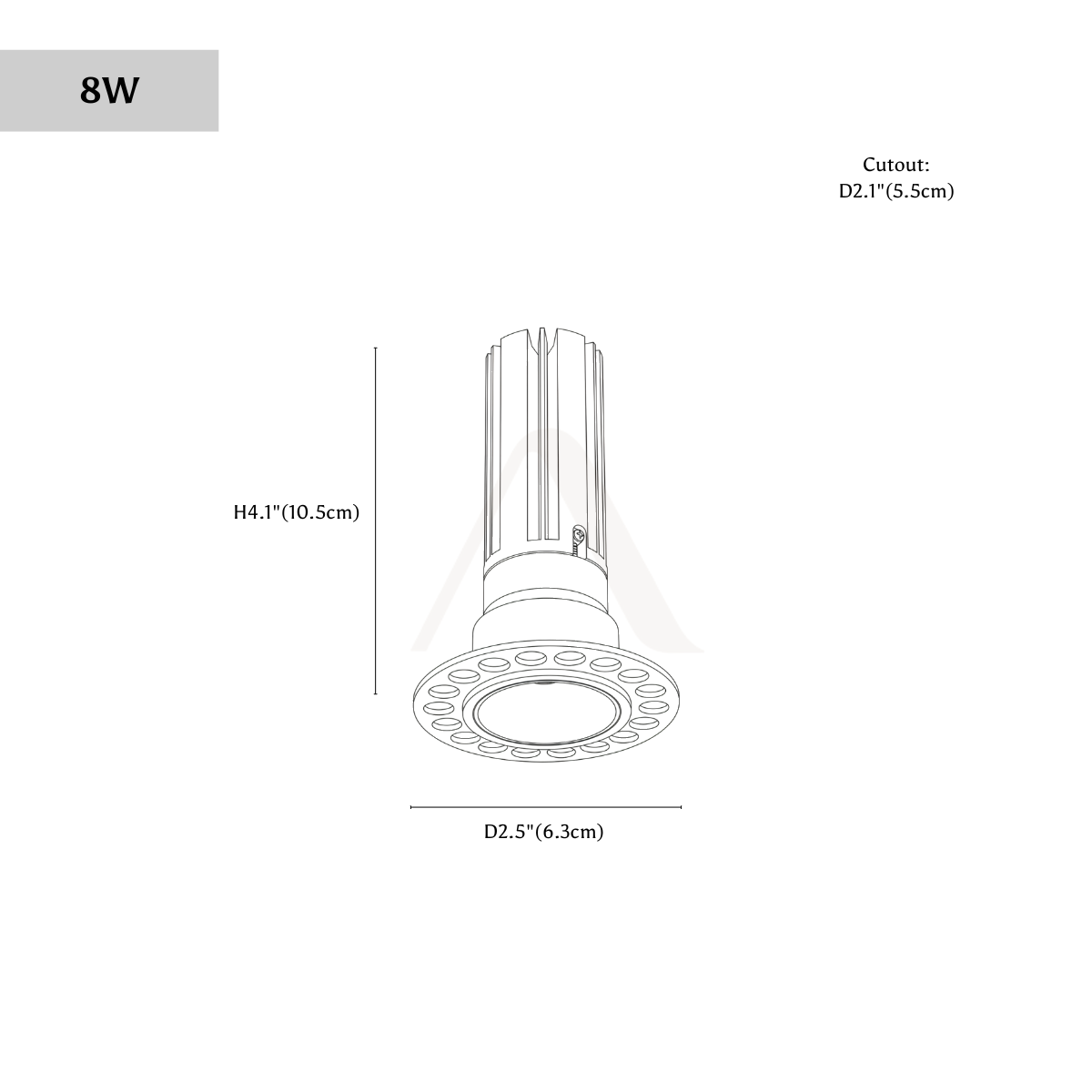

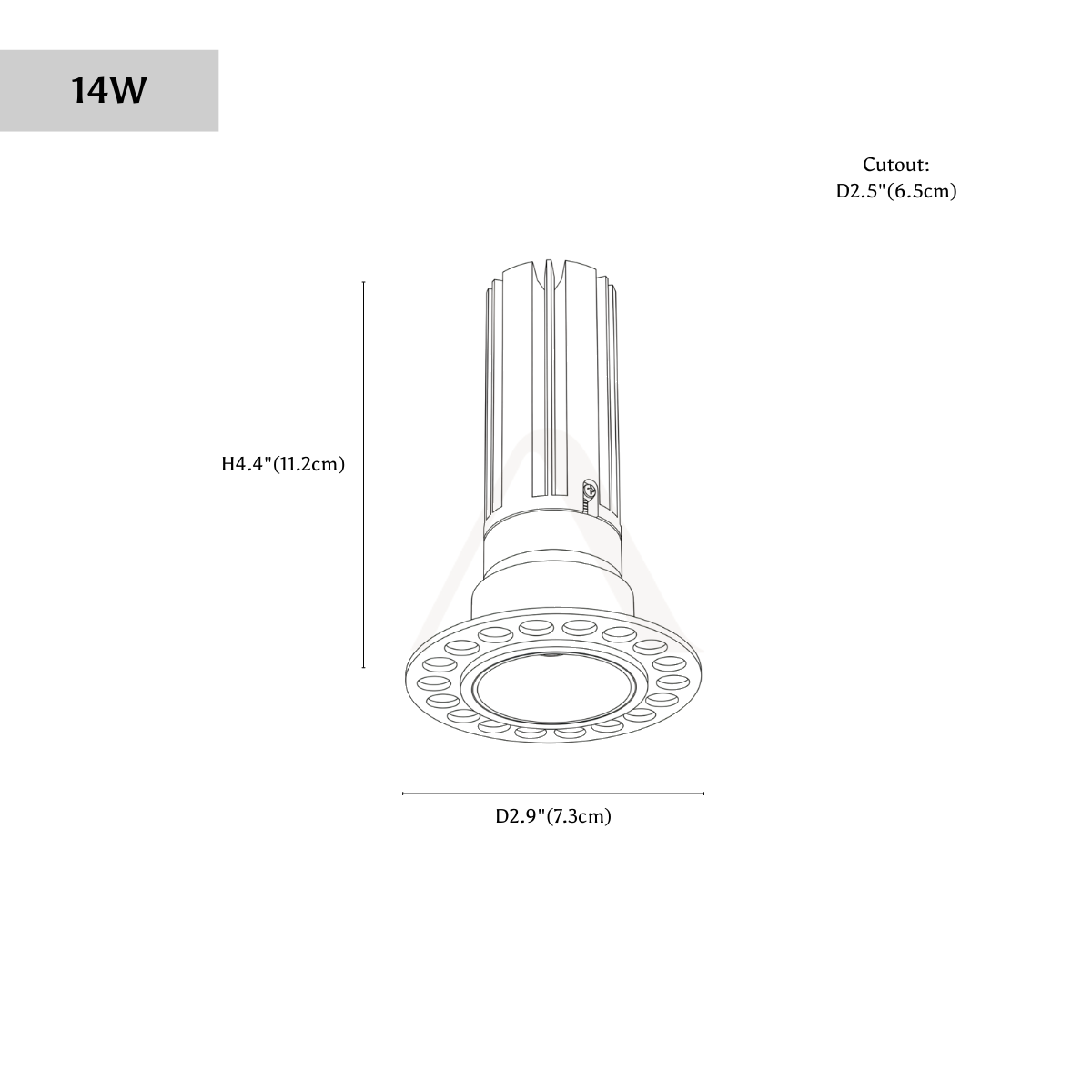

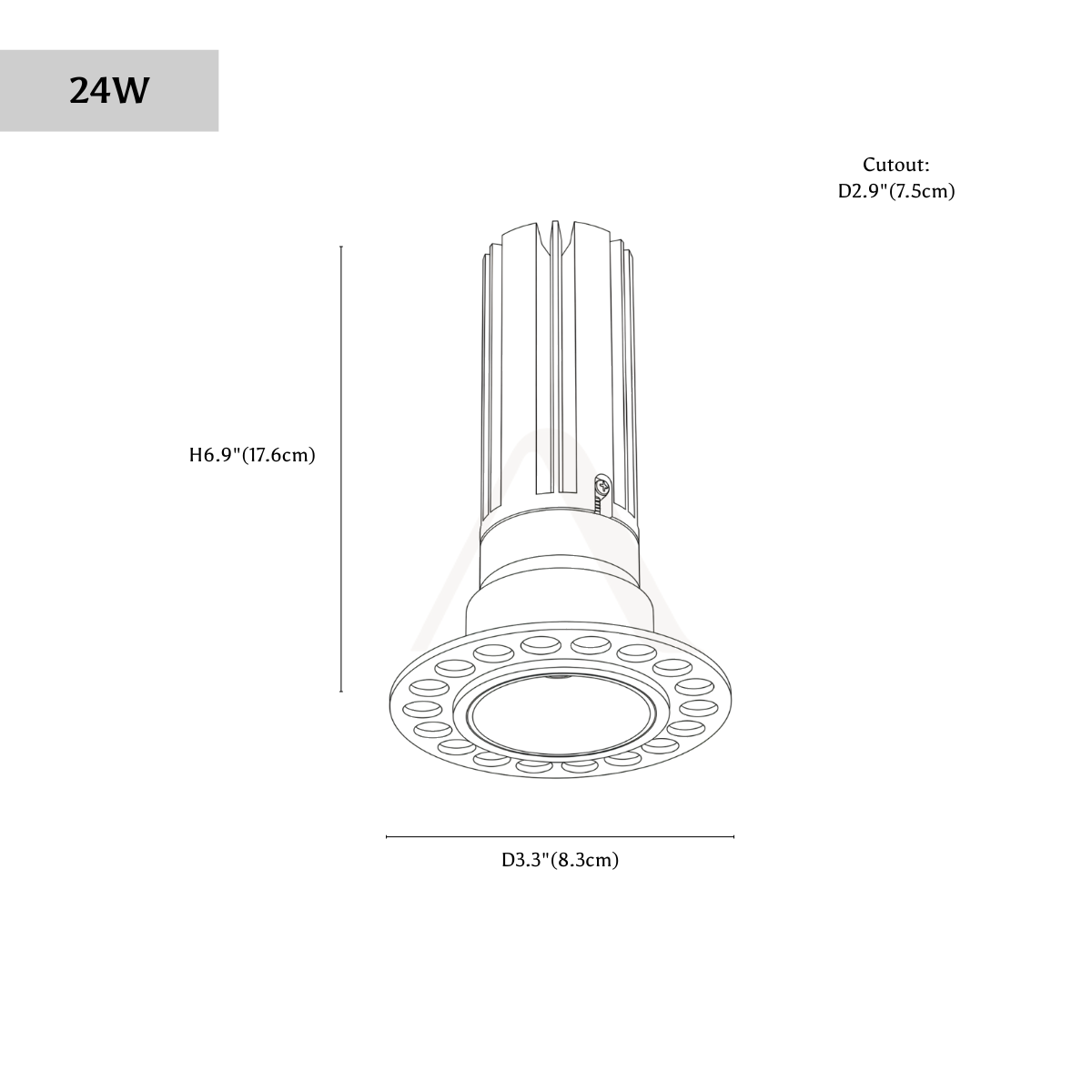

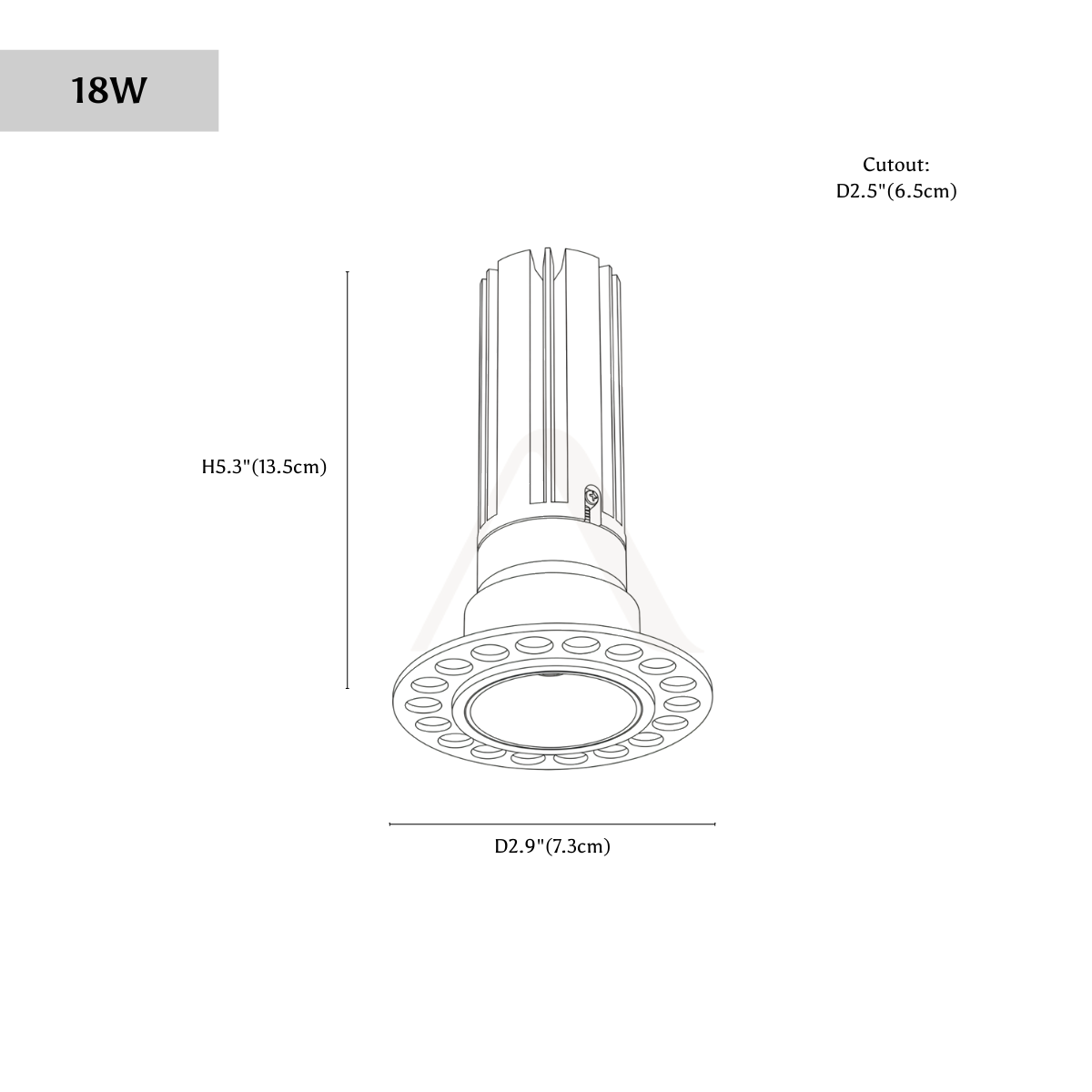

4 drawings supplied — refer to the dimensions in the specifications

Key features

• Trimless — only the black reflector shows at the ceiling
• Deep-set design keeps glare low and beam focused
• Four beam angles — 15°, 24°, 36°, 55°
• Four wattages — 8W, 14W, 18W, 24W
• 50,000-hour Bridgelux COB LED, CRI >90
