Cahagnes Downlight

· Cahagnes Downlight

Downlight

The Cahagnes Downlight sits flush in the ceiling as a clean square trim — white or black, depending on what the room wants. The Bridgelux COB inside delivers a high CRI (>90Ra), so colours read accurately beneath it. The deep-set reflector keeps the source hidden and glare low; choose 15°, 24°, 36°, or 55° to go from a tight accent to a broad ambient wash. IP65-sealed against dust and water for bathrooms, kitchens, and outdoor soffits.

Specifications · Shared

Material

Aluminium trim, plastic reflector

Finish

White, black

Light source

Bridgelux COB, integrated (50,000 hrs)

Wattage

12 / 18 / 30 / 40W

Output

1,320 / 1,980 / 3,300 / 4,400 lm

CRI

>90Ra

Beam angle

15° / 24° / 36° / 55°

Dimmable

On request

Voltage

AC 120–277V

Power factor

>0.9

IP rating

IP65

Dimensions

8.5x8.5x6 cm / 10.5x10.5x7 cm / 12.9x12.9x8 cm / 14.8x14.8x9 cm

Cutout

7.5x7.5 / 9.5x9.5 / 11.5x11.5 / 13.5x13.5 cm

Weight

0.27 / 0.32 / 0.45 / 0.59 kg

Installation

Recessed, spring-clip mount

Warranty

3 years

Title

Default Title

Configurations

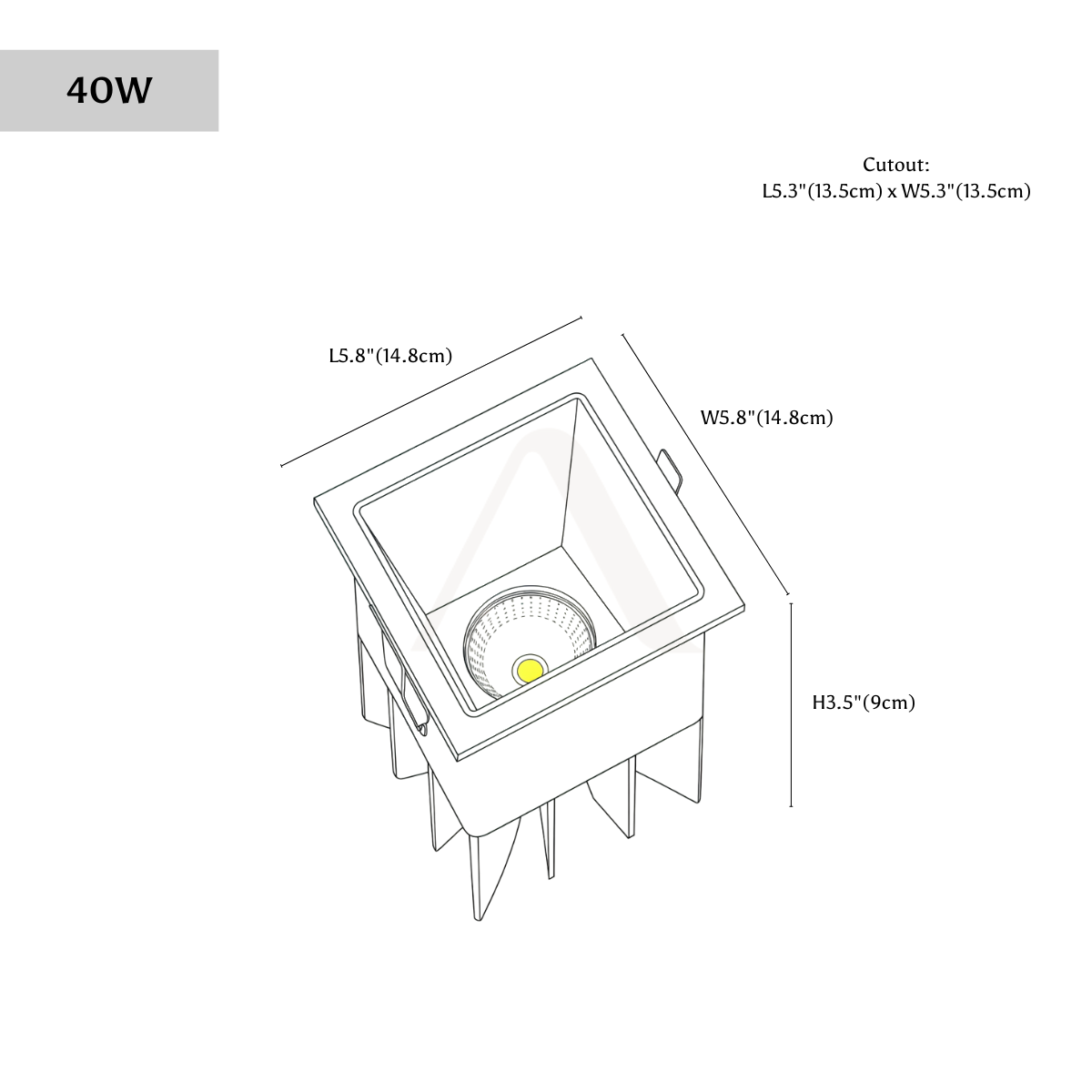

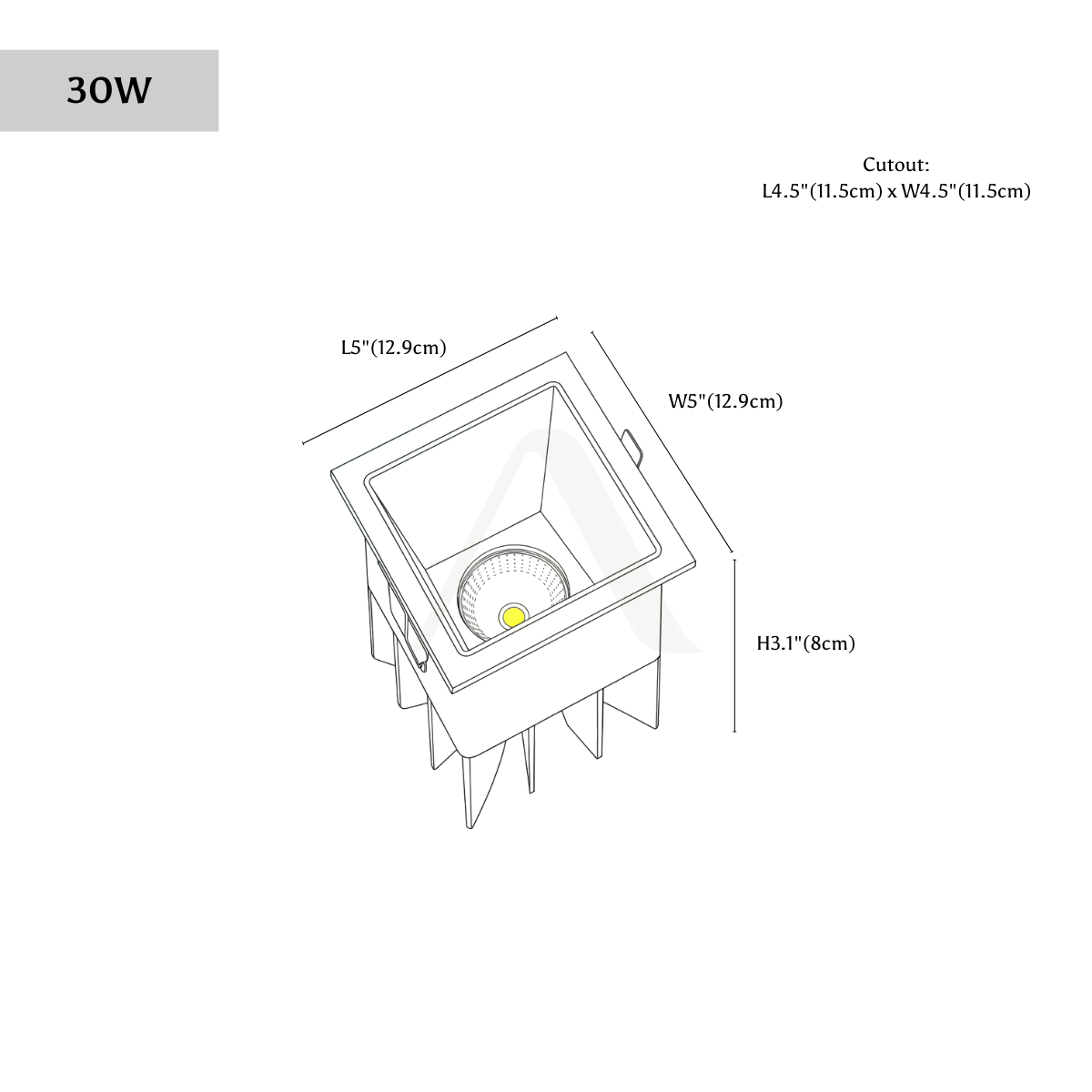

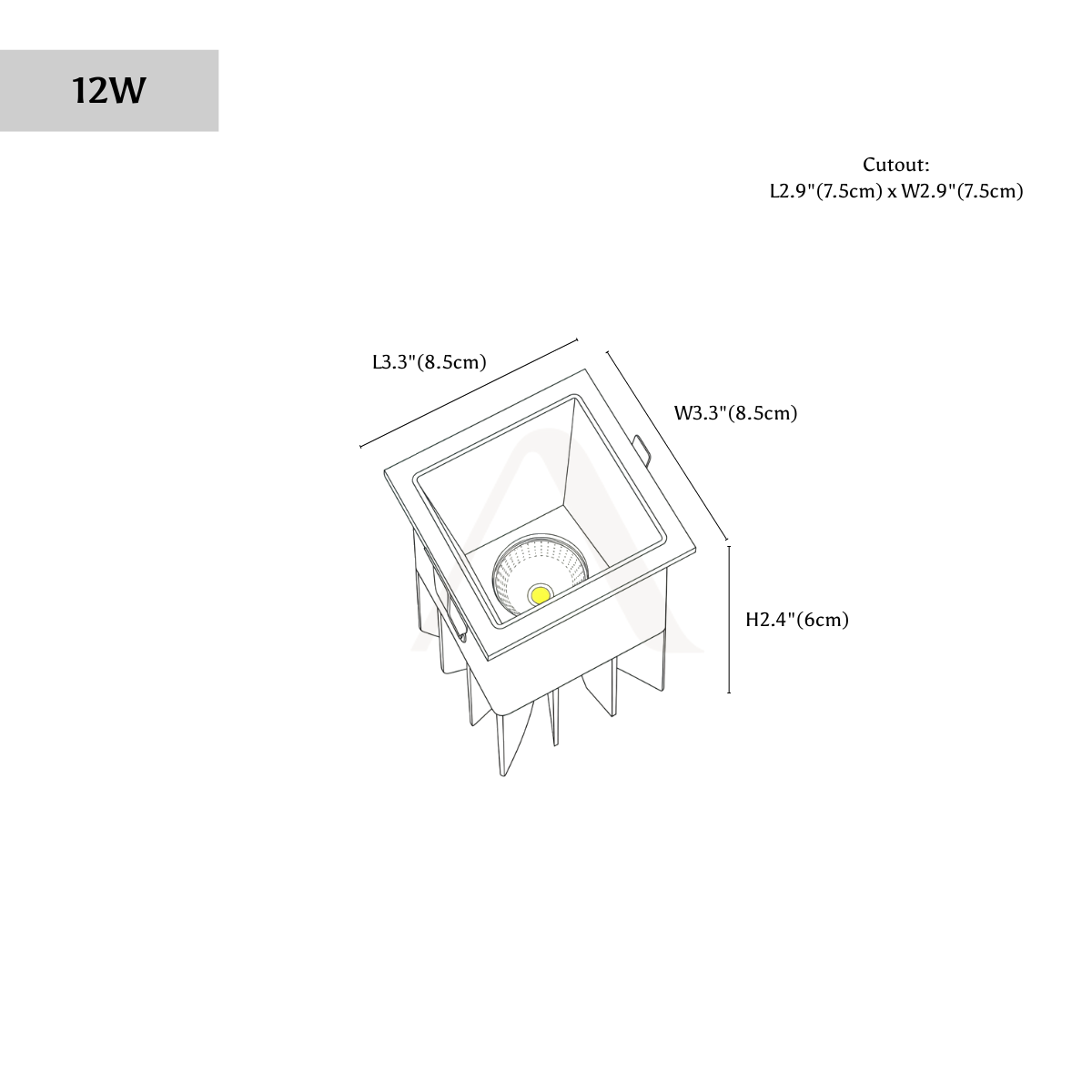

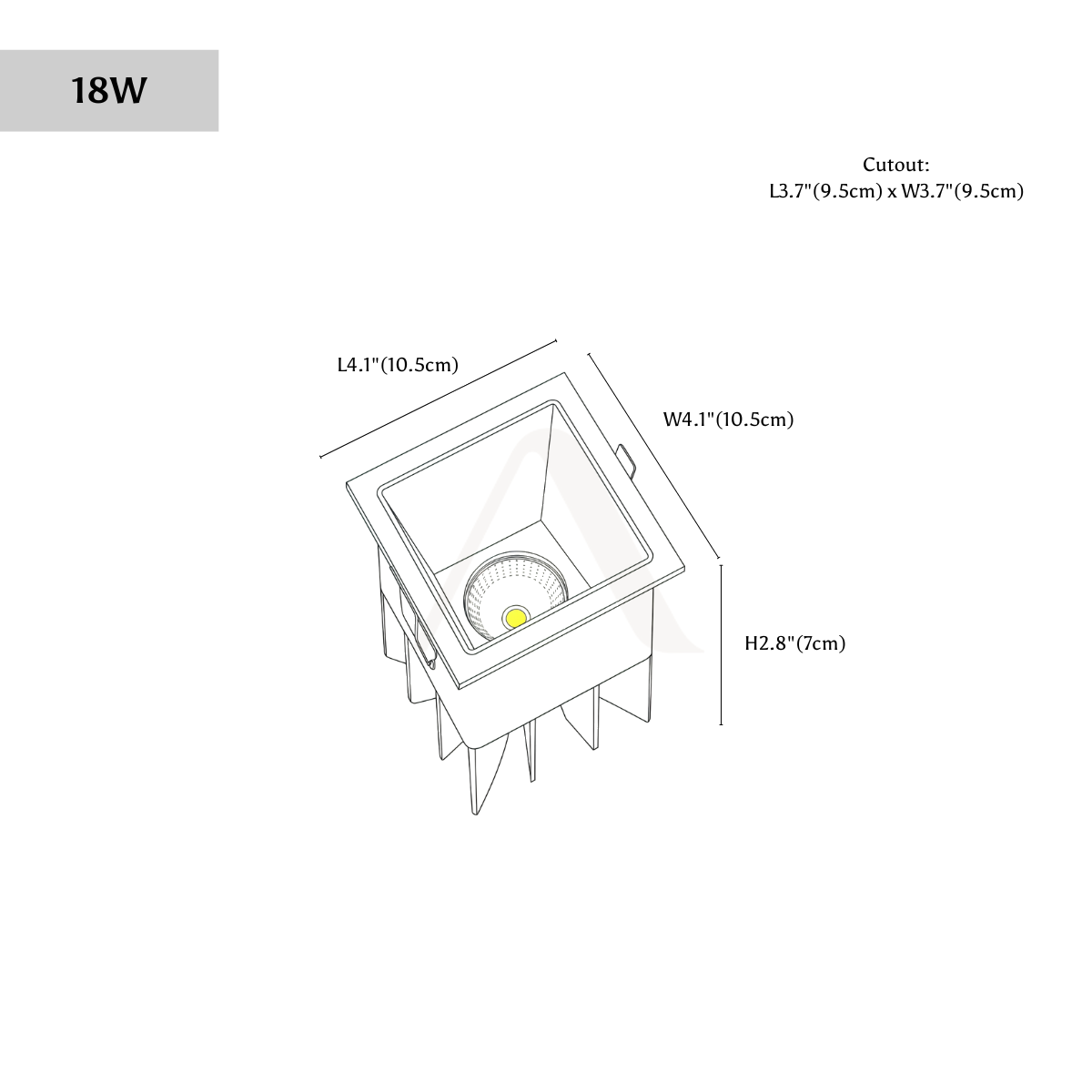

4 drawings supplied — refer to the dimensions in the specifications

Key features

• Square recessed form — clean, architectural, flush to ceiling
• IP65-rated — bathrooms, kitchens, outdoor soffits
• Four beam angles — 15° accent to 55° ambient
• CRI >90Ra — colours read true beneath it
• 50,000-hour Bridgelux COB — dimmable, nothing to replace
