Nava Decor
Product Sheet · Cabinet Pull
Cabrilla Cabinet Pull

Cabrilla Cabinet Pull

A tapered line, off-centre
navadecor.co Revised 08 · 2026
Nava Decor · Cabrilla Cabinet Pull
Cabinet Pull · 2 sizes
ND-CABR-1 — ND-CABR-2

The Cabrilla tapers unevenly along its length, so the bar reads as slightly off-centre rather than a straight, symmetrical line. That subtle asymmetry is the whole idea — a small sense of movement on an otherwise flat drawer front. Solid brass carries the shape cleanly and warms with handling, at home against both light and dark cabinetry.

Specifications · Shared
Dimensions
L10.7cm x H2.9cm / L14cm x H2.9cm
Hole spacing
9.6cm / 12.8cm
Material
Brass
Finish
Vintage Brass
Weight
62g, 78g
Grip style
Smooth
Application
Cupboard, Cabinets, Drawer, Wardrobe
Configurations · 2 sizes

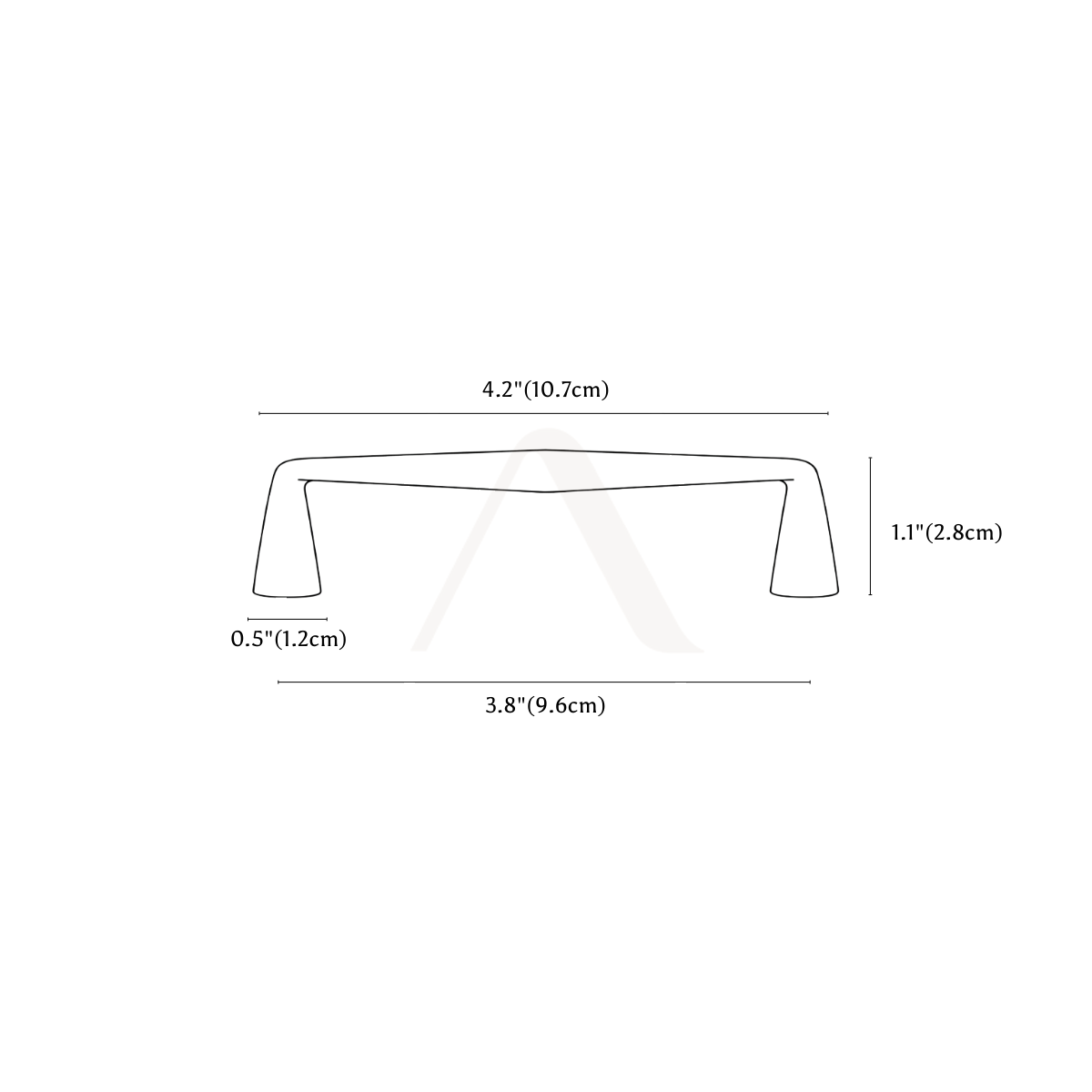

Dimension drawing 1
Hole to Hole: L3.8"(9.6cm) ND-CABR-1

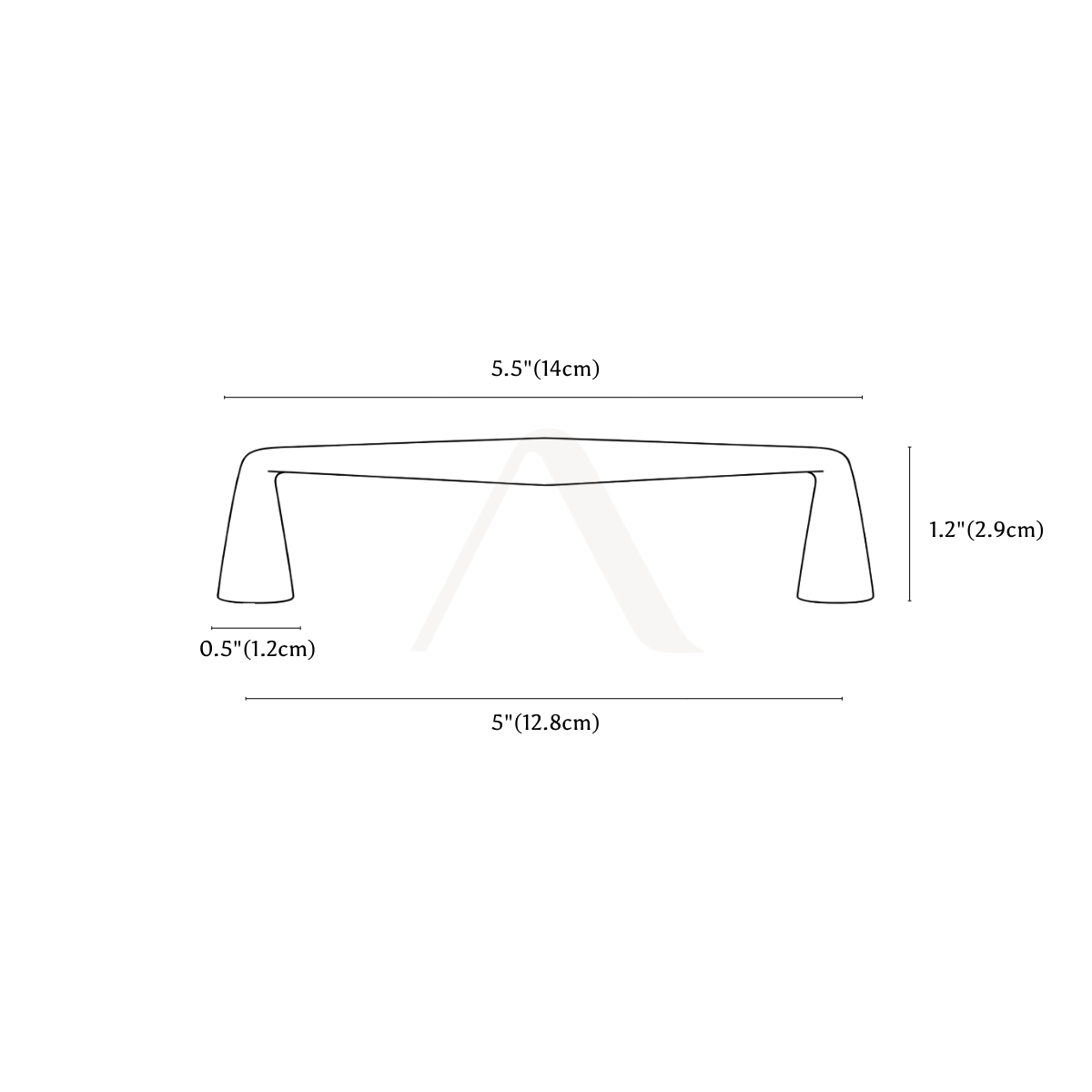

Dimension drawing 2
Hole to Hole: L5"(12.8cm) ND-CABR-2
One drawing per size — dimension & SKU below each
Key features
  • Gently tapered, asymmetric silhouette
  • Solid brass — lasting durability, natural finish
  • Smooth, balanced grip in the hand
  • Two lengths for different drawer widths
  • Suits kitchens, wardrobes, and bathroom vanities
For specifier use Submittal
Job name
Fixture type
Qty
Notes
navadecor.co · hey@navadecor.co Page 2 of 2 · Rev 08.2026 Specifications subject to change without notice
