Nava Decor
Product Sheet · Ceiling Light

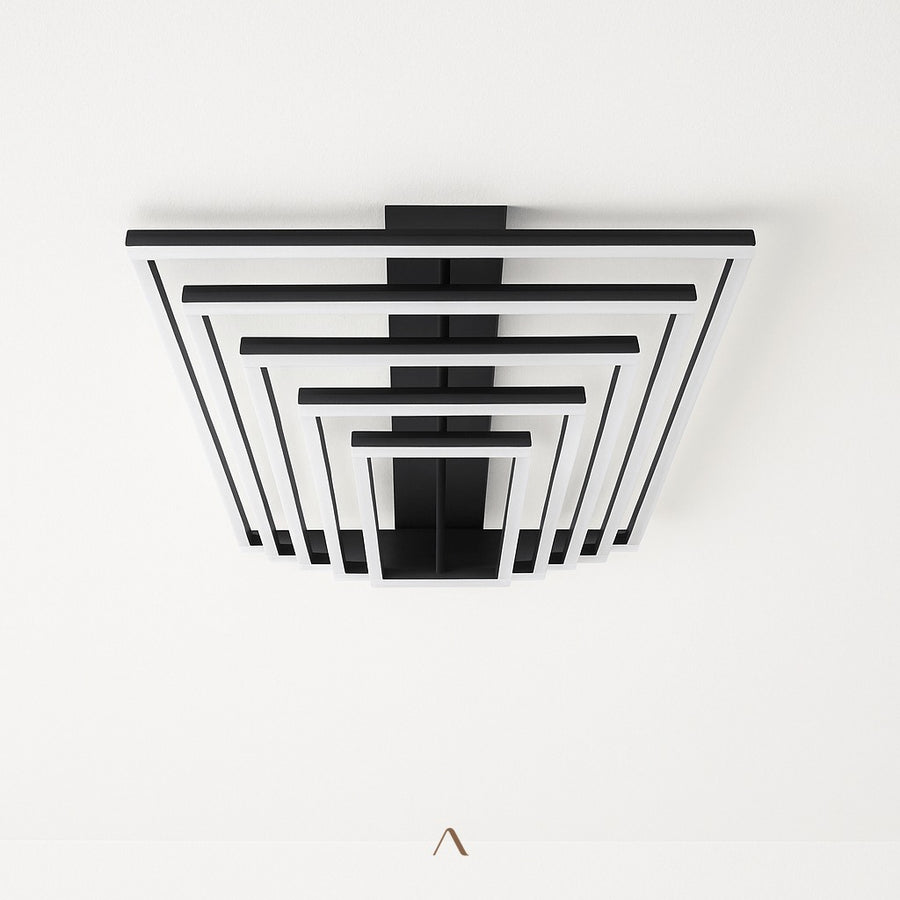

Brodenbach Ceiling Light

Brodenbach Ceiling Light

Rectangular light, glare handled from above
navadecor.co Revised 07 · 2026
Nava Decor · Brodenbach Ceiling Light
Ceiling Light · 3 sizes
ND-BROD-SMA — ND-BROD-LAR

The Brodenbach Ceiling Light is a rectangular aluminium panel that mounts close to the ceiling and fills a room with soft, even light. The frosted acrylic diffuser handles the integrated LED, so what reaches the room is a gentle wash rather than a point source. Three sizes from 90 x 50 cm to 105 x 85 cm; optional remote controls brightness and colour temperature.

Specifications · Shared
Material
Aluminum, Acrylic
Finish
Black
Light source
Integrated LED (50,000 hrs)
Sizes
Small L 90 x W 50 x H 16 cm / Medium L 105 x W 70 x H 20 cm / Large L 105 x W 85 x H 26 cm
Output
123W (13,530 lm) / 186W (20,460 lm) / 260W (28,600 lm)
Weight
6 / 8 / 10 kg
Voltage
90–260V
Installation
Ceiling or wall mount, hardwired
Sloped ceiling
Compatible
Dimmable
Optional
Emitting Color
Warm White (3000K)Neutral White (4000K)Cool White (6000K)Trichromatic (No Remote 3000K/4000K/6000K)Remote Control (Dimmable + 3000K to 6000K)
Key features
  • Frosted acrylic diffuser — no glare, even room coverage
  • Three sizes for small, medium, and large rooms
  • High output: 123–260W, up to 28,600 lm in the largest size
  • Optional remote: adjust brightness and colour temperature
  • Mounts to ceiling or wall · integrated LED, 50,000 hrs
For specifier use Submittal
Job name
Fixture type
Qty
Notes
navadecor.co · hey@navadecor.co Page 2 of 2 · Rev 07.2026 Specifications subject to change without notice
